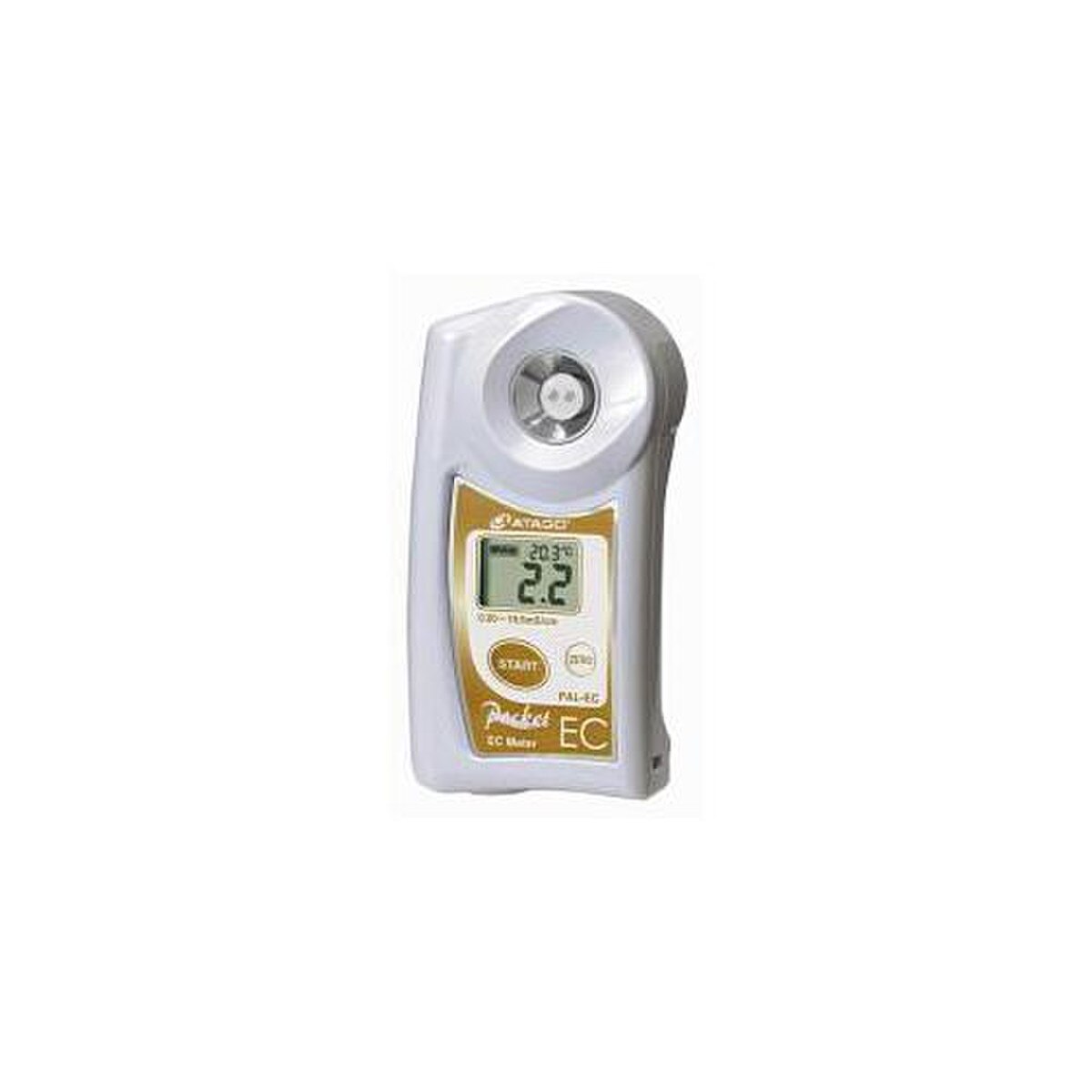

PAL-EC Handheld Digital EC Meter (Electronic Conductivity)
Images are for representation only. Actual product may differ in size, color or options.
ATAGO Handheld Digital EC Meter (Electronic Conductivity Method)
0.00 to 19.9mS/cm, 0 to 9950 ppm (TDS)
The Pocket EC Meter PAL-EC is capable of measurements with just 0.6ml of sample.
The unit also features dual scales of electrical conductivity (mS/cm) and TDS (Total Dissolved Solids) (ppm).
The PAL-EC is ideal for use in a wide variety of fields such as Agriculture (soil and hydroponics) or Industrial (waste water or cleaning solutions).
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
0.00 to 19.9mS/cm, 0 to 9950 ppm (TDS)
The Pocket EC Meter PAL-EC is capable of measurements with just 0.6ml of sample.
The unit also features dual scales of electrical conductivity (mS/cm) and TDS (Total Dissolved Solids) (ppm).
The PAL-EC is ideal for use in a wide variety of fields such as Agriculture (soil and hydroponics) or Industrial (waste water or cleaning solutions).
| Model | PAL-EC | Cat.No. | 4331 |
| Scale | Electric Conductivity Method TDS Temperature | Measurement Range | Electric Conductivity Method : 0.00 to 19.9mS/cm TDS : 0 to 9950 ppm Temperature : 5.0 to 100? |
| Resolution | Electric Conductivity Method : 0.01 mS/cm(0.00 to 1.99mS/cm) 2.0 to 19.9 mS/cm(0.1 mS/cm) TDS : 5ppm(0 to 995ppm) 50ppm(1000 to 9950ppm) Temperature : 0.1? | ||
| Measurement Accuracy | Electric Conductivity Method : ±0.04mS/cm(0.20 to 1.99mS/cm) ±0.4mS/cm(2.0 to 19.9mS/cm) TDS : ±20ppm(100 to 995ppm) ±200ppm(1000 to 9950ppm) (at 25?) Temperature : ±1? | ||
International Protection class  | IP 65 | Calibration | 12.9mS/cm |
| Temperature compensation range | 10.0 to 40.0? | Ambient Temperature | 10 to 40? |
| Sample Volume | At least 0.6ml | Measurement Time | Approx. 3 seconds |
| Power Supply | Two AAA alkaline batteries | Battery Life | Approx. 8,000 measurements (when using alkaline batteries) |
| Dimensions & Weight | 55(W)×31(D)×109(H)mm, 100g | ||
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
| Product Type: | Conductivity |
| Brand: | ATAGO |
| Product Line: | PAL |
| Class: | Electrical |
| Grade: | Digital Pocket |
| Range: | 0.00 to 19.9mS/cm, TDS : 0 to 9950 ppm |
| Resolution: | 0.01 mS/cm（0.00 to 1.99mS/cm） 2.0 to 19.9 mS/cm（0.1 mS/cm） || TDS: 5ppm(0 to 995ppm) / 50ppm(1000 to 9950ppm) |
| Accuracy: | ±0.04mS/cm（0.20 to 1.99mS/cm） ±0.4mS/cm（2.0 to 19.9mS/cm）| TDS : ±20ppm(100 to 995ppm) ±200ppm(1000 to 9950ppm) |
| Temperature Range: | 5.0 to 100℃ |
| Temperature Resolution: | 0.1℃ |
| Temperature Accuracy: | ±1°C |
| Net Weight: | 100g (Main Unit only) |
| Overall Dimensions: | 55(W) x 31(D) x 109(H)mm |
| Includes: | Protective storage case, 2 x AAA Batteries, serialized Calibration Report certificate, and owner's manual. |
| Notes: | Sample Volume: At least 0.6 ml. Measurement Time 3 seconds. IP65 Dust-tight and Protected against water jets. |
Click Here to go to ATAGO web site for Instruction Manual pdf and/or Usage Instruction video.
 | Atago PAL series factory Calibration Report certificate examples.pdf |
