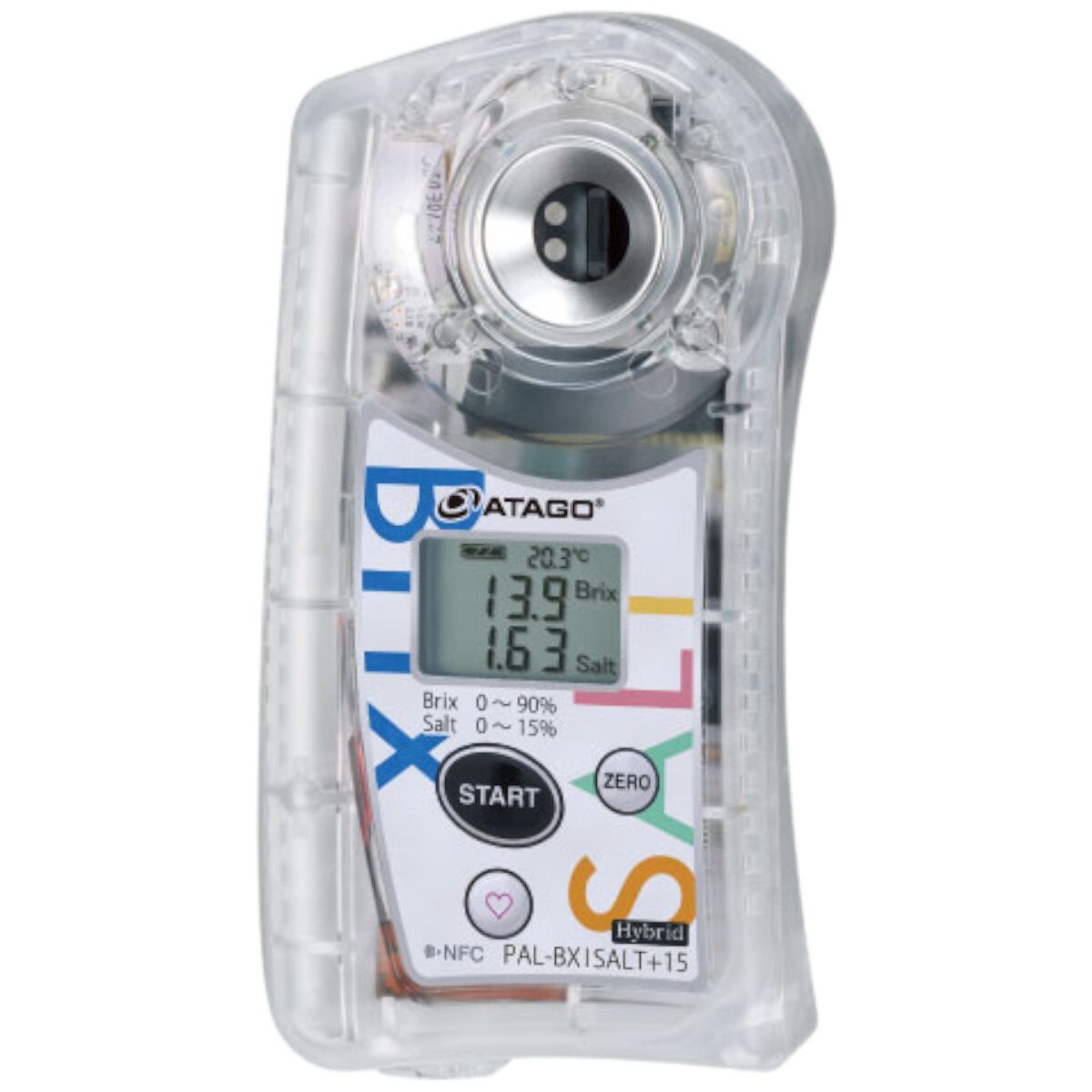

ATAGO® PAL‑BX | SALT+15 Digital Handheld Brix–Salt Meter

ATAGO® PAL‑BX | SALT+15 Digital Handheld Brix–Salt Meter

The ATAGO® PAL‑BX | SALT+15 is a hybrid refractometer and salt meter designed to measure both Brix (concentration) and salt content simultaneously. Using an optical prism for Brix and a titanium electrode for salt, it enables precise balance evaluation between sweetness and saltiness—critical for taste profiling in sauces, broths, dressings, marinades, and other concentrated foods. The PAL‑BX | SALT+15 eliminates the need for dilution in high‑Brix samples by allowing user‑defined salt scales up to 28.50%.

Key Features

• Simultaneous Brix and salt measurement
• Optical prism for Brix; titanium electrode for salt
• Salt measurement without dilution for high‑concentration samples
• User‑defined salt scales (up to 15 custom scales; up to 28.50% salt)
• Low Sodium Index calculation (Salt ÷ Brix)
• Fast 3‑second measurement
• IP65 water‑resistant; washable under running water
• NFC data output for smartphones, tablets, and PCs
• Backlight stays on for 30 seconds after button press
• Extended warranty available (1 year → 2 years with registration)

Technical Specifications

• Brix Range: 0.00 to 90.0%
• Brix Resolution: 0.1%
• Brix Accuracy: ±0.2%
• Salt Range (Std): 0.00 to 15.00% (g/100g)
• Salt Resolution: 0.01%
• Salt Accuracy:
  • Displayed value ±0.05% (0.00–0.99%)
  • Relative precision ±5% (1.00–9.99%)
  • Relative precision ±10% (10.00–15.00%)
• User Salt Scales: Up to 15 custom scales; up to 28.50% salt
• Measurement Time: Approx. 3 seconds
• Temperature Range: 10 to 100 °C
• Temperature Resolution: 0.1 °C
• Temperature Accuracy: ±1 °C
• Automatic Temperature Compensation: 10 to 100 °C
• Ambient Operating Range: 10 to 40 °C
• Protection Class: IP65 water‑resistant
• Output: NFC (ISO/IEC 14443 Type A)
• Data Output Fields: Date/Time, Brix, Salt, Low Sodium Index, Temperature
• Power Supply: 2 × AAA alkaline batteries
• Dimensions: 55(W) × 31(D) × 109(H) mm
• Weight: 100 g (main unit only)

Included Accessories

• Main unit
• Calibration report
• AAA batteries (×2)

Applications

• Sauces, dressings, marinades, broths, soups
• High‑Brix foods where dilution is normally required
• Food manufacturing and taste profiling
• Quality control for processed foods
• R&D for product formulation and flavor balancing

The PAL‑BX | SALT+15 is engineered for professionals who need fast, accurate, and dilution‑free Brix and salt measurement in concentrated foods. Its hybrid sensor design, user‑defined scales, and NFC data logging make it a powerful tool for food labs, production lines, and culinary R&D.
