ATA-AP-300 Type B
Images are for representation only. Actual product may differ in size, color or options.

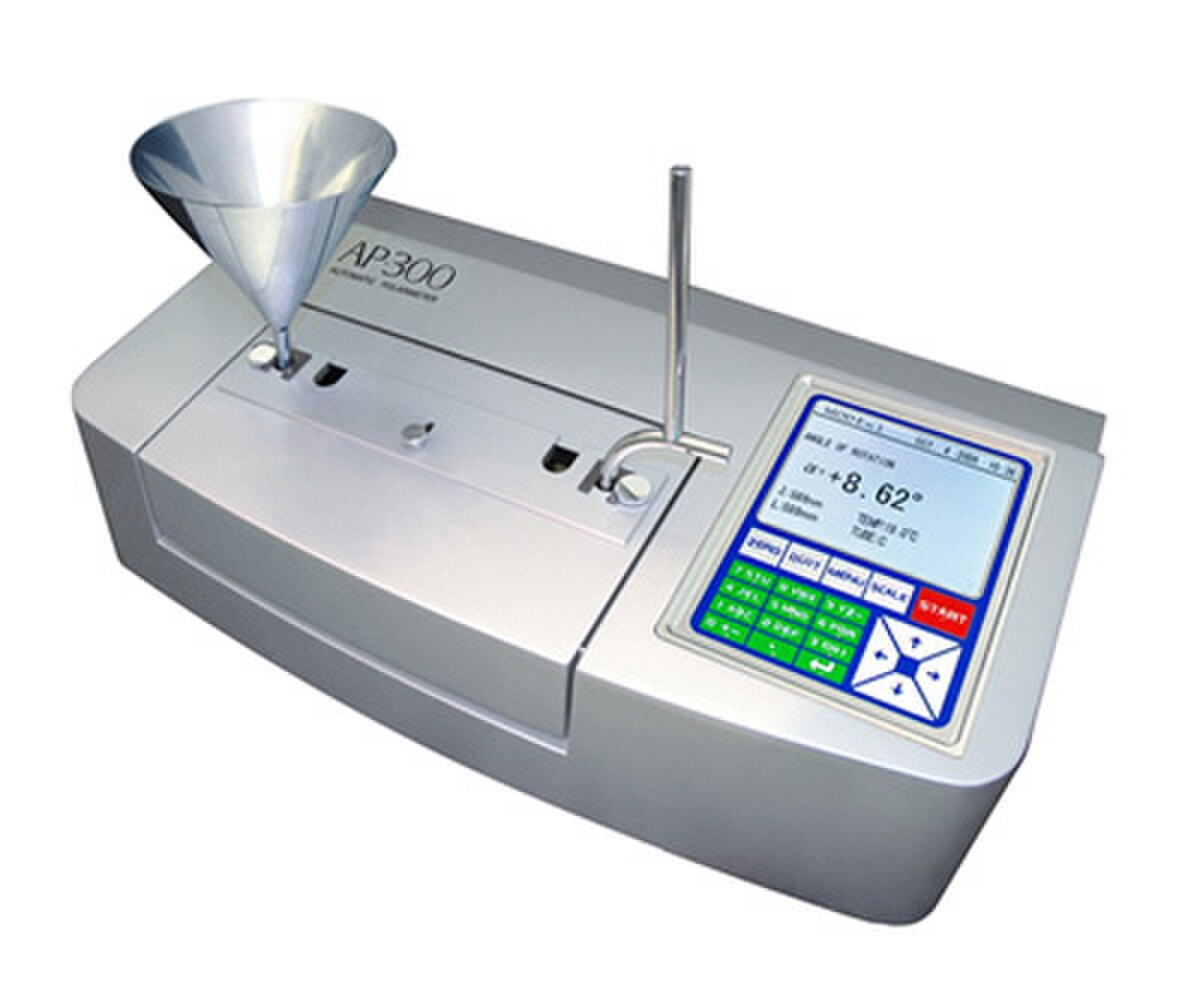

Atago 5297 AP-300 Type B Fully Automatic Digital Polarimeter.
Angle of Rotation -89.99° to +89.99°, ±0.01° (minimum scale 0.01°)
International Standard Sugar Scale -130° to +130°, ±0.03°Z (minimum scale 0.01°Z on a standard quartz plate)
Measurement Accuracy:
Angle of Rotation
Displayed value ±0.01° (- 35.00 to + 35.00° )
Relative precision ±0.2% (- 35.01° to - 89.99° , + 35.01° to + 89.99° )
International Sugar Scale
Displayed value ±0.03°Z (- 101.00 to + 101.00° )
Relative precision ±0.2% (- 130.00 to - 101.01°Z , + 101.01 to + 130.00°Z )
(Checked by reading a standard Quartz Plate)
ATC (Auto Temperature Compensation): 18.0 to 30.0°C (International Sugar Scale).
The AP-300 Type B is used in pharmaceutical, perfume, cosmetic, industrial, chemical, and food factories for measuring the optical angle of rotation, concentration and purity of optically active substances. In addition, the built in International Sugar Scale and purity scale is used widely in sugar factories.
Included: 100mm observation tube and 200mm observation tube, unjacketed flow tube with funnel (200mm approx. volume 15ml).
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
Angle of Rotation -89.99° to +89.99°, ±0.01° (minimum scale 0.01°)
International Standard Sugar Scale -130° to +130°, ±0.03°Z (minimum scale 0.01°Z on a standard quartz plate)
Measurement Accuracy:
Angle of Rotation
Displayed value ±0.01° (- 35.00 to + 35.00° )
Relative precision ±0.2% (- 35.01° to - 89.99° , + 35.01° to + 89.99° )
International Sugar Scale
Displayed value ±0.03°Z (- 101.00 to + 101.00° )
Relative precision ±0.2% (- 130.00 to - 101.01°Z , + 101.01 to + 130.00°Z )
(Checked by reading a standard Quartz Plate)
ATC (Auto Temperature Compensation): 18.0 to 30.0°C (International Sugar Scale).
The AP-300 Type B is used in pharmaceutical, perfume, cosmetic, industrial, chemical, and food factories for measuring the optical angle of rotation, concentration and purity of optically active substances. In addition, the built in International Sugar Scale and purity scale is used widely in sugar factories.
Included: 100mm observation tube and 200mm observation tube, unjacketed flow tube with funnel (200mm approx. volume 15ml).
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
Product Type: | Polarimeter |
Brand: | ATAGO |
Class: | Digital Fully Automatic Polarimeter |
