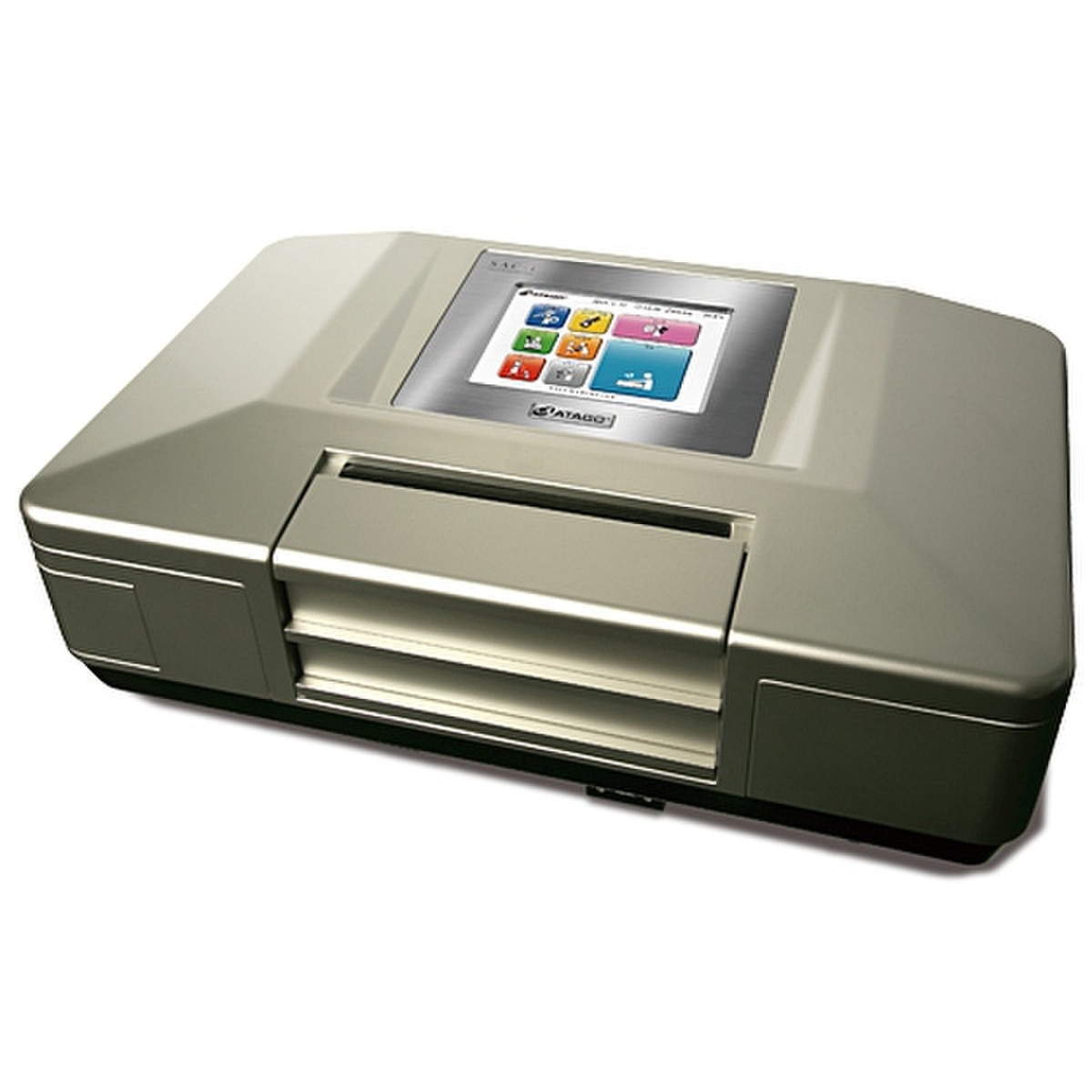

SAC-i Dual Wavelength Automatic Polarimeter / Saccharimeter SAC-i 589/882
Images are for representation only. Actual product may differ in size, color or options.
Automatic Polarimeter / Saccharimeter SAC-i 589/882
High Performance Sugar Analysis, Now Easier Than Ever.
It has become common that dark color - raw sugar samples are measured at 882nm without decolorization treatment.
SAC-i 589/882 can measure samples at both 589nm and 882nm by changing the optical units.
High Performance Sugar Analysis, Now Easier Than Ever.
It has become common that dark color - raw sugar samples are measured at 882nm without decolorization treatment.
SAC-i 589/882 can measure samples at both 589nm and 882nm by changing the optical units.
| Model | SAC-i 589/882 |
|---|---|
| Cat.No. | 5952 |
| Measurement Readings | Angle of Rotation International Sugar Scale Specific Rotation Concentration Purity User scale Angle of Rotation (Temperature Compensation of Quartz Plate) Temperature (°C / °F) |
| Range | Angle of Rotation:-89.9999 to +90.0000° and -360.0000 to +360.0000° International Sugar Scale : -259.0000 to +259.0000°Z |
| Resolution | Angle of Rotation : 0.0001° International Sugar Scale : 0.0001°Z |
| Accuracy | 589nm ①Angle of Rotation：±0.005° （-45.0 to +45.0°） ②International Sugar Scale：±0.015°Z （-130.0 to +130.0°Z） Other ranges ①Angle of Rotation：±0.010° ②International Sugar Scale：±0.030°Z * Checked by reading a standard quartz plate 882nm ①Angle of Rotation：±0.005° （-19.3 to +19.3°） ②International Sugar Scale：±0.015°Z （-130.0 to +130.0 °Z） Other ranges ①Angle of Rotation：±0.010° ②International Sugar Scale：±0.070°Z * Checked by reading a standard quartz plate |
| Temperature compensation | 10 to 40℃ |
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) 882nm（infrared nearby） |
| Dimensions & Weight | 60×36.5×21cm, 20.0kg |
| Included Accessories | PolariSoft(Software) |
| Output | Digital Printer DP-AD (sold separately), Output method : RS-232C (9 pin D-Sub male connector) USB flash drive and PC - USB |
| Product Type: | Polarimeter / Saccharimeter |
| Brand: | ATAGO |
| Warranty: | two (2) year limited warranty against manufacturer’s defects |
