PAL-EASY ACIDF5 Kit Pocket Acidity Meter (Multi-Fruit) PAL-EASY ACID F5 Master Kit
Images are for representation only. Actual product may differ in size, color or options.
ATAGO Pocket Acidity Meter (Multi-Fruit) PAL-EASY ACID F5 Master Kit
This Master Kit is specifically for measuring citrus, grapes&wine, tomatoes, strawberries and includes everything you need for easy, precise and accurate measurements.

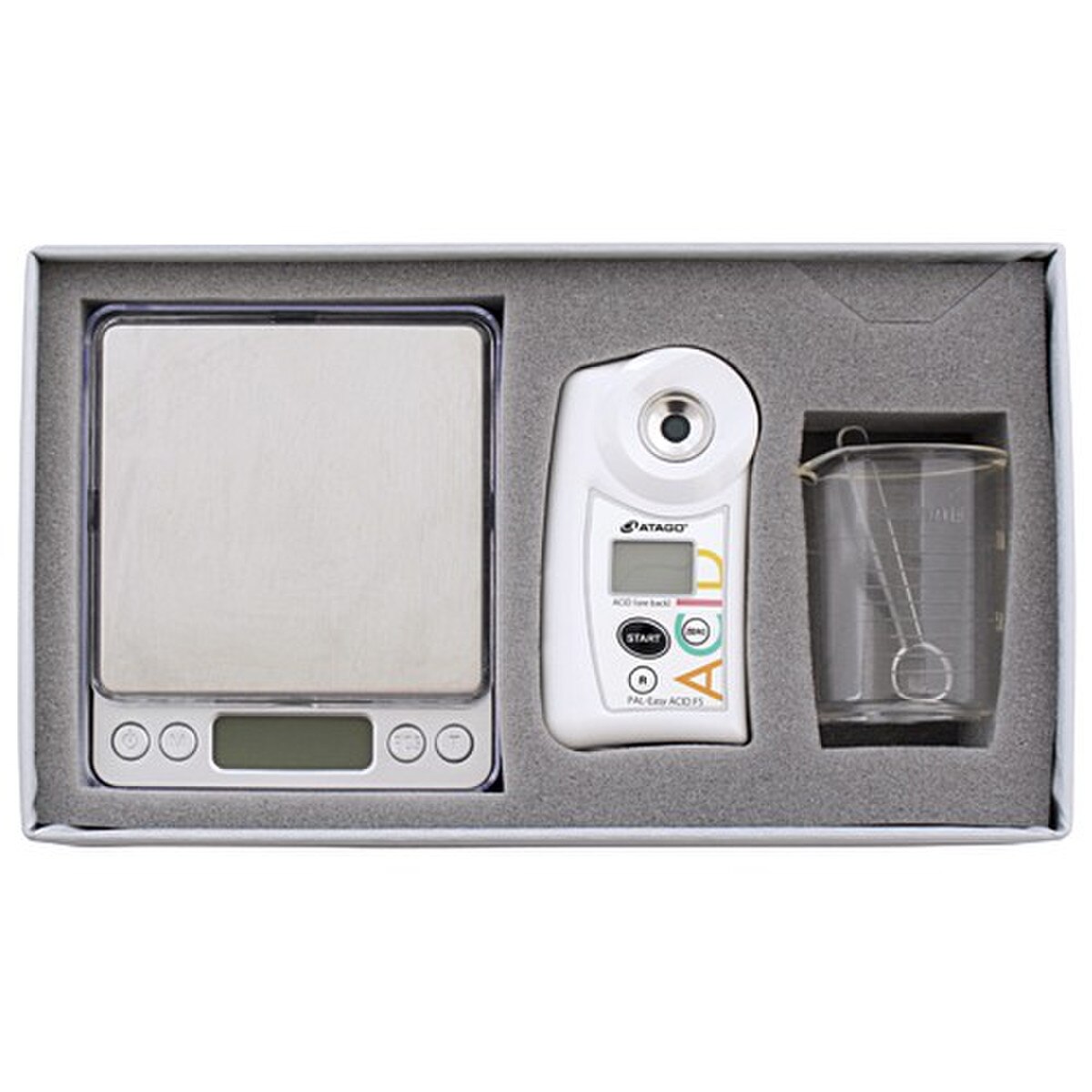

The Master Kit comes complete with a scale, 1 beaker, and 1 measuring spoon
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
This Master Kit is specifically for measuring citrus, grapes&wine, tomatoes, strawberries and includes everything you need for easy, precise and accurate measurements.
The Master Kit comes complete with a scale, 1 beaker, and 1 measuring spoon
Specifications
| Model | PAL-Easy ACID F5 Master Kit |
|---|---|
| Cat.No. | 7300 |
| Scale | Acid |
| Measurement Range | Acid : 01 (Citrus) 0.10~4.00% : 02 (Grape & Wine) 0.10~4.00% : 03 (Tomato) 0.10~3.00% : 04 (Strawberry) 0.10~3.50% : 05 (Blueberry) 0.10~4.00% 10.0 to 40.0°C |
| Resolution | Acid : 0.01% 0.1°C |
| Measurement Accuracy | Acid : ±0.10% (0.10 to 1.00%) Relative precision ±10% (1.01 to 4.00%) ±1°C |
| Sample temperature | 10 to 40° |
| Ambient Temperature | 10 to 40° |
| Sample Volume | 0.2mL |
| Measurement Time | Approx. 3 seconds |
| Backlight | The backlight stays on for 30 seconds after any button is pressed. |
| Power Supply | 2 × AAA Batteries |
| International Protection Class | IP65 |
| Dimensions & Weight | 55(W)×31(D)×109(H)mm, 100g (Main Unit only) |
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
| Product Type: | Digital Pocket Acidity Meter Kit |
| Brand: | ATAGO |
| Product Line: | PAL |
| Class: | Multi Fruit |
| Range: | Acid : 01 (Citrus) 0.10～4.00%, 02 (Grape & Wine) 0.10～4.00%, 03 (Tomato) 0.10～3.00%, 04 (Strawberry) 0.10～3.50%, 05 (Blueberry) 0.10～4.00% |
| Capacity: | 0.2 ml (sample volume) |
| Resolution: | Acid 0.01% |
| Accuracy: | Acid ±0.10% (0.10 to 1.00%), ±010% of reading (1.01 to 4.00%) |
| Temperature Range: | 10.0 to 40.0°C |
| Temperature Resolution: | 0.1°C |
| Temperature Accuracy: | ±1°C |
| ATC: | Yes |
| Unit Size: | 1 |
| Net Weight: | 100g |
| Overall Dimensions: | 55 x 31 x 109mm |
| Includes: | a scale, 1 beaker, and 1 measuring spoon |
| Notes: | Sample Temperature: 10 to 40°C |
Click Here to go to ATAGO web site for Instruction Manual pdf and/or Usage Instruction video.
 | Atago PAL-BX-ACID Pocket Brix-Acidity Meter Datasheet.pdf |
| Atago PAL series factory Calibration Report certificate examples.pdf |
