Benchmark Scientific PlateFuge Microplate Centrifuge
Images are for representation only. Actual product may differ in size, color or options.

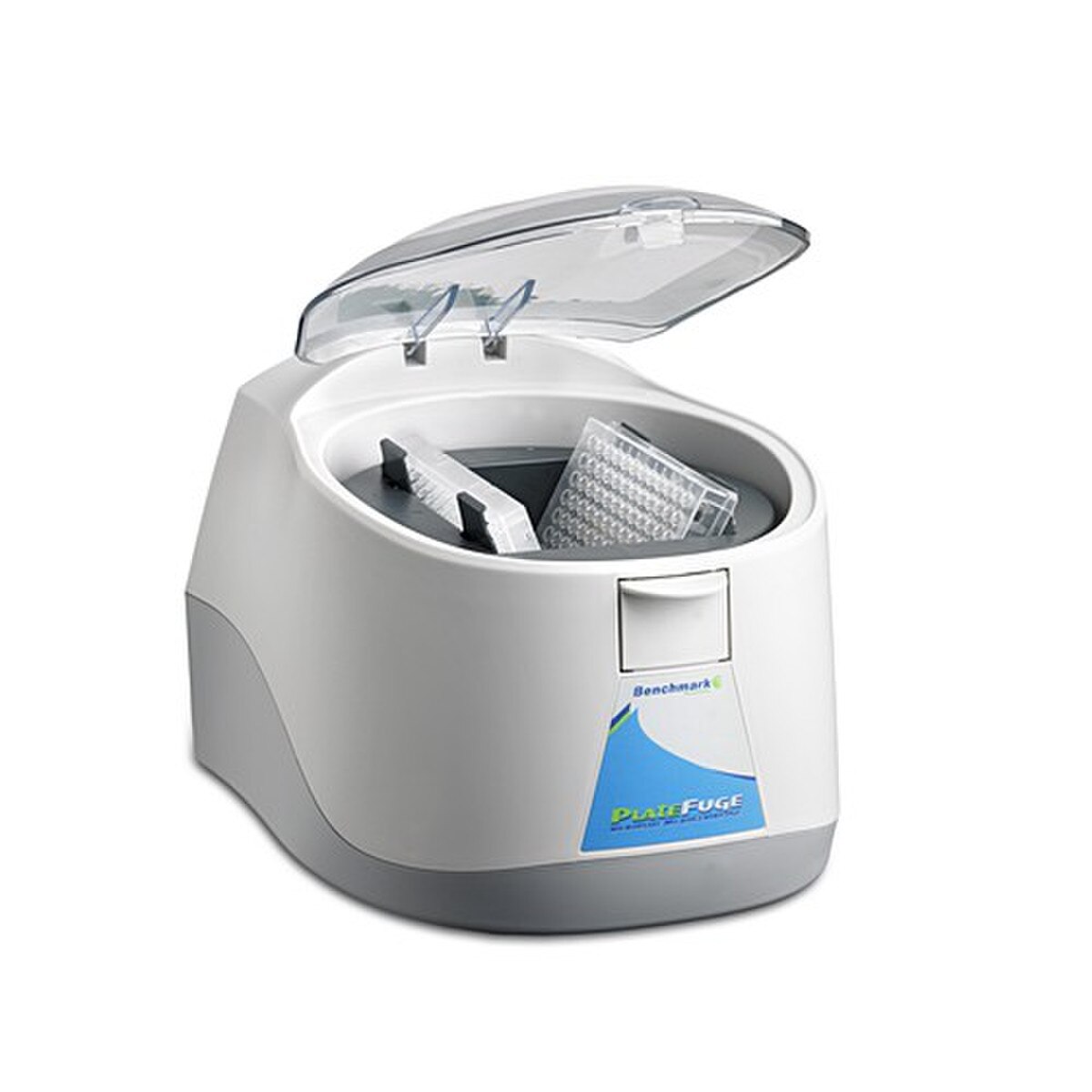

PlateFuge Microplate Centrifuge
Benchmark's PlateFuge, is the first "mini" sized centrifuge with a swing out rotor for microplates. Centrifugation of plates before PCR ensures all reactants are in the bottom of the wells for optimized concentrations and imporved yields.

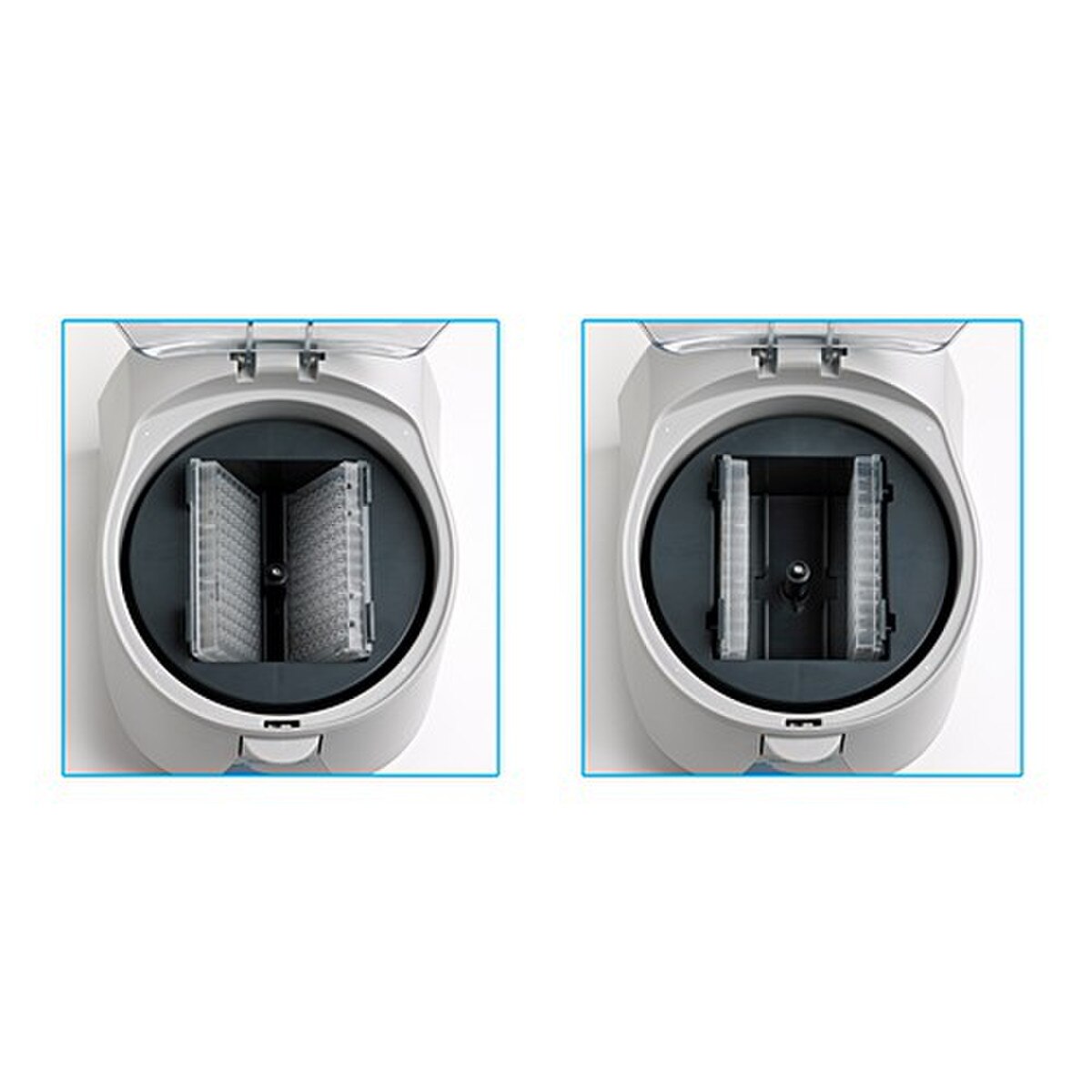

In spite of its remarkably small footprint (9 x 10in.), the PlateFuge includes a uniquely designed, swing out rotor (patent pending) capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be insterted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force "swings" the plates into a horizontal position. Any droplets on thw walls of the plate, quickly concentrate into the well bottoms.
With a g-force of over 400 xg, most samples can be spun down in less than 20 seconds. To end a run, simply open the lide and the automatic electronic brake brings the rotor to a quick, smooth stop in about 7 seconds. Plates can then be easily removed from the rotor.
Benchmark's PlateFuge, is the first "mini" sized centrifuge with a swing out rotor for microplates. Centrifugation of plates before PCR ensures all reactants are in the bottom of the wells for optimized concentrations and imporved yields.
In spite of its remarkably small footprint (9 x 10in.), the PlateFuge includes a uniquely designed, swing out rotor (patent pending) capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be insterted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force "swings" the plates into a horizontal position. Any droplets on thw walls of the plate, quickly concentrate into the well bottoms.
With a g-force of over 400 xg, most samples can be spun down in less than 20 seconds. To end a run, simply open the lide and the automatic electronic brake brings the rotor to a quick, smooth stop in about 7 seconds. Plates can then be easily removed from the rotor.
Product Type: | Centrifuge |
Brand: | Benchmark Scientific |
Capacity: | 2 x 2 PCR plates, 2 x microtiter plates, 24 x 0.2 mL PCR strips |
Speed: | 2100 rpm / 400 xg |
Power Supply: | 100 to 240 VAC, 50-60Hz |
Net Weight: | 9 lbs. |
Overall Dimensions: | 9.2 x 10.2 x 7.75 in |
