Benchmark Scientific 4°C to 65°C D1000 Hand-Held Homogenizer
Images are for representation only. Actual product may differ in size, color or options.

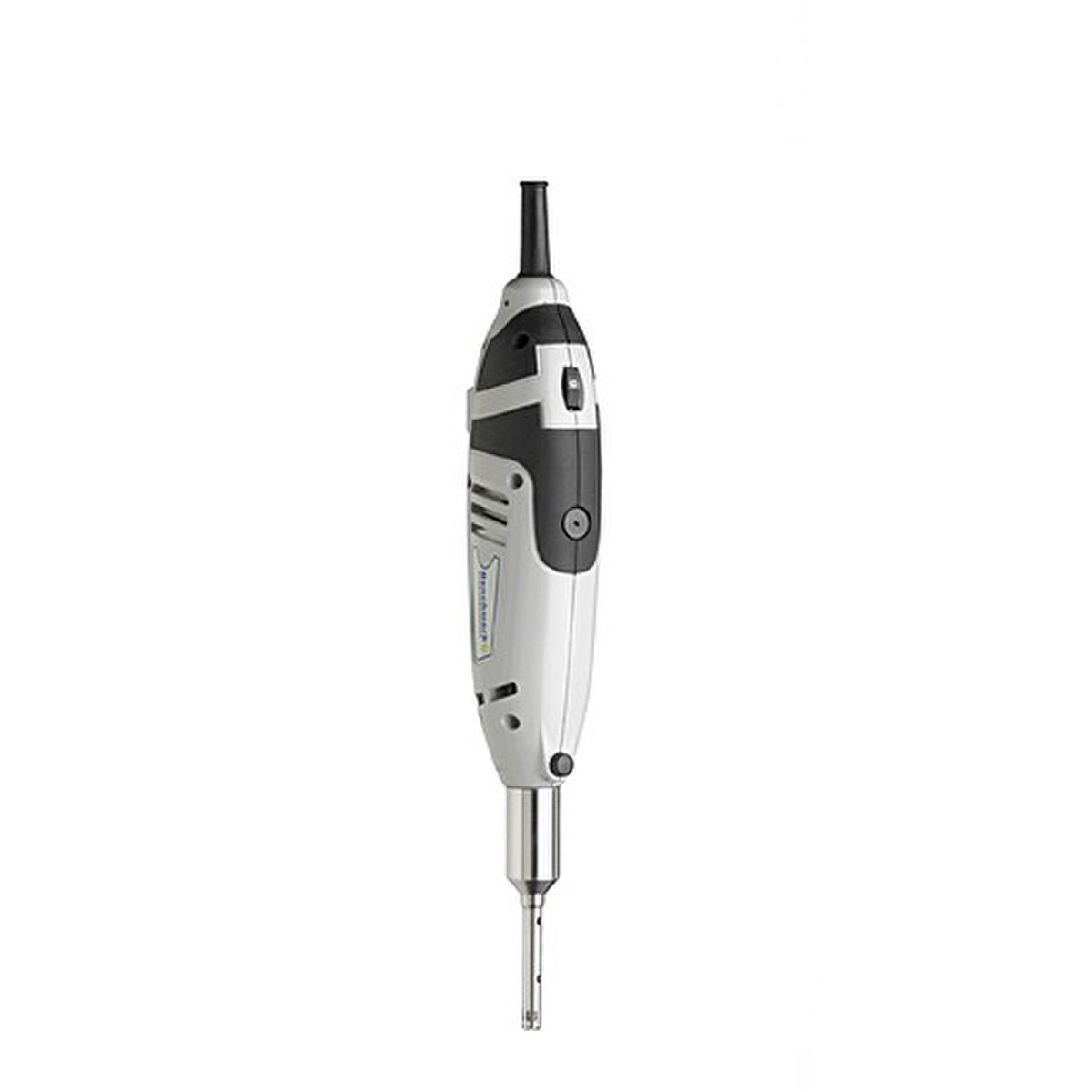

D1000 Hand-Held HomogenizerBenchmark's new hand-held homogenizer, the D1000, is designed to rapidly homogenize, emulsify, suspend and disrupt biological samples. Ideal for use with microtubes, the homogenizer works well with samples from 0.1ml to 250ml (depending upon the generator probe used).
The D1000 is a rotor stator homogenizer, and works by drawing the sample, in liquid, into the generator probe with the variable speed rotor, and then forcing it out through the slots in the stator. This achieves highly efficient mechanical shearing of the sample. As the sample is repeatedly drawn up and forced through the stator, additional shearing takes place. Most samples are completely homogenized in 30 seconds or less.
A powerful, 130W motor drives the rotor at speeds from 8,500 to 30,000 rpm. Speed is adjustable in six steps to meet sample processing needs. A separate on/off switch allows the homogenizer to be left at the appropriate setting.

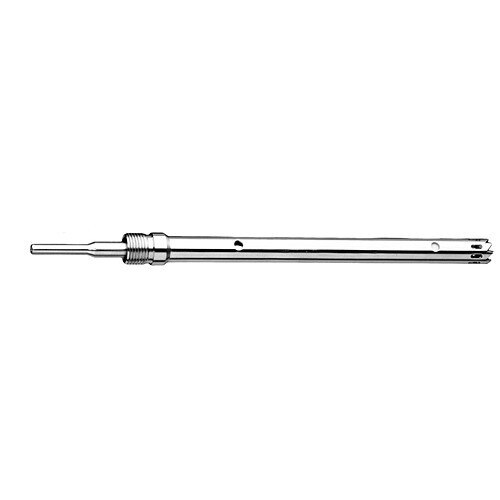

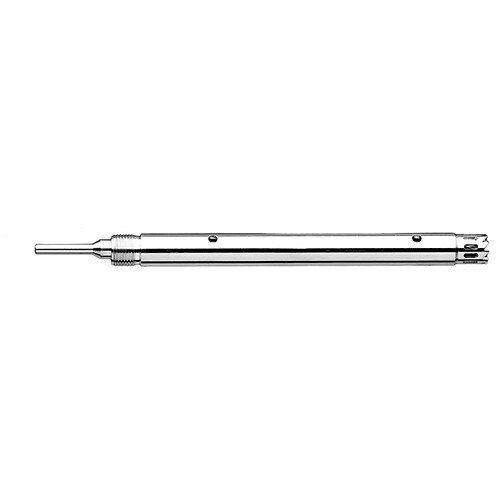

Generator probes are available in four sizes-5mm and 7mm diameter probes, 50mm in length for use with samples in microtubes, 19mm x 115mm for use with 15 and 50ml tubes, and 14mm x 130mm, for 50ml tubes and vessels up to 250ml. The unit is supplied with one each of the 5mm and 7mm generator probes. All the generator probes are made of stainless steel and can be sterilized by autoclaving.
The D1000 is a rotor stator homogenizer, and works by drawing the sample, in liquid, into the generator probe with the variable speed rotor, and then forcing it out through the slots in the stator. This achieves highly efficient mechanical shearing of the sample. As the sample is repeatedly drawn up and forced through the stator, additional shearing takes place. Most samples are completely homogenized in 30 seconds or less.
A powerful, 130W motor drives the rotor at speeds from 8,500 to 30,000 rpm. Speed is adjustable in six steps to meet sample processing needs. A separate on/off switch allows the homogenizer to be left at the appropriate setting.
Generator probes are available in four sizes-5mm and 7mm diameter probes, 50mm in length for use with samples in microtubes, 19mm x 115mm for use with 15 and 50ml tubes, and 14mm x 130mm, for 50ml tubes and vessels up to 250ml. The unit is supplied with one each of the 5mm and 7mm generator probes. All the generator probes are made of stainless steel and can be sterilized by autoclaving.
| Product Type: | Hand-Held Homogenizer |
| Brand: | Benchmark Scientific |
| Capacity: | 0.1 to 250 ml |
| Temperature Range: | 4°C to 65°C |
| Speed: | 8,500 to 30,000 rpm |
| Power Supply: | 115 VAC, 60Hz |
| Net Weight: | 1.35 lbs. |
| Overall Dimensions: | 4.5 x 5.8 x 22.5 cm |
| Includes: | One 5mm (Flat Bottom) generator probe and one 7mm (Saw Tooth) generator probe |
