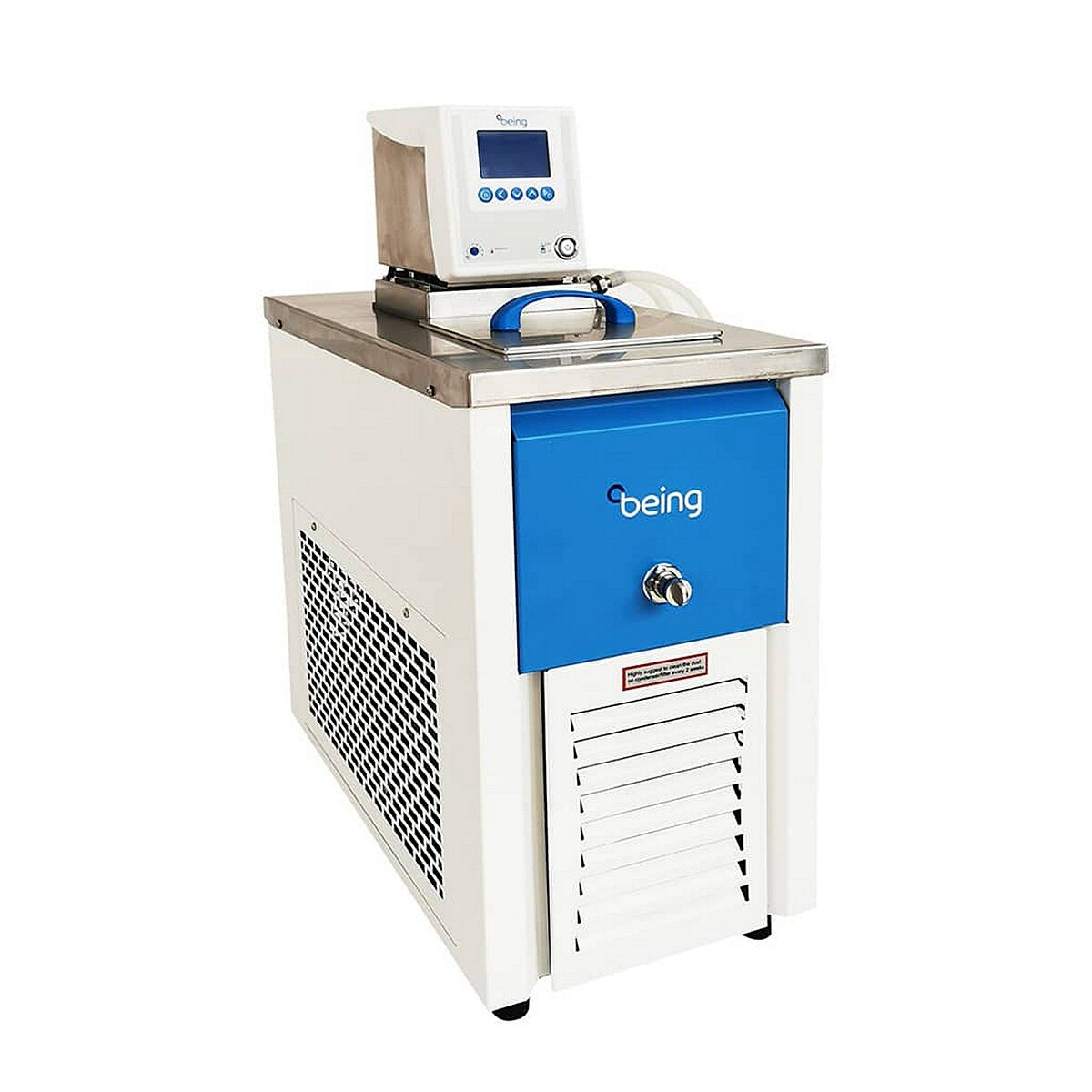

Being BPC-05A, 4.5L, Circulating Bath; 120VAC
Images are for representation only. Actual product may differ in size, color or options.
BEING BPC-05A, 4.5L, Circulating Bath has a temperature range of -20C to 150C, an LCD PID Controller with a 1 min. to 99 hours 59 min. timer and many safety features, and a corrosion-resistant stainless-steel chamber and heat exchanger for maintenance-free operation. Max. Cooling Capacity: 560W @0C; Max. Flow Rate: 8 L/min; 120VAC.
The BEING BPC Series circulating baths provide precise and constant temperature and auxiliary heating ideal for temperature control of electronic components, material test, chemical synthesis and process in academic, industrial and mining enterprises, and scientific research departments.

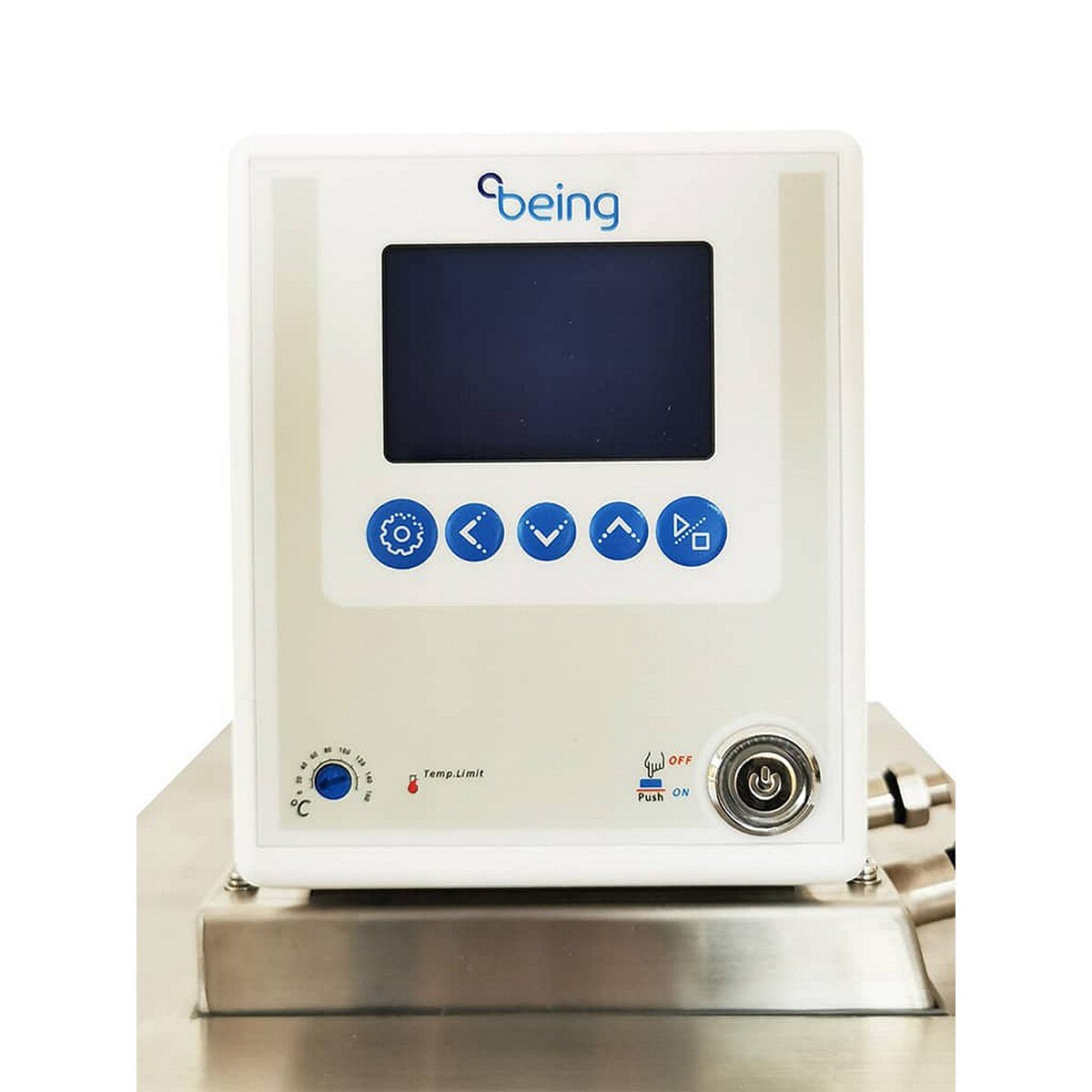

The intelligent controller has a bright, easy-to-understand LCD that shows the recirculating chiller’s parameters on a single screen, and the pushbuttons allow quick temperature and time setting. It simplifies complicated testing procedures by creating up to 7 multistep programs with 9 steps each, and time can be programmed from 1 minute to 99 hours 59 minutes.
The BEING BPC Series circulating baths include:
• easy switching between internal and external circulating modes,
• an interface with external water baths,
• a corrosion-resistant stainless steel bath chamber and heater for maintenance-free operation,
• a stainless steel bottom plate prevents direct contact by accessories and tubes with the heating element and sensors,
• a drain valve to quickly and easily empty the bath chamber,
• rounded chamber corners for easy cleaning, and
• a variety of safety features, including overcurrent and overload protection, and auto start, to name a few.
The BEING BPC Series circulating baths are designed, manufactured, and tested to the DIN 12880-2007 standard and utilize R134A refrigerant.
They are available in 4.5 L and 13 L capacity with a temperature range from -20C to 150C and come with a 2-year warranty.
The BEING BPC Series circulating baths provide precise and constant temperature and auxiliary heating ideal for temperature control of electronic components, material test, chemical synthesis and process in academic, industrial and mining enterprises, and scientific research departments.
The intelligent controller has a bright, easy-to-understand LCD that shows the recirculating chiller’s parameters on a single screen, and the pushbuttons allow quick temperature and time setting. It simplifies complicated testing procedures by creating up to 7 multistep programs with 9 steps each, and time can be programmed from 1 minute to 99 hours 59 minutes.
The BEING BPC Series circulating baths include:
• easy switching between internal and external circulating modes,
• an interface with external water baths,
• a corrosion-resistant stainless steel bath chamber and heater for maintenance-free operation,
• a stainless steel bottom plate prevents direct contact by accessories and tubes with the heating element and sensors,
• a drain valve to quickly and easily empty the bath chamber,
• rounded chamber corners for easy cleaning, and
• a variety of safety features, including overcurrent and overload protection, and auto start, to name a few.
The BEING BPC Series circulating baths are designed, manufactured, and tested to the DIN 12880-2007 standard and utilize R134A refrigerant.
They are available in 4.5 L and 13 L capacity with a temperature range from -20C to 150C and come with a 2-year warranty.
| Product Type: | Circulating Bath |
| Brand: | BEING Scientific |
| Net Weight: | 59.5 lb (26.8 kg) |
| Packaging: | Wooden Crate |
| Overall Dimensions: | 290x520x710mm |
