BNG-BRC-03
Images are for representation only. Actual product may differ in size, color or options.

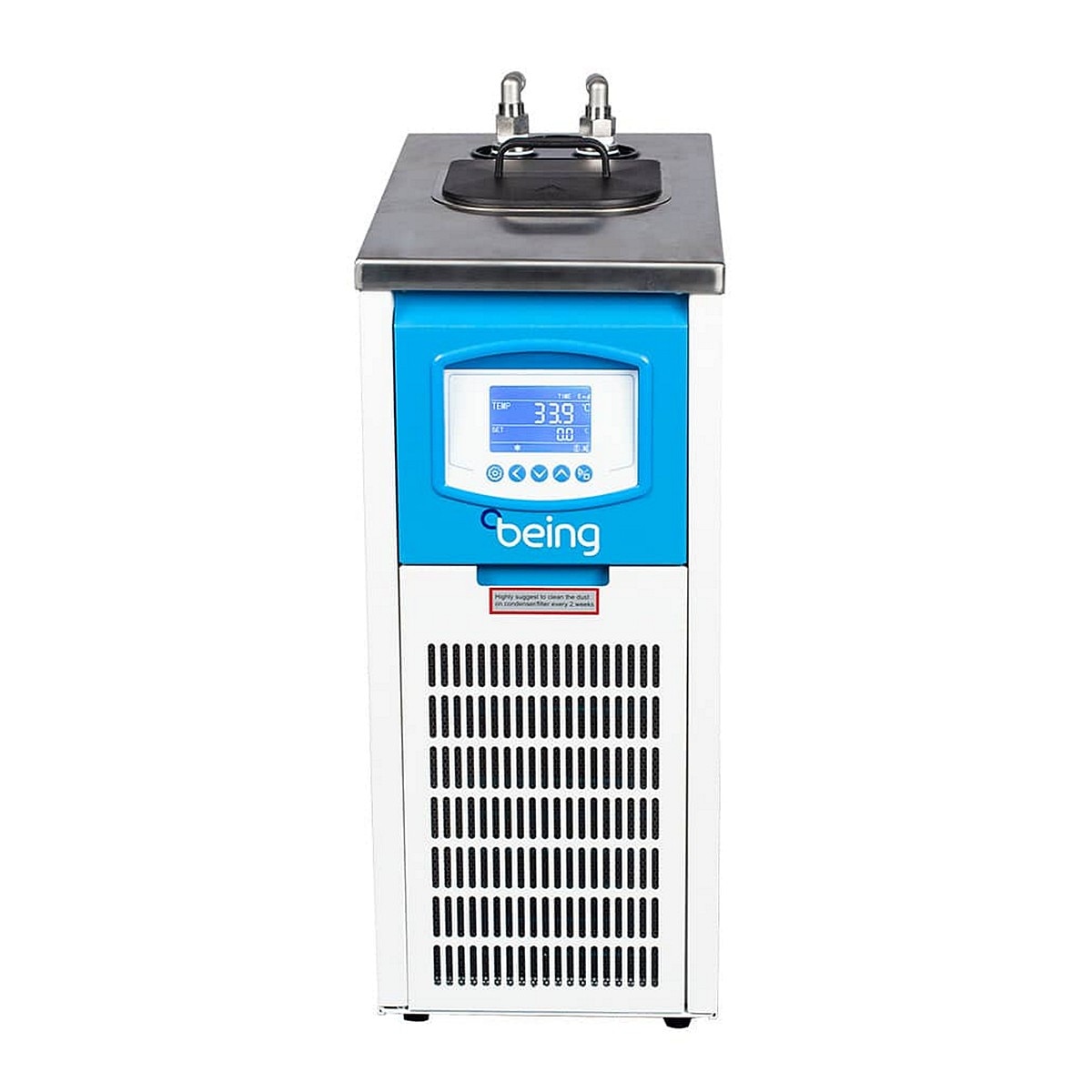

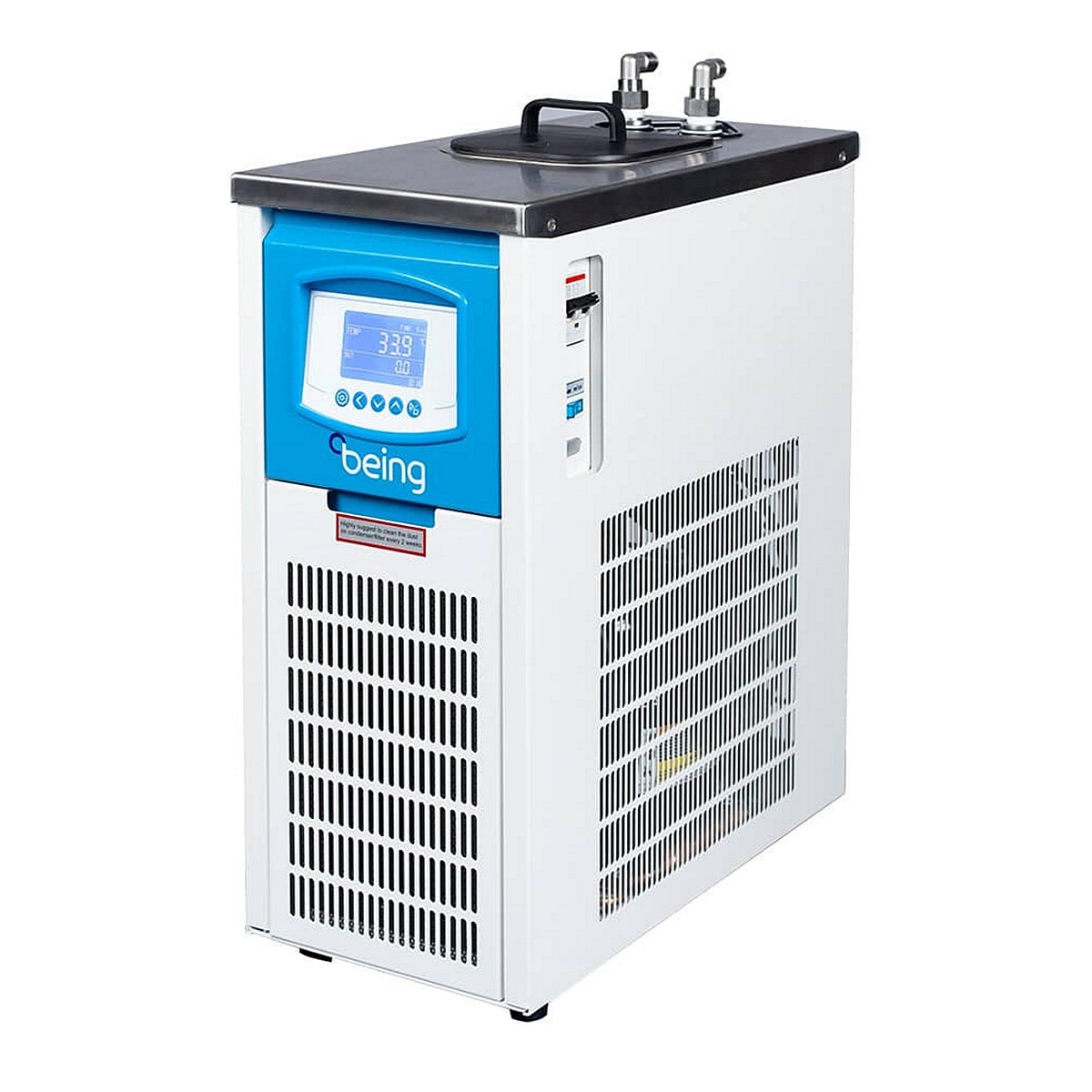

BEING BRC-03, 5L, Recirculating Chiller has a temperature range of -20C to 20C, an LCD PID Controller with a 1 min. to 99 hours 59 min. timer and many safety features, a corrosion-resistant stainless steel chamber and heat exchanger for maintenance-free operation, and a DC Magnetic Drive Vortex pump. Max. Cooling Capacity: 580W @20C; Max. Flow Rate: 6 L/min; Max. Pump Head: 9 meters; Max. Pump Pressure: 13 psi / 90 kPa; 115VAC.
The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.

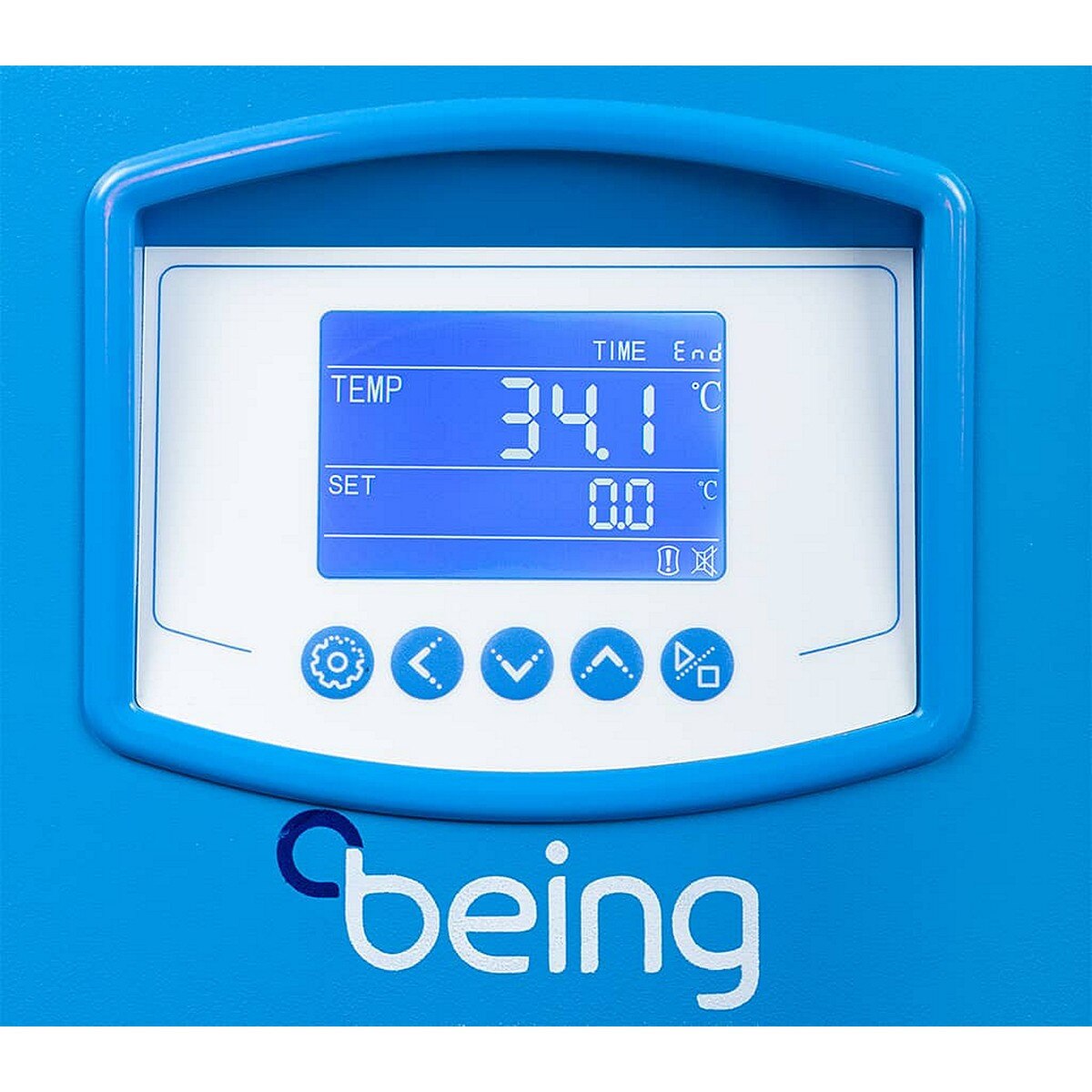

The intelligent controller has a bright, easy-to-understand LCD that shows the recirculating chiller’s parameters on a single screen, and the pushbuttons allow quick temperature and time setting. It simplifies complicated testing procedures by creating up to 7 multistep programs with 9 steps each, and time can be programmed from 1 minute to 99 hours 59 minutes.
The BEING BRC Series cooling/heating recirculating chillers include:
• an independent circulating pump switch for easy switching between internal and external circulating modes and cycle starting/stopping,

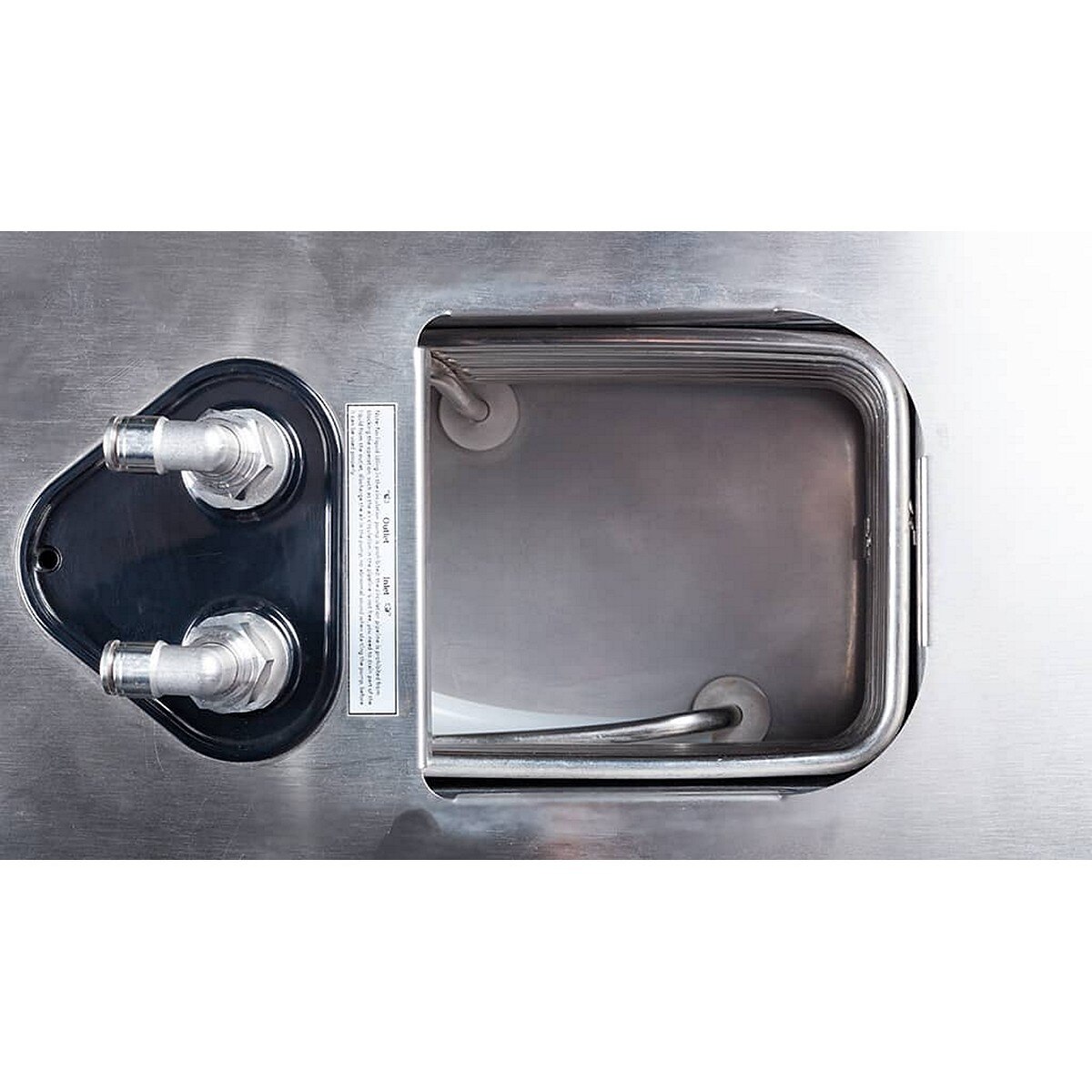

• a corrosion-resistant stainless steel bath chamber and heater for maintenance-free operation,
• rounded chamber corners for easy cleaning,
• a display window that allows the user to intuitively observe the tank’s liquid level, and
• a variety of safety features, including overcurrent and overload protection, and auto start, to name a few.
The BEING BRC Series cooling/heating recirculating chillers are designed, manufactured, and tested to the DIN 12880-2007 standard. They are available in 3 sizes from 3L, 10L, and 20L with a temperature range from -20C to 20C, and come with a 2-year warranty.
The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.
The intelligent controller has a bright, easy-to-understand LCD that shows the recirculating chiller’s parameters on a single screen, and the pushbuttons allow quick temperature and time setting. It simplifies complicated testing procedures by creating up to 7 multistep programs with 9 steps each, and time can be programmed from 1 minute to 99 hours 59 minutes.
The BEING BRC Series cooling/heating recirculating chillers include:
• an independent circulating pump switch for easy switching between internal and external circulating modes and cycle starting/stopping,
• a corrosion-resistant stainless steel bath chamber and heater for maintenance-free operation,
• rounded chamber corners for easy cleaning,
• a display window that allows the user to intuitively observe the tank’s liquid level, and
• a variety of safety features, including overcurrent and overload protection, and auto start, to name a few.
The BEING BRC Series cooling/heating recirculating chillers are designed, manufactured, and tested to the DIN 12880-2007 standard. They are available in 3 sizes from 3L, 10L, and 20L with a temperature range from -20C to 20C, and come with a 2-year warranty.
| Product Type: | Recirculating Chiller |
| Brand: | BEING Scientific |
| Net Weight: | 70.6 lb (31.8 kg) |
| Overall Dimensions: | 240x150x150mm |
