CPI-08117-96

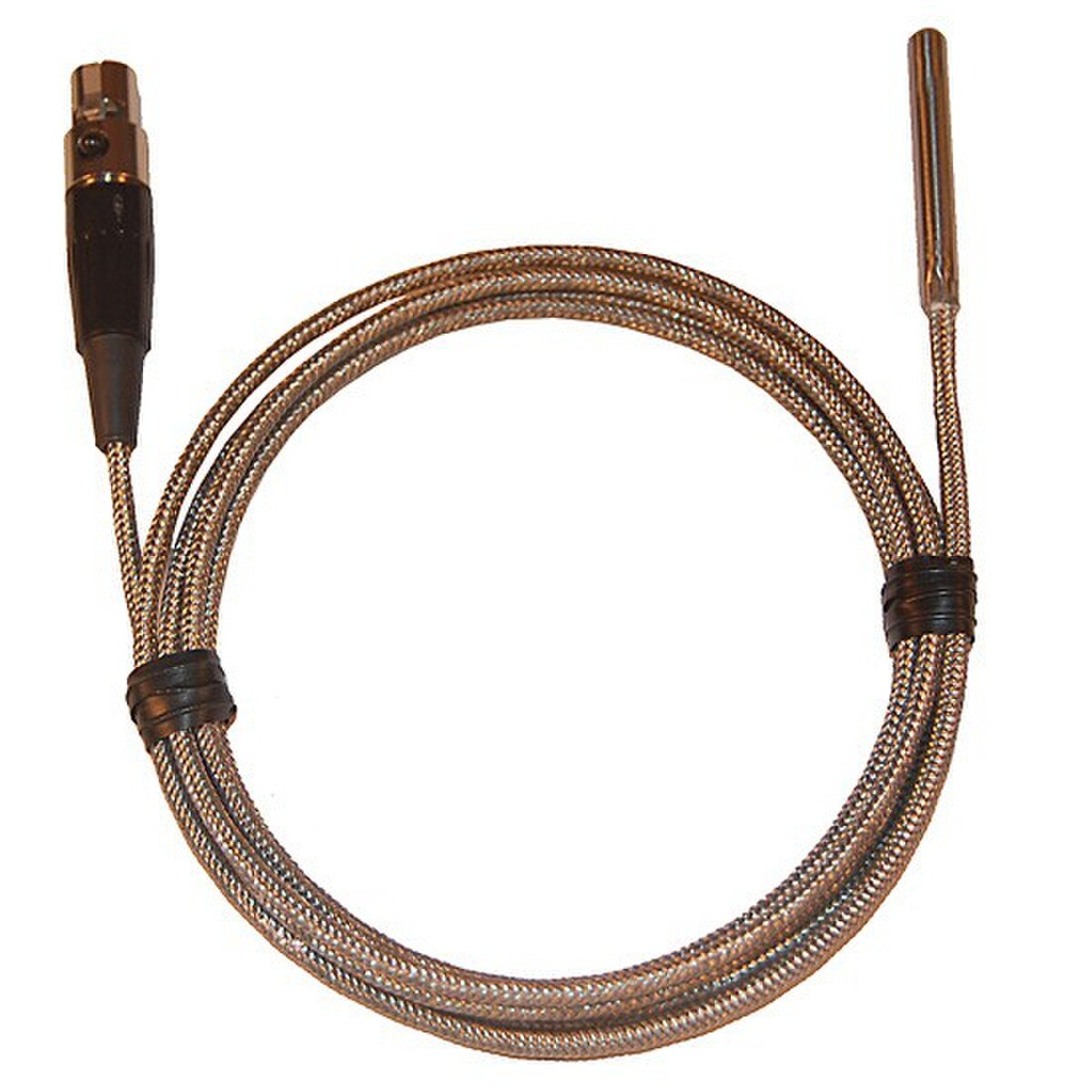

Digi-Sense RTD Probe, Compact, 1.5 inch L x 0.188 inch dia, 5 feet Braided Stainless Steel Cable, Digi-Sense 3-pin connector (each)

RTD Bendable Probes are Designed to Measure Temperature in a Confined Space. These 100? RTD probes are for use with long-term applications or unique environments.

• High temperature probe, three-wire element
• The first 3 inch of the probe tip are not to be bent
• Time constant : 1-3 seconds or greater

Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega/omega/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega.

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material.
