CPI-08369-70
Images are for representation only. Actual product may differ in size, color or options.

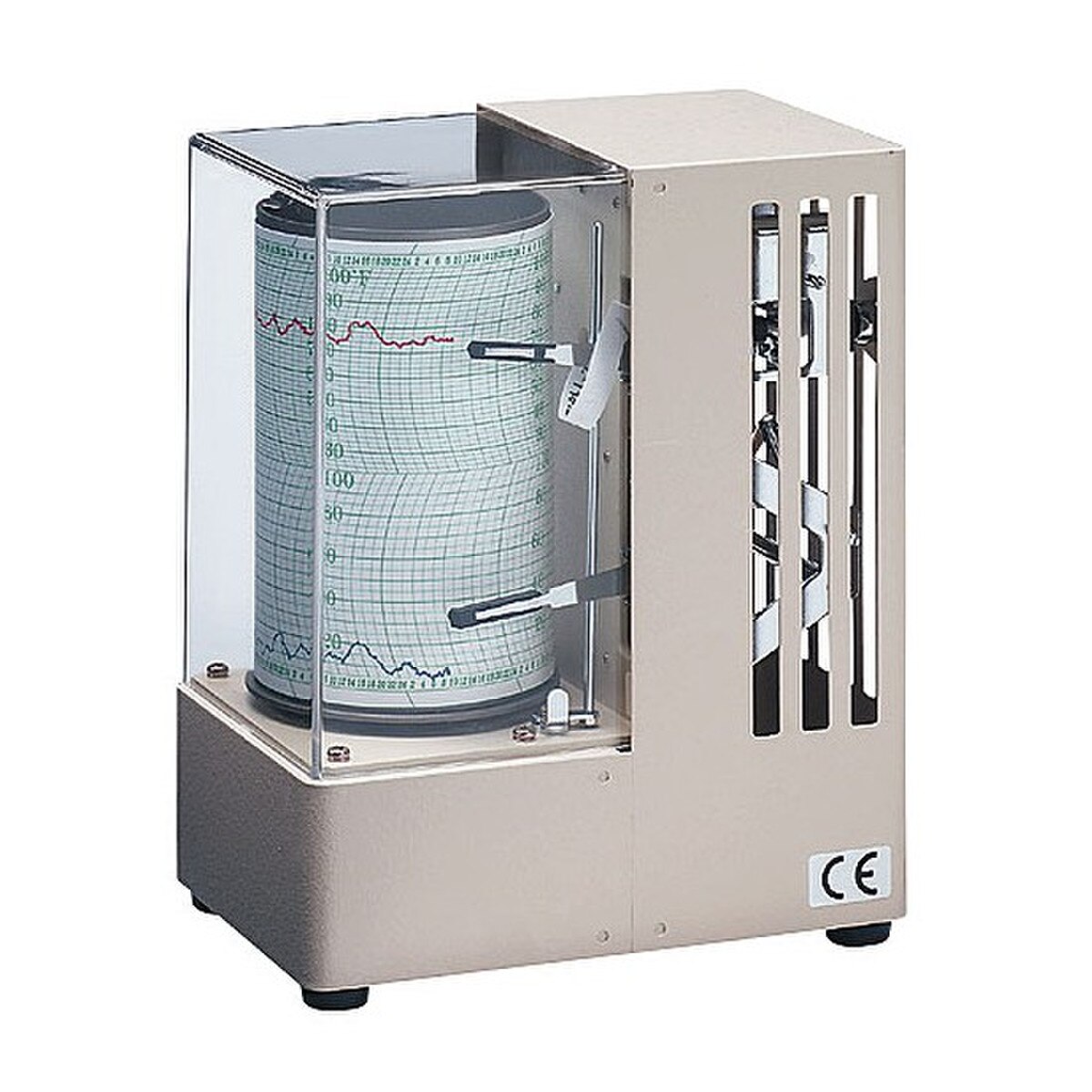

Cole-Parmer Economical Minidrum Hygrothermograph (each)
This hygrothermograph is so compact it will fit almost anywhere; measures just 6.00''W x 7.38''H x 3.88''D.
Hygrothermograph employs a quartz-controlled drive mechanism for constant speed; operates for 6 months on one AA battery (included). Chart rotation period is 7 days. Acrylic cover latches securely to protect paper and pens and is easily removable.
Feature a human hair bundle humidity sensor and an aged bimetallic strip temperature sensor. Response time is 15 minutes for 45% of reading.
Exposure to RH levels above 90% can cause a decrease of about 7-10% RH in readings over the entire range due to temporary elongation of the hair bundle. When exposed to humidity levels below 80%, hair bundle will return to normal in about three weeks.
This hygrothermograph is so compact it will fit almost anywhere; measures just 6.00''W x 7.38''H x 3.88''D.
Hygrothermograph employs a quartz-controlled drive mechanism for constant speed; operates for 6 months on one AA battery (included). Chart rotation period is 7 days. Acrylic cover latches securely to protect paper and pens and is easily removable.
Feature a human hair bundle humidity sensor and an aged bimetallic strip temperature sensor. Response time is 15 minutes for 45% of reading.
Exposure to RH levels above 90% can cause a decrease of about 7-10% RH in readings over the entire range due to temporary elongation of the hair bundle. When exposed to humidity levels below 80%, hair bundle will return to normal in about three weeks.
| Product Type: | Hygrothermograph |
| Brand: | Cole-Parmer |
| Class: | Economical Minidrum |
| Temperature Range: | 22 to 104°F (–6 to 40°C ) |
| Temperature Accuracy: | ±3.6°F (±2.0°C) |
| Humidity Range: | 5 to 90% RH |
| Humidity Resolution: | 5% RH |
| Humidity Accuracy: | ±5% from 10 to 90%; ±7% from 5 to 9% |
| Speed: | 7 day |
| Power Supply: | One AA battery |
| Includes: | AA battery (1), felt-tipped pens (1 red, 1 blue), and one 7-day sheet of chart paper. |
