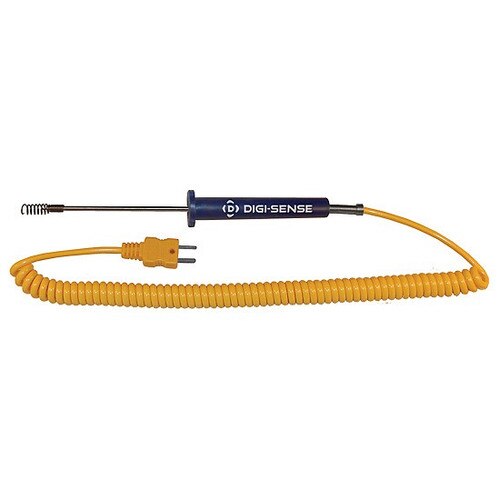

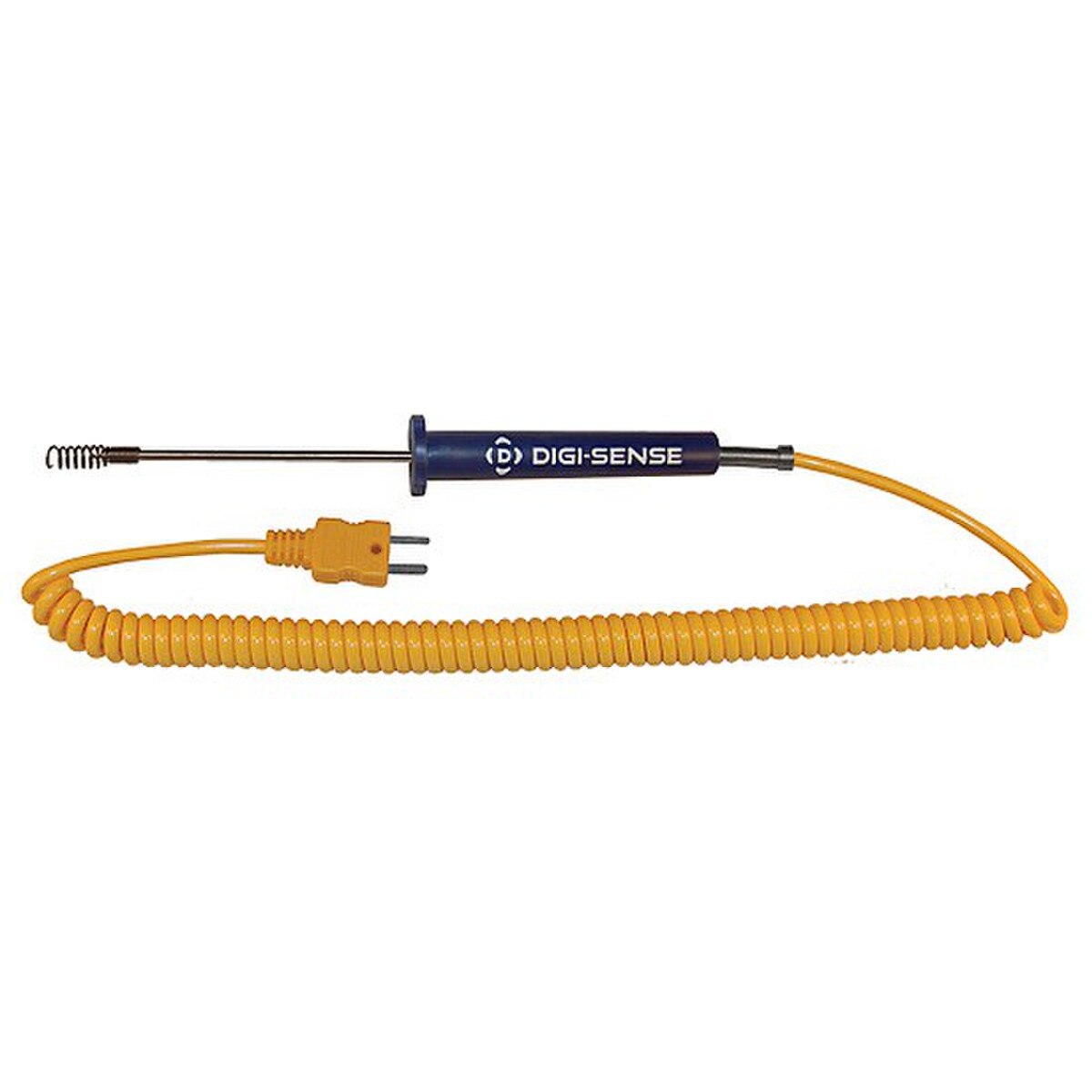

Cole-Parmer Compact Air /Gas Thermocouple Probe, 5" L, Exposed; Type K

(0)No Reviews yet
Images are for representation only. Actual product may differ in size, color or options.
Back
Digi-Sense Type-K Thermocouple Probe, Air/Gas, 5 inch L, Exposed Junction, 5 feet Cable, Mini ANSI Connector (each)

Economical Air/Gas probes are ideal for quick readings

  • Response Time: 1.75 seconds or greater
  • Exposed Junction is protected by a wire coil shield to minimize error from radiated heat
  • A compact light weight design allows for ease of use when space is limited but rugged enough for industrial environments
  • Each probe comes with color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. PVC handles are rated to 200°F (93°C); Mini Connectors are rated to 392°F (200°C).
Back
Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-K
Grade: Air/Gas
Material: 316 Stainless Steel with Stainless Steel Wire Coil Shield
Temperature Range: -250 to 450°F (-150 to 232°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 5 inches
Cable Length: 5 feet
Overall Dimensions: Sheath: 5 inch length
Notes: Exposed Junction
