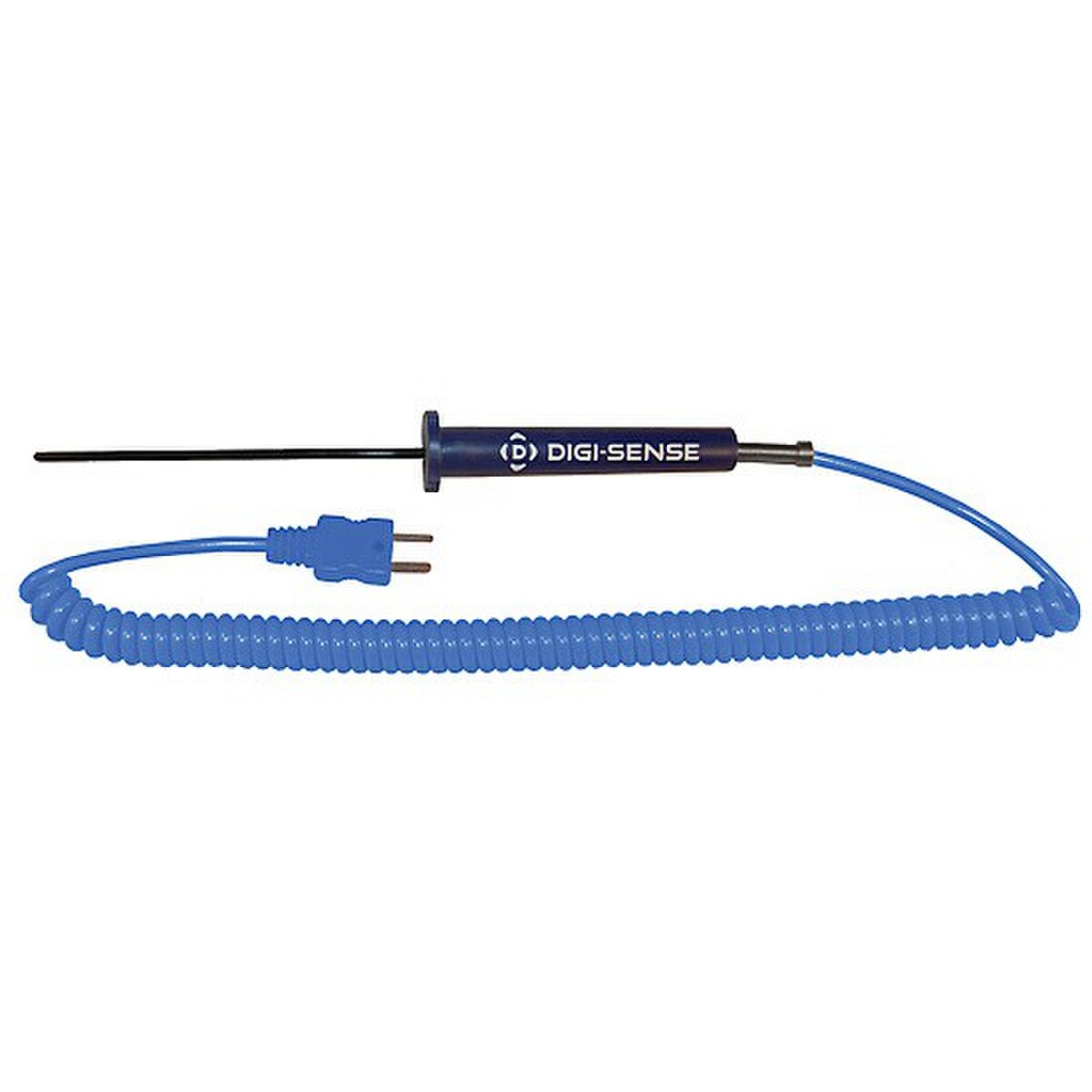

Cole-Parmer Compact PFA-Coated Thermocouple Probe, 4.5" L, Grounded; Type T

(0)No Reviews yet
Images are for representation only. Actual product may differ in size, color or options.
Back
Digi-Sense Type-T Thermocouple Probe, PFA-Coated Tip, 4.5 inch L x 0.145 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

General-Purpose Probes with PTFE-Coating Are Designed For Use with Corrosive Chemicals and Strong Acids

  • Response Time: 2 seconds or greater
  • Probe comes with PVC Handle
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. PVC handles are rated to 200°F (93°C); Mini Connectors are rated to 392°F (200°C).
Back
Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-T
Grade: PFA-Coated Tip
Material: 316 Stainless Steel with PFA Coating
Temperature Range: -328 to 400°F (-200 to 204°C)
Temperature Accuracy: ±3.6°F (2.0°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 4.5 inches x 0.145 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 4.5 inch length x 0.145 inch dia, Handle: 1.5 inches length
Notes: Grounded Junction
