Digi-Sense Type-J Pvc-Ins Probe; Epo x y-Coated Tip, Mini-Connector, Ungrounded , 10ft 20 -Gauge
Images are for representation only. Actual product may differ in size, color or options.

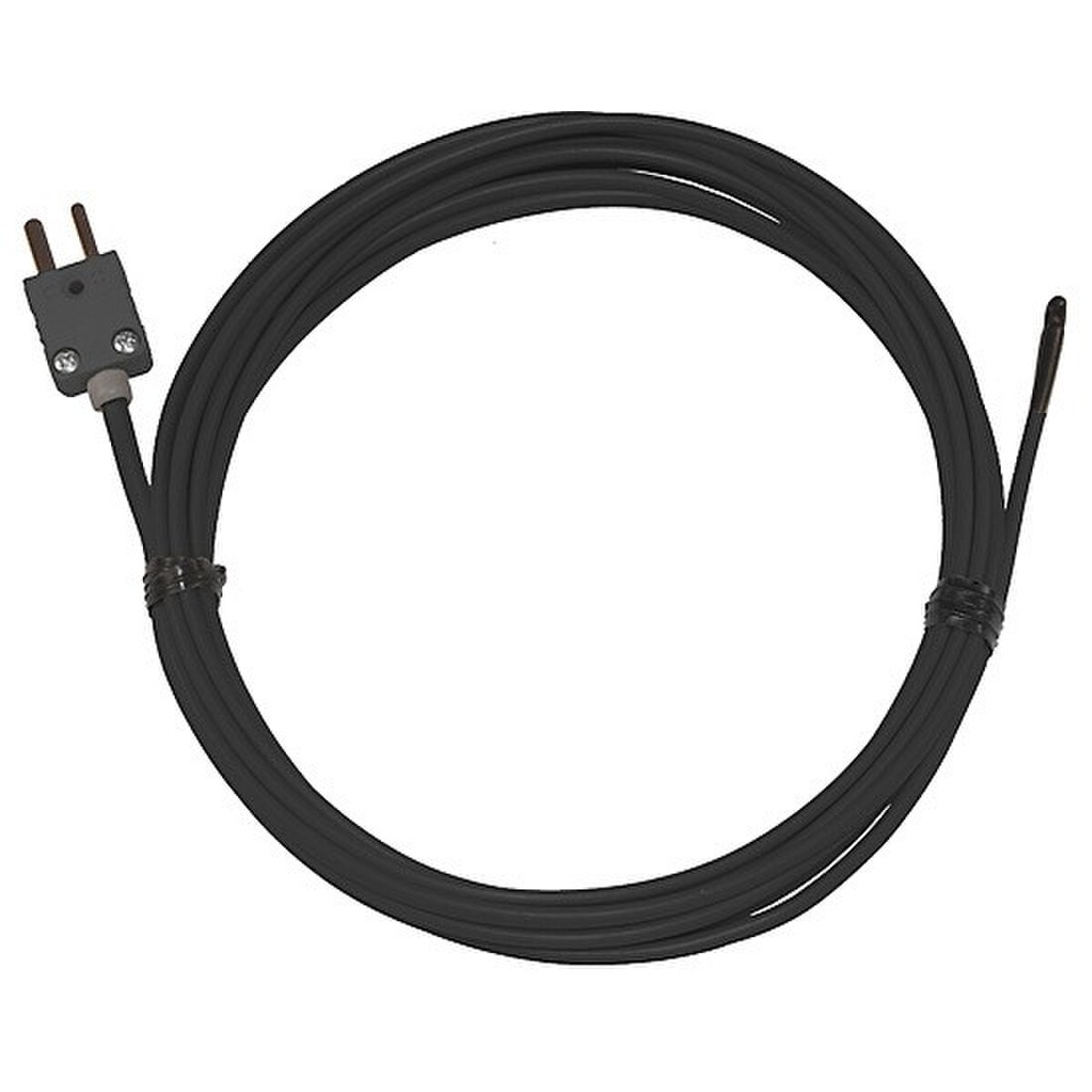

Digi-Sense Type-J Thermocouple Probe, PVC-Coated Tip, 120 inch L PVC Insulated, Ungrounded Junction, 20 Gauge, 10 feet Cable, Mini ANSI Connector (each)
PVC Insulation with epoxy-coated tip used for short term immersion
PVC Insulation with epoxy-coated tip used for short term immersion
- Epoxy-coated tip can be used for applications requiring an isolated junction
- Response Time: 1 seconds or greater
- All insulated-wire probes include straight insulated cable with no handle and feature ANSI color Mini-Connectors: type J-black
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-J |
| Grade: | PVC-Coated Tip |
| Material: | PVC Insulated Wire |
| Temperature Range: | 32 to 221°F (0 to 105°C) |
| Temperature Accuracy: | ±5.9°F (3.3°C), or ±0.4% of reading above 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 120 inches |
| Cable Length: | 10 feet |
| Unit Size: | 20 Ga |
| Packaging: | each |
| Overall Dimensions: | Sheath: 120 inch length |
| Notes: | Ungrounded Junction |
