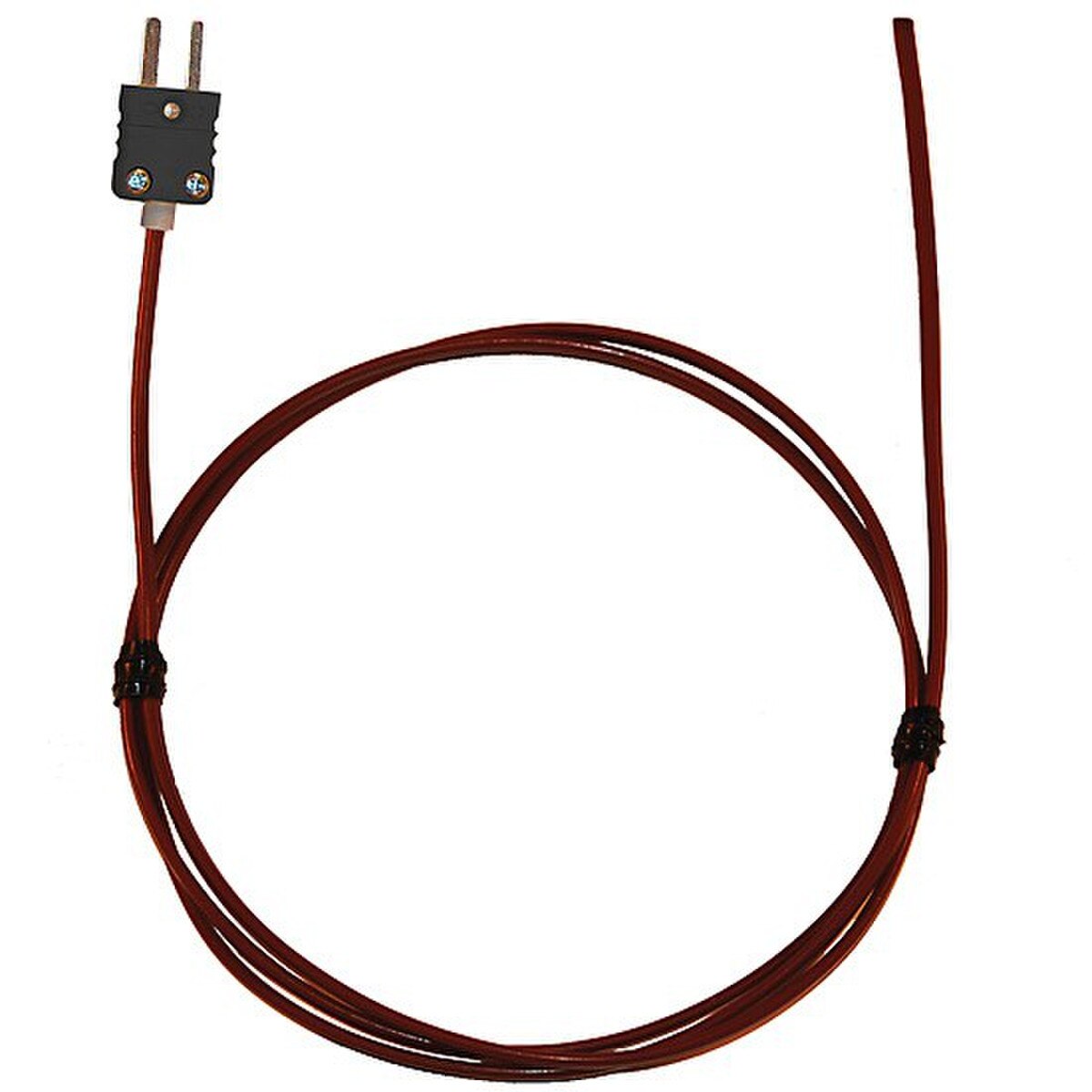

Digi-Sense Type-J, FEP-Insulated Probe, Coated Junct, Mini-Connector, Ungrounded, 10ft 24 -Gauge
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Type-J Thermocouple Probe, FEP-Coated Tip, 120 inch L FEP Insulated Wire, Ungrounded Junction, 20 Gauge, 10 feet Cable, Mini ANSI Connector (each)
Insulated with FEP-Sealed Junction Used for Long-Term Immersion in Semi-Caustic Environments
Insulated with FEP-Sealed Junction Used for Long-Term Immersion in Semi-Caustic Environments
- Each Probe is hermetically sealed and tested to 25psi
- Can be used for applications requiring an isolated junction
- Response Time: 0.75 seconds or greater
- All insulated-wire probes include straight insulated cable with no handle and feature ANSI color Mini-Connectors: type J-black
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-J |
| Grade: | FEP-Coated Tip |
| Material: | FEP Insulated Wire |
| Temperature Range: | 32 to 400°F (0 to 204°C) |
| Temperature Accuracy: | ±5.9°F (3.3°C), or ±0.4% of reading above 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 120 inches |
| Cable Length: | 10 feet |
| Unit Size: | 20 Ga |
| Packaging: | each |
| Overall Dimensions: | Sheath: 120 inch length |
| Notes: | Ungrounded Junction |
