Digi-Sense Type-K High-Temperature Ceramic Fiber-Insulated Probe Mini-Connector, Exposed 5ft 20 -Gauge
Images are for representation only. Actual product may differ in size, color or options.

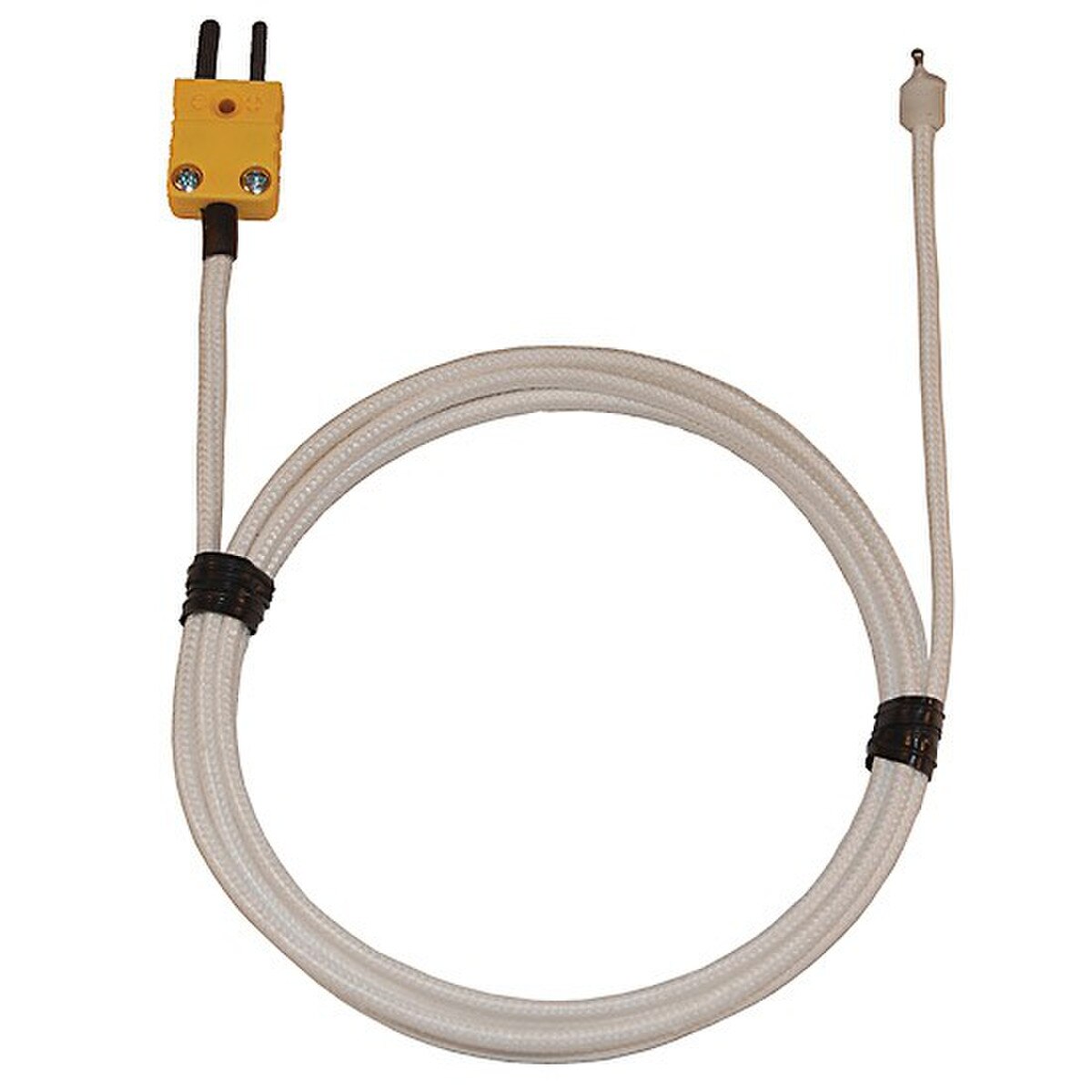

Digi-Sense Type-K Thermocouple Probe, 60 inch L, High-Temperature Ceramic Insulated Wire, Exposed Junction, 20 Gauge, 10 feet Cable, Mini ANSI Connector (each)
Ceramic Fiber Insulated Wire Used for High-Temperature Measurements
Ceramic Fiber Insulated Wire Used for High-Temperature Measurements
- Ceramic fiber cannot be handled after 800°F (426°C) due to flaking of insulation
- Response Time: 0.75 seconds or greater
- All insulated-wire probes include straight insulated cable with no handle and feature ANSI color Mini-Connectors: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-K |
| Material: | High-Temperature Ceramic Fiber Insulated |
| Temperature Range: | -250 to 2000°F (-150 to 1093°C) |
| Temperature Accuracy: | ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 60 inches |
| Cable Length: | 10 feet |
| Unit Size: | 20 Ga |
| Overall Dimensions: | Sheath: 60 inch length |
| Notes: | Exposed Junction |
