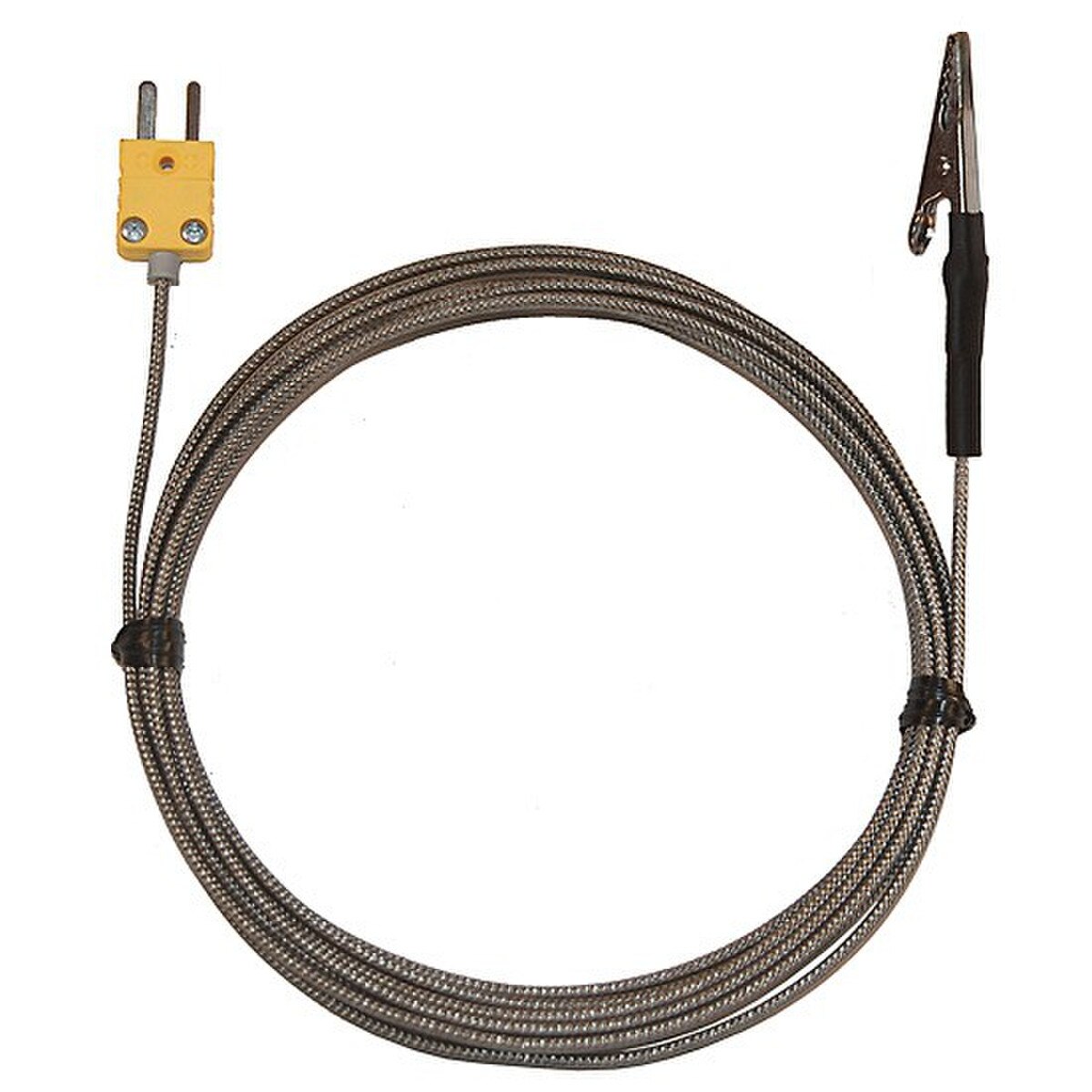

Digi-Sense Type-K Thermocouple Probe, Alligator Clip, 2 inch L x 0.38 inch Opening, Exposed Junction, 10 feet Braided Stainless Steel Cable, Mini ANSI Connector (each)
Ideal for permanent installation inside ovens or other hot dry environments
Ideal for permanent installation inside ovens or other hot dry environments
- Response Time: 2.25 seconds or greater
- The alligator clip is 2 inch long with a 5/16 inch max jaw opening
- All insulated-wire probes include straight insulated cable with no handle and feature ANSI color Mini-Connectors: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-K |
| Grade: | Alligator Clip |
| Material: | Nickel-Plated Steel Alligator Clip |
| Temperature Range: | -328 to 650°F (-200 to 343°C) |
| Temperature Accuracy: | ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 2 inch L x 0.38 inch opening Alligator Clip |
| Cable Length: | 10 feet |
| Overall Dimensions: | Sheath: 2 inch x 0.38 inch opening |
| Notes: | Exposed Junction |
