Digi-Sense Type-T Pipe Plug Probe SS 1 / 4" NPT (M) Mini-Connector, Flush Grounded 5ft Cable
Images are for representation only. Actual product may differ in size, color or options.

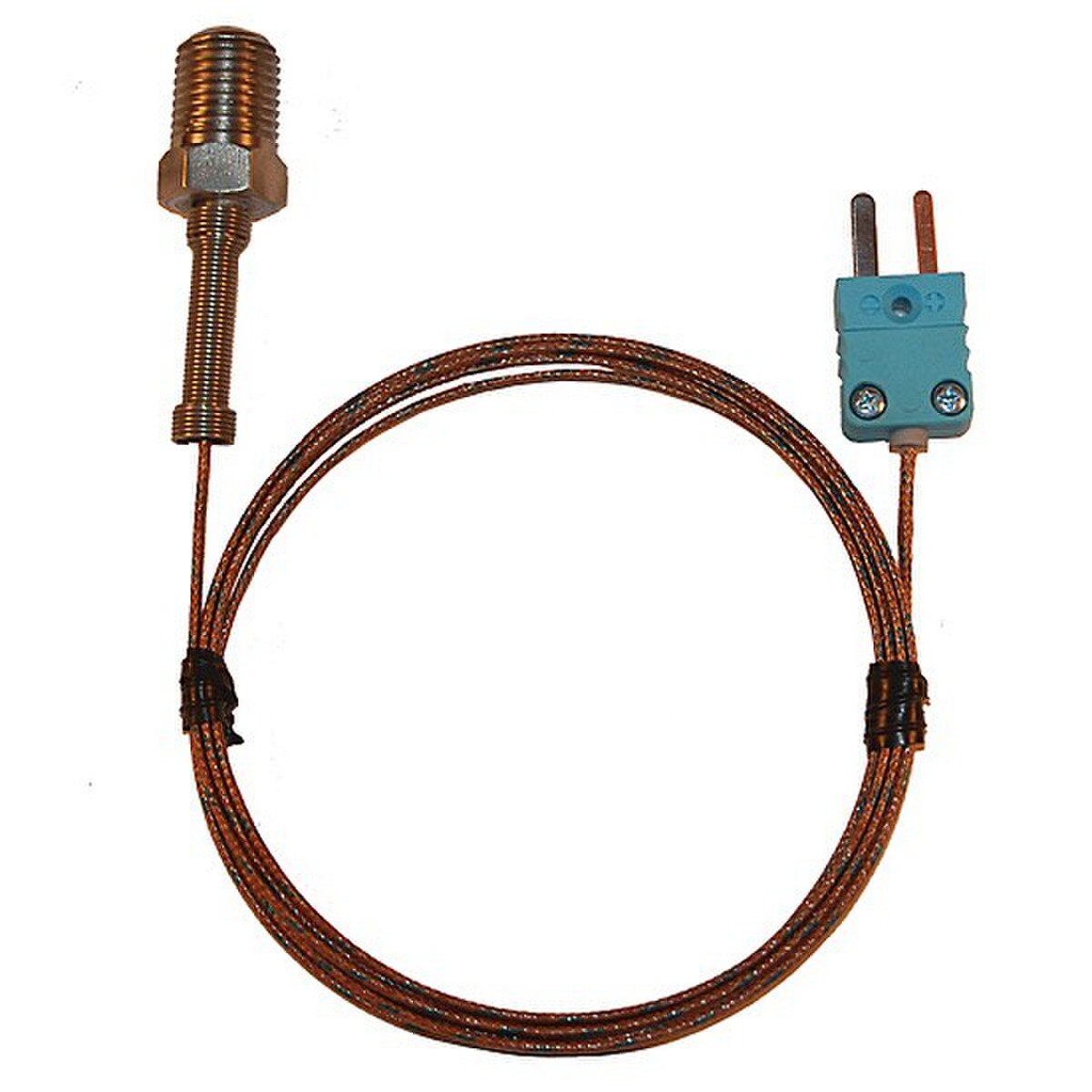

Digi-Sense Type-T Thermocouple Probe, Pipe-Plug, .25 inch L, 1/4 inch NPT, Ungrounded Junction, 5 Feet Cable, Mini ANSI Connector (each)
Pipe-Plug Probes ideal for installation where space is limited
Pipe-Plug Probes ideal for installation where space is limited
- Response Time: 2.5 seconds or greater
- The 1/4 inch NPT fitting can withstand up to 1000psi
- Fiberglass insulated cable ideal for long term installation in high temperature environments
- Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-T |
| Grade: | Pipe-Plug |
| Material: | 304 Stainless Steel |
| Temperature Range: | -328 to 500°F (-200 to 260°C) |
| Temperature Accuracy: | ±2.7°F (±1.5°C) or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C) |
| Max Pressure (PSI): | 1000 |
| Connections: | Mini ANSI Connector |
| Probe Length: | .25 inches |
| Cable Length: | 5 Feet |
| Overall Dimensions: | Sheath: .25 inch length |
| Notes: | Ungrounded Junction |
