Digi-Sense Type-T Pipe Plug Probe SS 1 / 4" NPT (M) Mini-Connector, 0.5" L Grounded 5ft Cable

(0)No Reviews yet
$57.84 $66.10
QuantityPrice
1$57.84
4 +$56.19
SKU: CPI-08500-74
Item Number: CPI-08500-74
Model Number: 08500-74
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08500-74
Condition: New

New

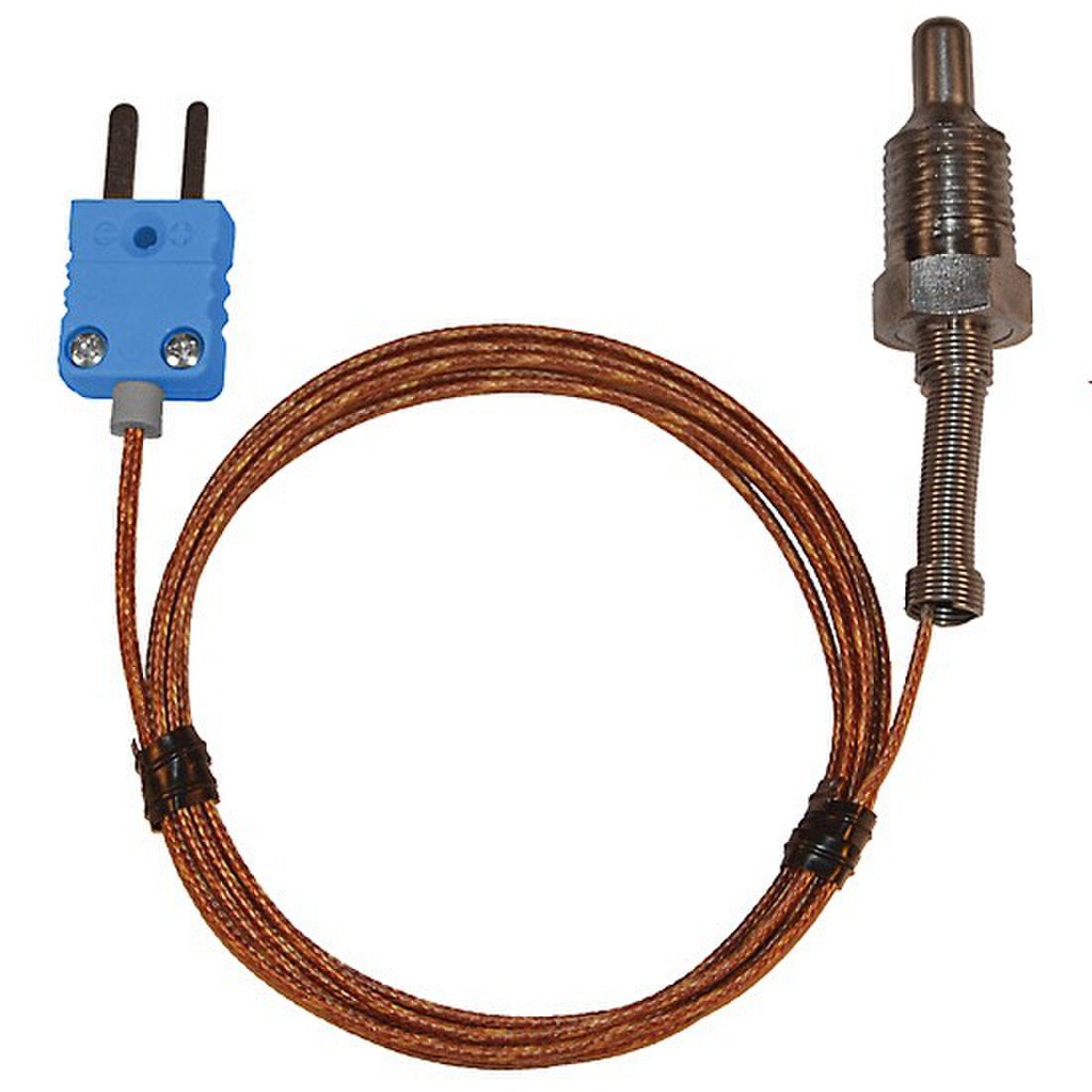

Digi-Sense Type-T Thermocouple Probe, High-Pressure Pipe-Plug, .5 inch L x 0.25 inch Dia, 1/4 inch NPT, Grounded Junction, 5 Feet Cable, Mini ANSI Connector (each)

Pipe-Plug Probes ideal for installation where space is limited

  • Response Time: 2.5 seconds or greater
  • The probe only extends out of the fitting 1/2 inch for a fast response without taking up much space
  • The 1/4 inch NPT fitting can withstand up to 1000psi
  • Fiberglass insulated cable ideal for long term installation in high temperature environments
  • Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-T
Grade: High-Pressure Pipe-Plug
Material: 304 Stainless Steel
Temperature Range: -328 to 500°F (-200 to 260°C)
Temperature Accuracy: ±2.7°F (±1.5°C) or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Max Pressure (PSI): 2000
Connections: Mini ANSI Connector
Probe Length: .5 inches x 0.25 inch diameter
Cable Length: 5 Feet
Overall Dimensions: Sheath: .5 inch length x 0.25 inch dia
Notes: Grounded Junction
