Cole-Parmer Type-K, Small-Diameter Standard Probe, Mini-Connector, 4" L, .063 Dia, Grounded
Images are for representation only. Actual product may differ in size, color or options.

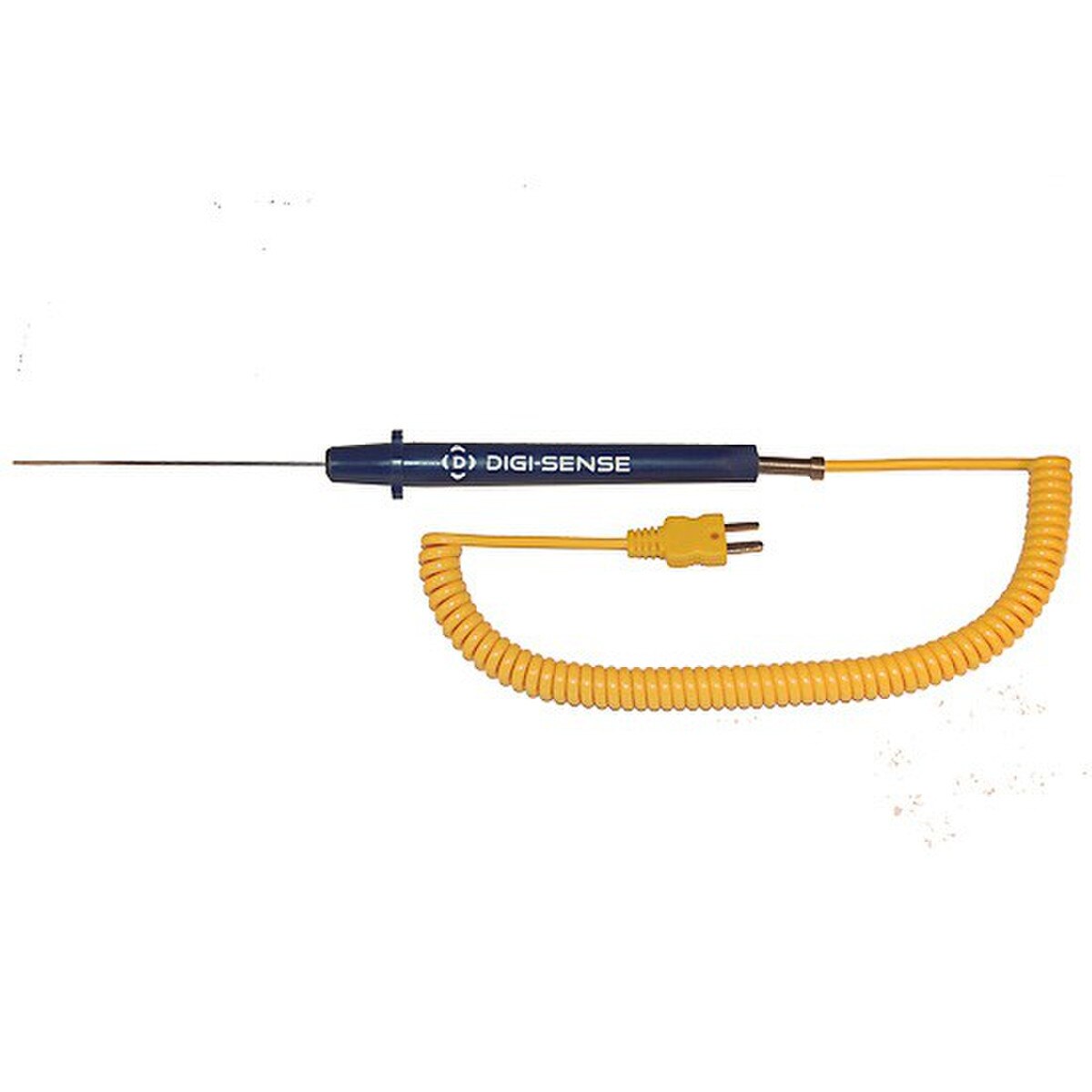

Digi-Sense Type-K Thermocouple Probe, General Purpose Small Diameter, 4 inch L x 0.0625 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)
General-Purpose Probes are designed for use with liquids, gases and semisolids
General-Purpose Probes are designed for use with liquids, gases and semisolids
- Small-Diameter probes provide quick readings in hard to reach areas
- Response Time: 1.2 seconds or greater
- Acrylonitrile butadiene styrene (ABS) handles provide a light weight design for ease of use along with durability
- Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
- Each probe comes with color coded ANSI Mini-Connectors: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Cole-Parmer |
| Class: | Type-K |
| Grade: | General Purpose Small Diameter |
| Material: | 316 Stainless Steel, ABS Plastic |
| Temperature Range: | -250 to 700°F (-150 to 311°C) |
| Temperature Accuracy: | ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 4 inches length x 0.0625 inch diameter |
| Cable Length: | 5 feet |
| Overall Dimensions: | Sheath: 4 inch length x 0.0625 inch dia; Handle: 5.5 inch length |
| Notes: | Grounded Junction |
