Cole-Parmer Type-T, Small-Diameter Standard Probe, Mini-Connector, 4" L, .063 Dia, Grounded

(0)No Reviews yet
Images are for representation only. Actual product may differ in size, color or options.
Back

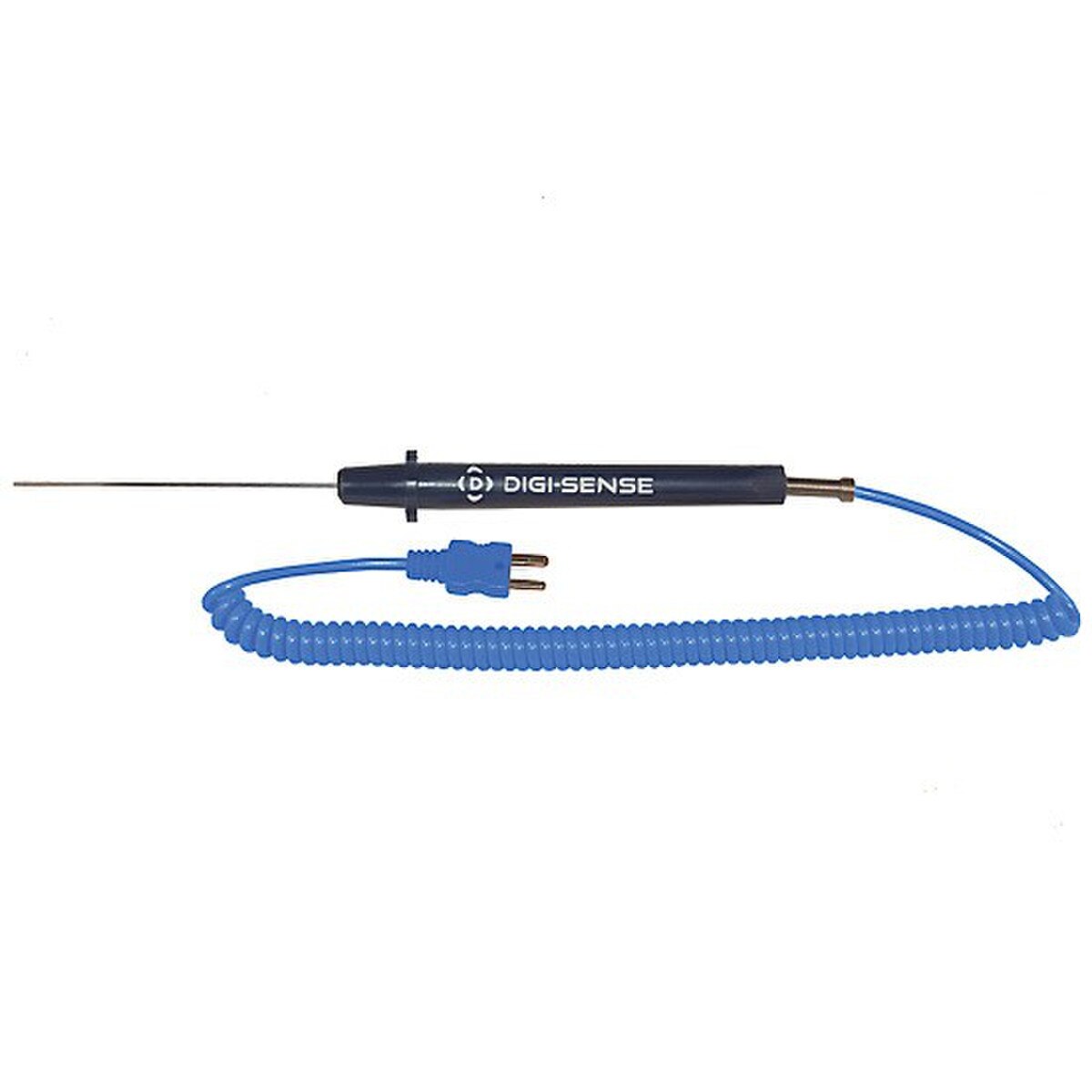

Digi-Sense Type-T Thermocouple Probe, General Purpose Small Diameter, 4 inch L x 0.0625 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

General-Purpose Probes are designed for use with liquids, gases and semisolids

  • Small-Diameter probes provide quick readings in hard to reach areas
  • Response Time: 1.2 seconds or greater
  • Acrylonitrile butadiene styrene (ABS) handles provide a light weight design for ease of use along with durability
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).
Back
Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-T
Grade: General Purpose Small Diameter
Material: 316 Stainless Steel, ABS Plastic
Temperature Range: -328 to 450°F (-200 to 232°C)
Temperature Accuracy: ±3.6°F (2.0°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 4 inches length x 0.0625 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 4 inch length x 0.0625 inch dia; Handle: 5.5 inch length
Notes: Grounded Junction
