Digi-Sense Type-T Hypodermic Probe Mini-Connector, 2.25" L .063 Dia Grounded 2.5ft FEP Cable

Name: CPI-08505-93
Brand: Digi-Sense
SKU: CPI-08505-93
Price: 153.83 USD
Availability: InStock

(0)No Reviews yet

Images are for representation only. Actual product may differ in size, color or options.

$153.83 $193.25

Quantity discounts available

Quantity	Price
1	$153.83
2 +	$150.93

SKU: CPI-08505-93

Item Number: CPI-08505-93

Model Number: 08505-93

Manufacturer: Oakton Instruments

Brand: Digi-Sense

MPN: 08505-93

Condition: New

Quantity

New

Back

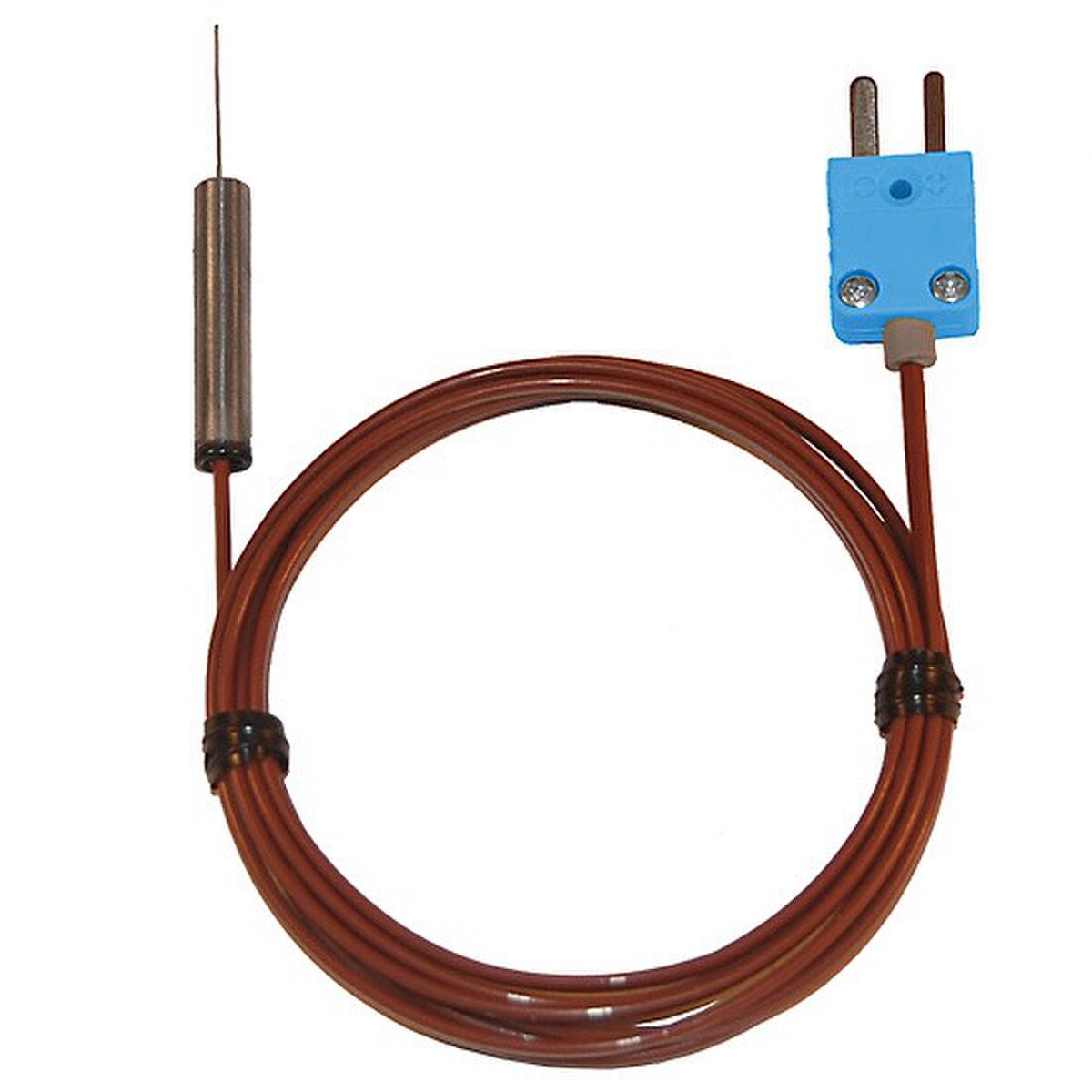

Digi-Sense Type-T Thermocouple Probe, Hypodermic Tip, 2.25 inch L x 0.063 inch Dia, Grounded Junction, 2.5 Feet FEP Insulated Cable, Mini ANSI Connector (each)

Hypodermic Tip Penetration Probes are designed for soft and semi-soft materials.

Ideal For Checking Food Temperatures
Response Time: 0.5 -1.2 seconds or greater
Probe comes with PTFE coated Stainles Steel Handle
Probe comes with a color coded ANSI mini connector: type T-blue

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Back

Product Type:	Thermocouple Probe
Brand:	Digi-Sense
Class:	Type-T
Grade:	Hypodermic Tip
Material:	316 Stainless Steel, PTFE
Temperature Range:	-328 to 400°F (-200 to 204°C)
Temperature Accuracy:	±2.7°F (1.5°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections:	Mini ANSI Connector
Probe Length:	2.25 inches x 0.063 inch diameter
Cable Length:	2.5 Feet
Overall Dimensions:	Sheath: 2.25 inch length x 0.063 dia, Handle: 1.5 inch length
Notes:	Grounded Junction
