CPI-08516-62
Images are for representation only. Actual product may differ in size, color or options.

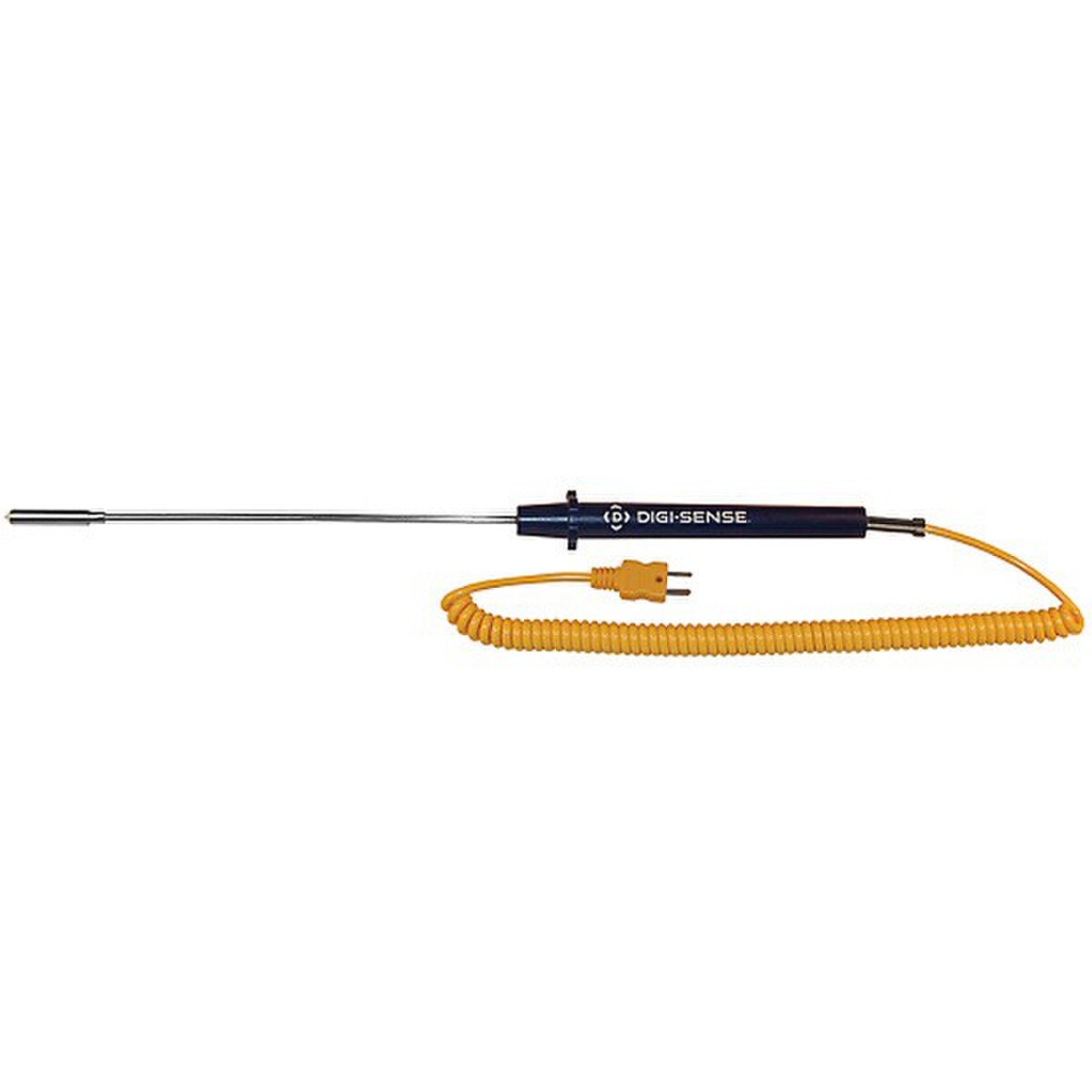

Digi-Sense Type-K Thermocouple Probe, Small Diameter Surface, 8 inch L x 0.25 inch Dia, Exposed Junction, 5 Feet Cable, Mini ANSI Connector (each)
Designed to measure the temperature at the surface without perpetrating the material
Designed to measure the temperature at the surface without perpetrating the material
- Response Time: 1.25 seconds or greater
- Ideal for monitoring flat surfaces such as hot plates, furnaces, or molds
- Each probe comes with a lower profile tip than other surface probes for hard to reach areas
- Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Cole-Parmer |
| Class: | Type-K |
| Grade: | Small Diameter Surface |
| Material: | 316 Stainless Steel Housing with Ceramic, ABS Plastic |
| Temperature Range: | -328 to 1200°F (-200 to 649°C) |
| Temperature Accuracy: | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 8 inches |
| Cable Length: | 5 Feet |
| Overall Dimensions: | Sheath: 8 inch length; Handle: 5.5 inch length |
| Notes: | Exposed Junction |
