CPI-08516-75
Images are for representation only. Actual product may differ in size, color or options.

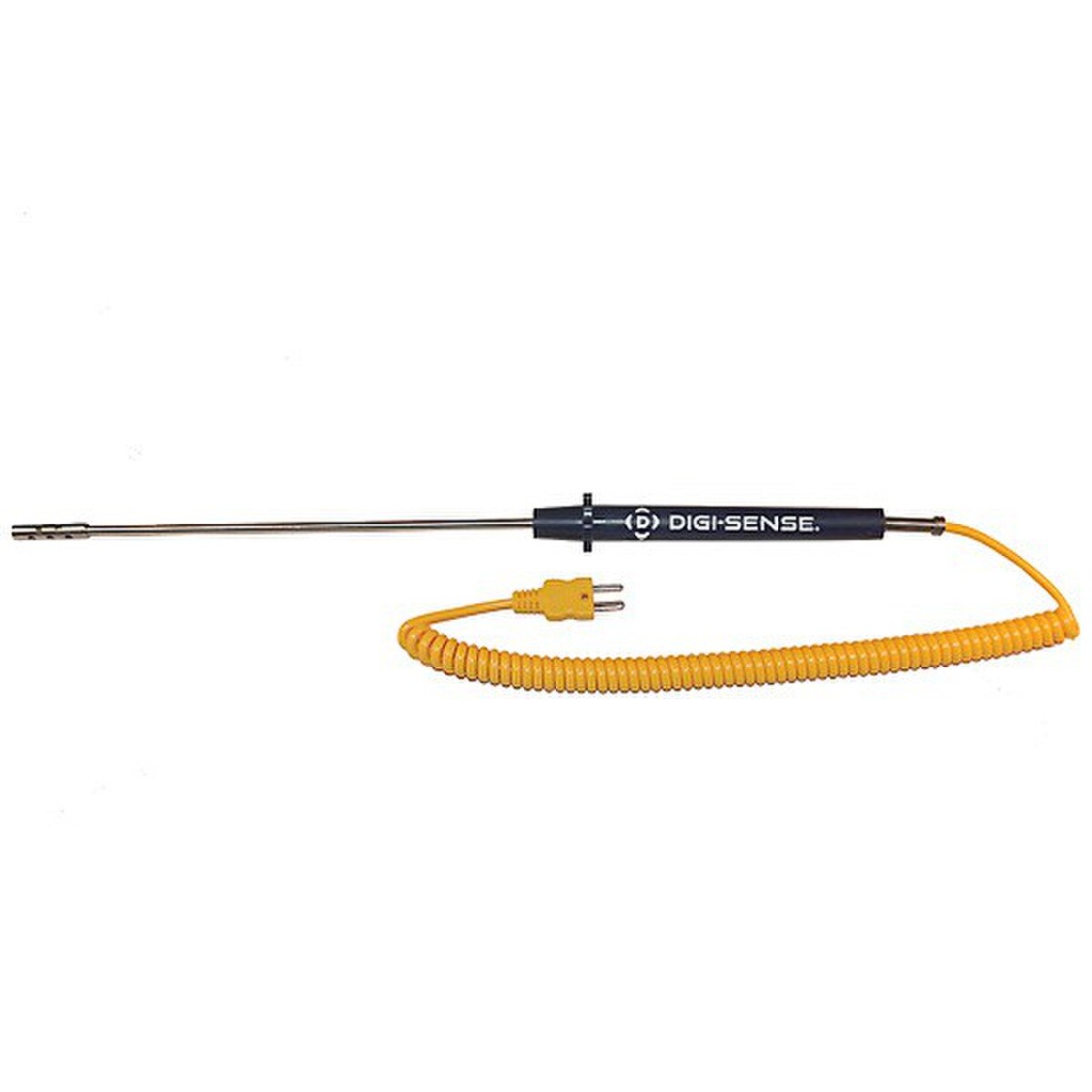

Digi-Sense Type-K Thermocouple Probe, General Purpose Air/Gas, 8.5 inch L x 0.156 Dia, Exposed Junction, 5 feet Cable, Mini ANSI Connector (each)
Air/Gas Probes are ideal for measuring a wide range of air temperatures
Air/Gas Probes are ideal for measuring a wide range of air temperatures
- Response Time: 1.75 seconds or greater
- Exposed Junction is protected by a rigid stainless steel shield minimize error from radiated heat
- Each probe comes with a color coded ANSI coiled cable: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Cole-Parmer |
| Class: | Type-K |
| Grade: | General Purpose Air/Gas |
| Material: | 316 Stainless Steel with Rigid Stainless Steel Shield |
| Temperature Range: | -250 to 1000°F (-150 to 537°C) |
| Temperature Accuracy: | ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 8.5 inches x 0.156 inch diameter |
| Cable Length: | 5 feet |
| Overall Dimensions: | Sheath: 8.5 inch length x 0.156 diameter; Handle: 5.5 inch length |
| Notes: | Exposed Junction |
