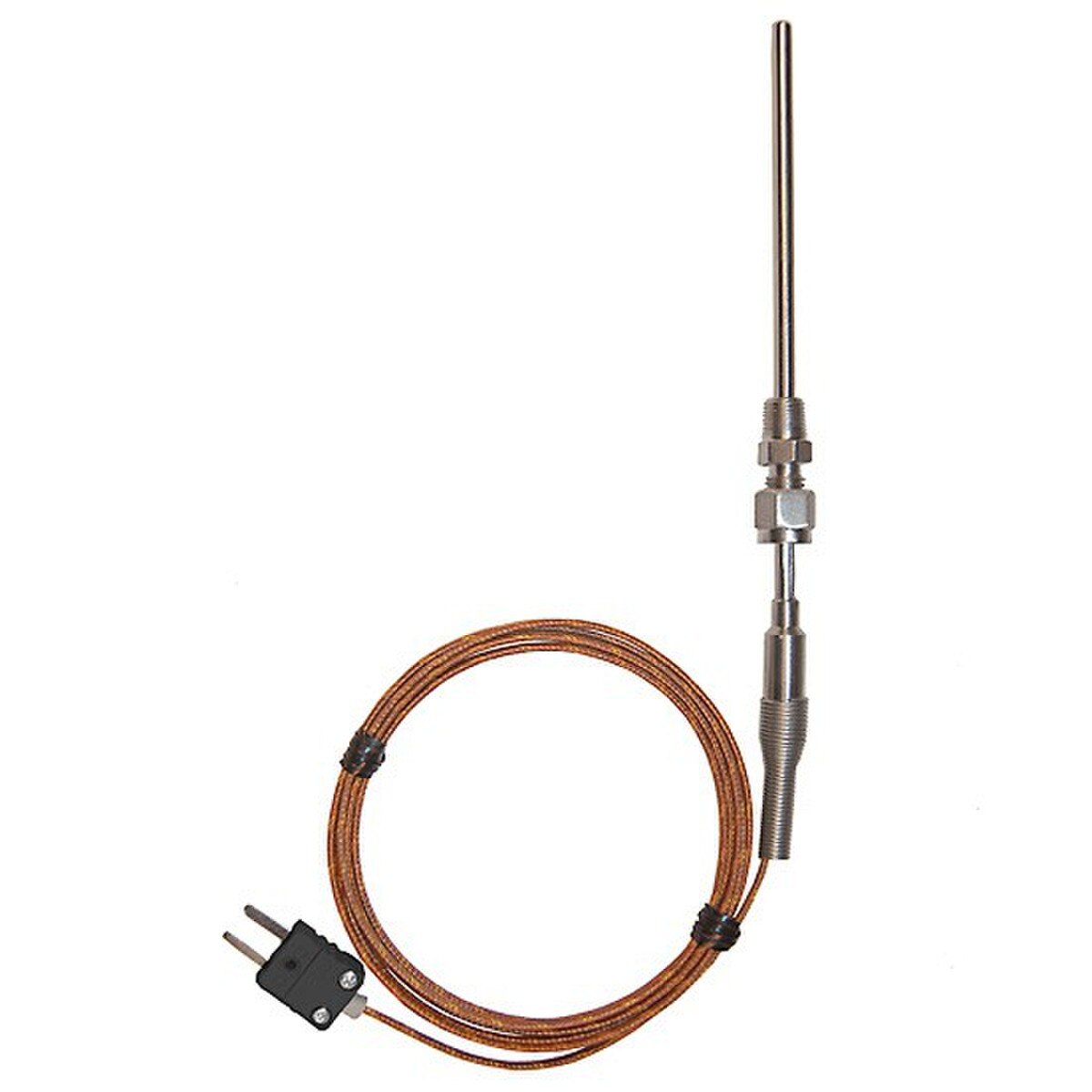

Digi-Sense Type-J Pipe-ftg Probe SS Handle Mini-Connector, 4" L .188" Dia Grounded 6ft Cable
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Type-J Thermocouple Probe, Pipe-Fitting, 4 inch L x 0.188 inch Dia, 1/8 inch NPT, Grounded Junction, 6 feet Insulated Wire Cable, Mini ANSI Connector (each)
Thermocouple pipe-fitting probes ideal for high temperature environments or pressurized chambers
Thermocouple pipe-fitting probes ideal for high temperature environments or pressurized chambers
- Response Time: 3 seconds or greater
- Each Probe comes with a one-time adjustable stainless steel compression fitting with a 1/8 inch NPT process
- Compression fittings can hold up to 2000 psi once installed
- Fiberglass insulated cable ideal for continuous high temperature environments
- Probe features ICONEL 600 sheaths
- Each probe comes with a color coded ANSI Mini-Connectors: Type J-black
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-J |
| Grade: | Pipe-Fitting |
| Material: | Inconel® 600, 316 Stainless Steel |
| Temperature Range: | 32 to 1600°F (0 to 871°C) |
| Temperature Accuracy: | ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 4 inches length x 0.188 inch diameter |
| Cable Length: | 6 feet |
| Overall Dimensions: | Sheath: 4 inch length x 0.188 inch dia; Handle: 1.5 inch length |
| Notes: | Grounded Junction |
