CPI-08517-74
Images are for representation only. Actual product may differ in size, color or options.

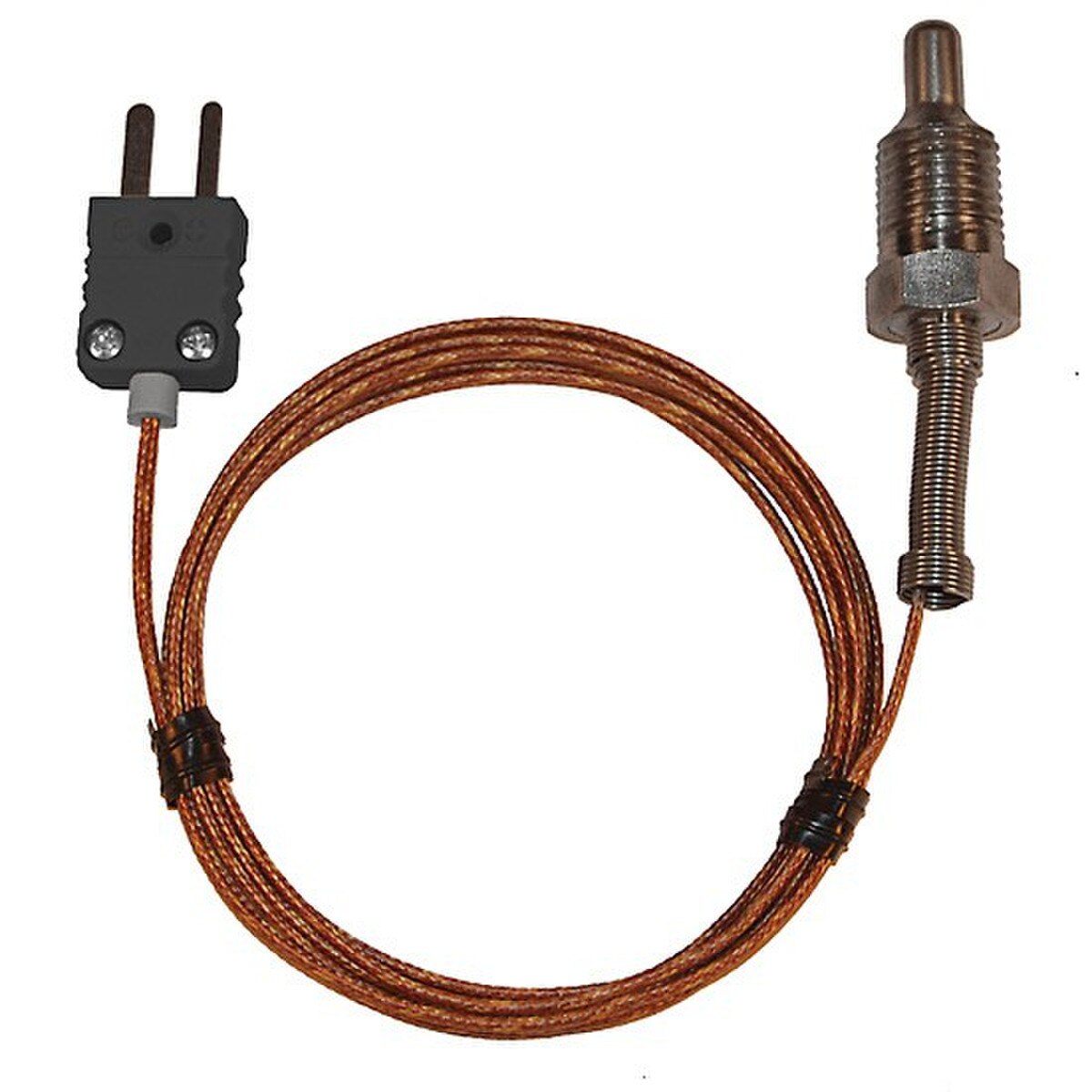

Digi-Sense Type-J Thermocouple Probe, High-Pressure Pipe-Plug, .5 inch L x 0.25 inch Dia, 1/4 inch NPT, Grounded Junction, 5 Feet Cable, Mini ANSI Connector (each)
Pipe-Plug Probes ideal for installation where space is limited
Pipe-Plug Probes ideal for installation where space is limited
- Response Time: 2.5 seconds or greater
- The probe only extends out of the fitting 1/2 inch for a fast response without taking up much space
- The 1/4 inch NPT fitting can withstand up to 1000psi
- Fiberglass insulated cable ideal for long term installation in high temperature environments
- Each probe comes with a color coded ANSI Mini-Connectors: type J-black
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-J |
| Grade: | High-Pressure Pipe-Plug |
| Material: | 304 Stainless Steel |
| Temperature Range: | 32 to 900°F (0 to 482°C) |
| Temperature Accuracy: | ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C) |
| Max Pressure (PSI): | 2000 |
| Connections: | Mini ANSI Connector |
| Probe Length: | .5 inches x 0.25 inch diameter |
| Cable Length: | 5 Feet |
| Overall Dimensions: | Sheath: .5 inch length x 0.25 inch dia |
| Notes: | Grounded Junction |
