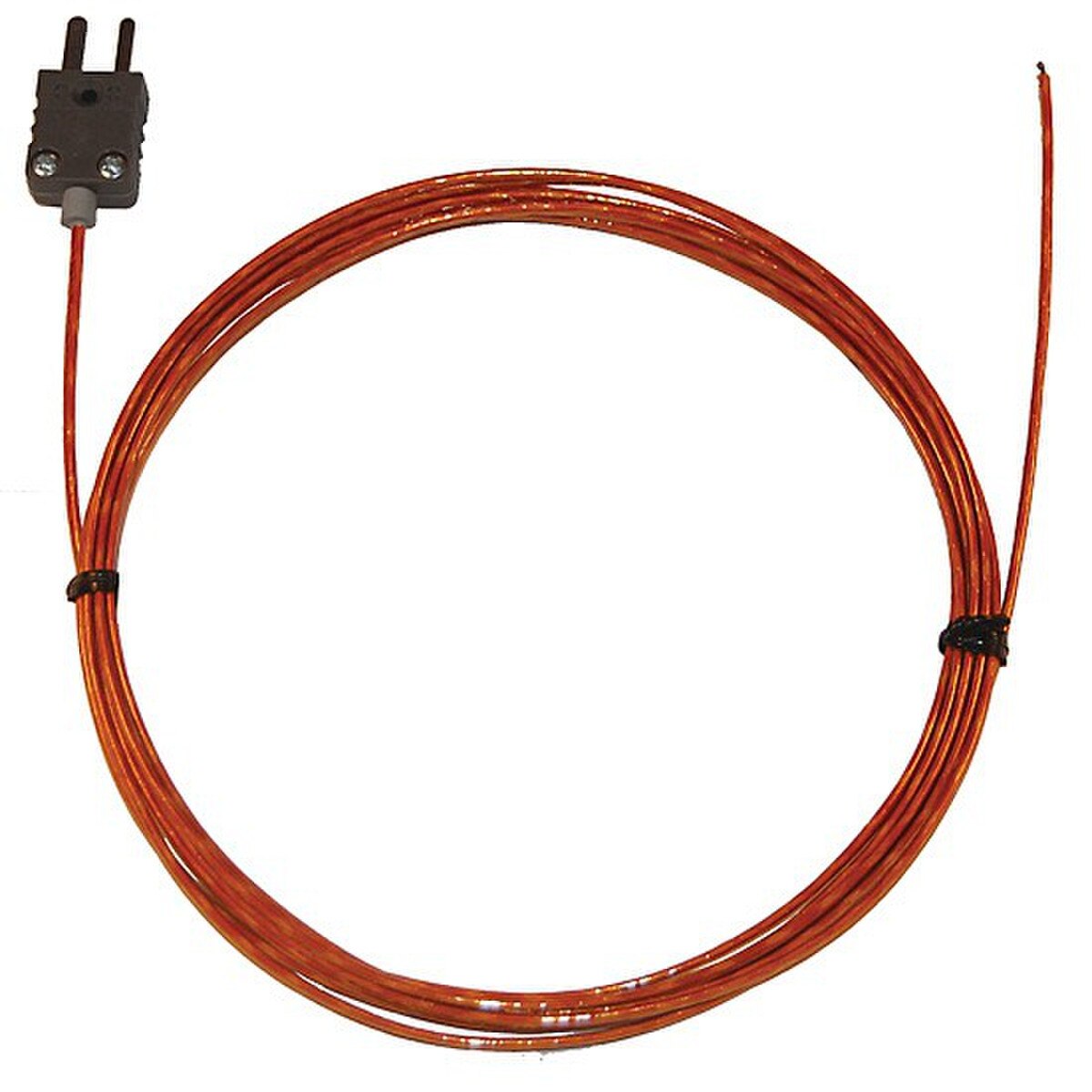

Digi-Sense Type-J Thermocouple Probe, Kapton Insulated, 120 inch L x 0.01 inch Dia., Exposed Junction, 24 Gauge, 10 feet Cable, Mini ANSI Connector (each)
Flexible Kapton-Insulated Probe ideal for environments that require slightly higher temperatures than FEP/PFA can provide
Flexible Kapton-Insulated Probe ideal for environments that require slightly higher temperatures than FEP/PFA can provide
- Response Time: 0.5 seconds or greater
- All insulated-wire probes include straight insulated cable with no handle and feature ANSI color-coded mini connectors: type J-black
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-J |
| Grade: | Kapton Insulated |
| Material: | Kapton Insulated Wire |
| Temperature Range: | 32 to 600°F (0 to 315°C) |
| Temperature Accuracy: | ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 120 inches length x 0.01 inch diameter |
| Cable Length: | 10 feet |
| Unit Size: | 24 Ga |
| Overall Dimensions: | Sheath: 120 inch length x 0.01 inch dia |
| Notes: | Exposed Junction |
