CPI-08517-95

(0)No Reviews yet
$111.25 $136.00
QuantityPrice
1 – 1$136.00
1 – 3$111.25
4 +$106.22
SKU: CPI-08517-95

New

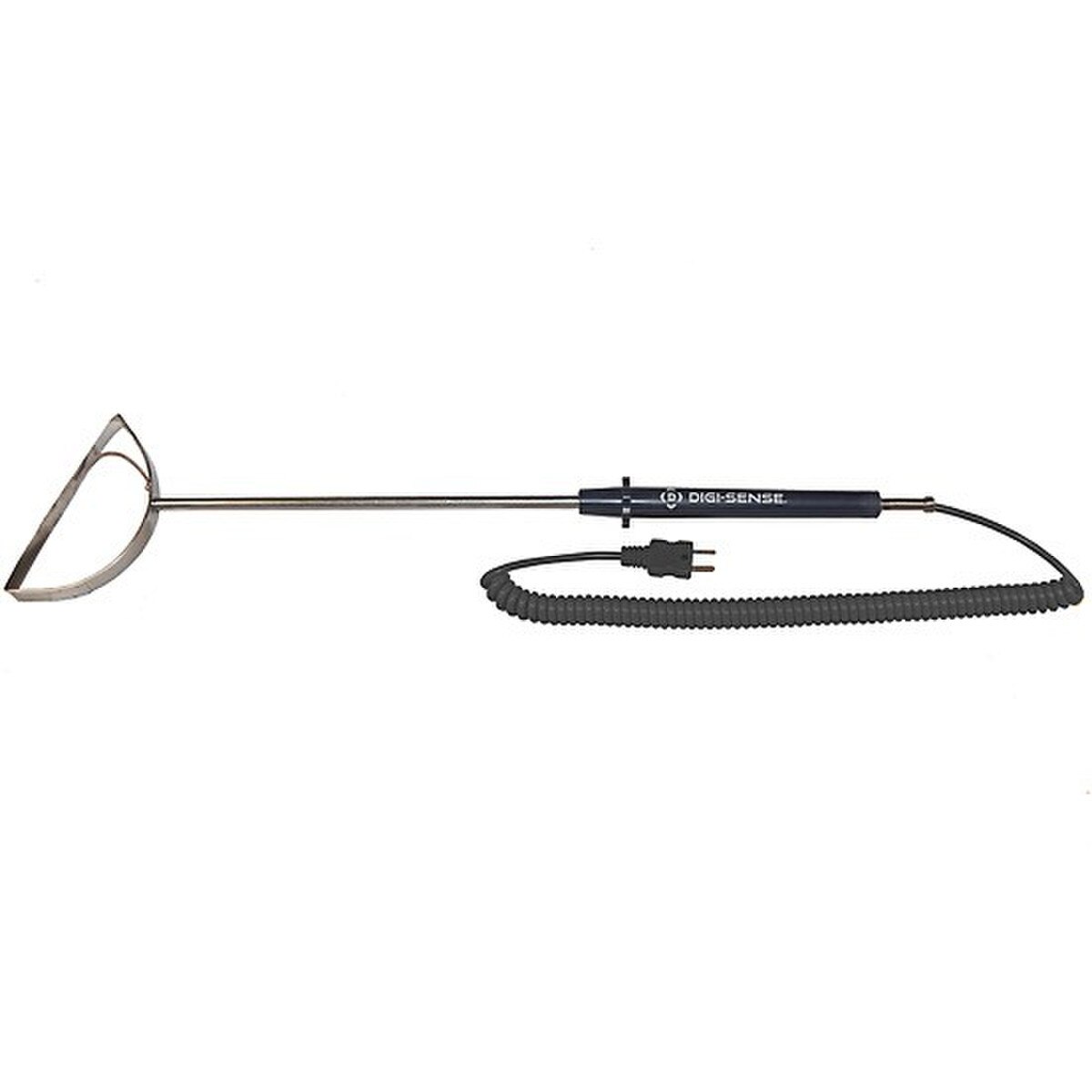

Digi-Sense Type-J Thermocouple Probe, Roller, 10.5 inch L x 4 inch Bow, Exposed Junction, 5 feet Cable, Mini ANSI Connector (each)

Surface Roller probes are designed to measure a wide range of convex or uneven surfaces

  • Probe comes with a flexible ribbon ideal for uses on uneven or round surfaces
  • Response Time: 1.7 seconds or greater
  • Can be used on slow moving surfaces
  • Probe comes with a color coded ANSI mini connector: type J-black
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).
Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-J
Grade: Roller
Material: 304 Stainless Steel
Temperature Range: 32 to 600°F (0 to 316°C)
Temperature Accuracy: ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 10.5 inches x 4 inch Bow
Cable Length: 5 feet
Overall Dimensions: Sheath: 10.5 inch length x 4 inch bow; Handle: 5.5 inch length
Notes: Exposed Junction
Oakton Instruments Catalog.pdf
