Digi-Sense Type-T Bolt-On Probe 0.62" OD Mini-Connector, Grounded 25ft Strt Fiberglass Cable

(0)No Reviews yet
$50.40 $57.60
QuantityPrice
1$50.40
4 +$48.96
SKU: CPI-08525-84
Item Number: CPI-08525-84
Model Number: 08525-84
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08525-84
Condition: New

New

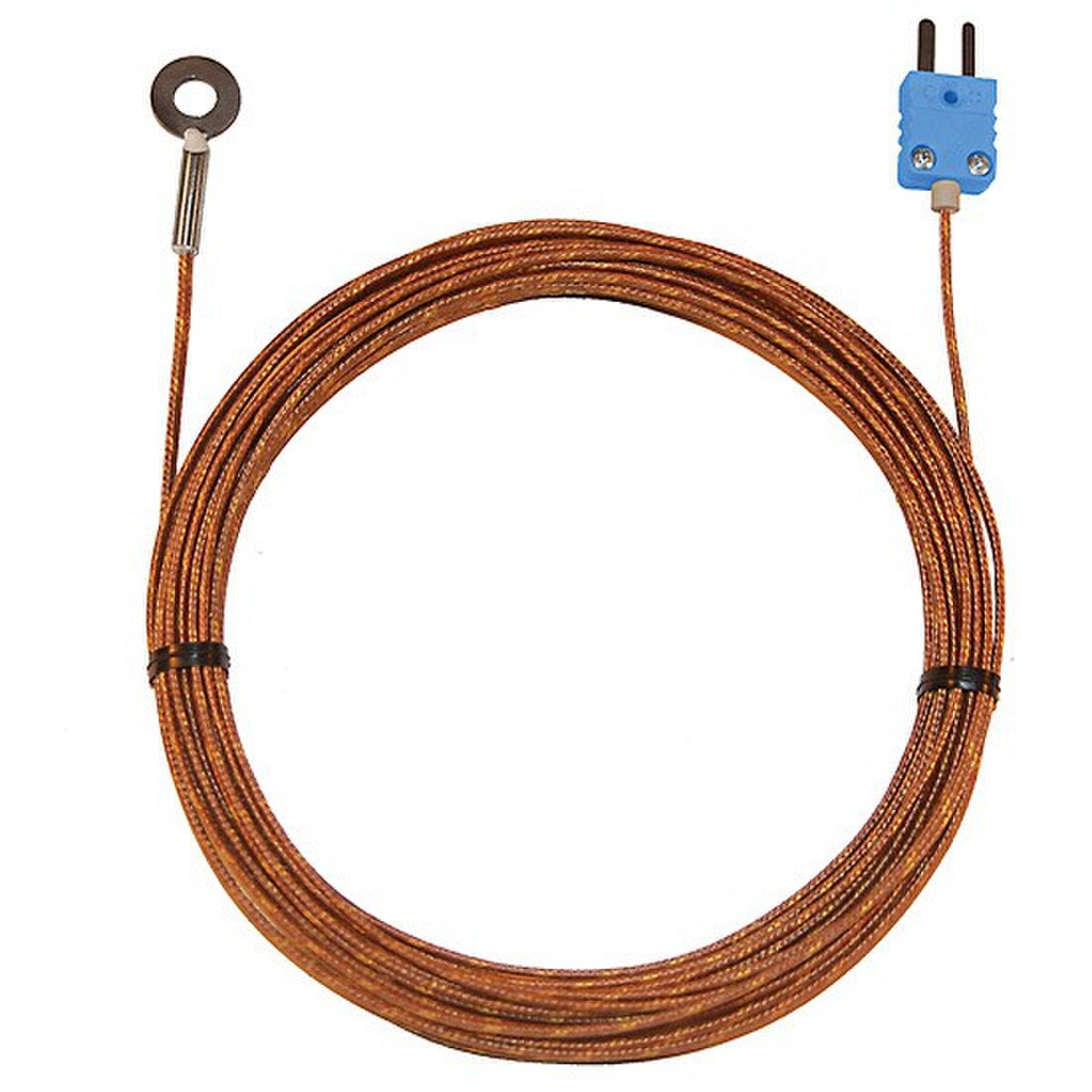

Digi-Sense Type-T Thermocouple Probe, Bolt-On, 0.62 inch OD x 0.28 inch ID, Grounded Junction, 25 feet Fiberglass Insulated Cable, Mini ANSI Connector (each)

Bolt-On probe for long term installation

  • Ideal for measuring machinery or mold temperatures, inside ovens or other hot dry environments
  • Response Time: 3 seconds or greater
  • Probe comes with a bolt on washer that is .62 inch OD and .28 inch ID for quick easy installation
  • Once installed, the rugged design allows for continuous long term readings
  • This probe is not recommended for damp or wet conditions
  • Each probe comes with a color coded ANSI coiled cable: type T-blue
Note: The temperature range is for the probe tip only. Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-T
Grade: Bolt-On
Material: 304 Stainless Steel
Temperature Range: -328 to 500°F (-200 to 260°C)
Temperature Accuracy: ±2.7°F (±1.5°C) or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Cable Length: 25 feet
Overall Dimensions: Washer: 0.62 inch OD x 0.28 inch ID
Notes: Grounded Junction
