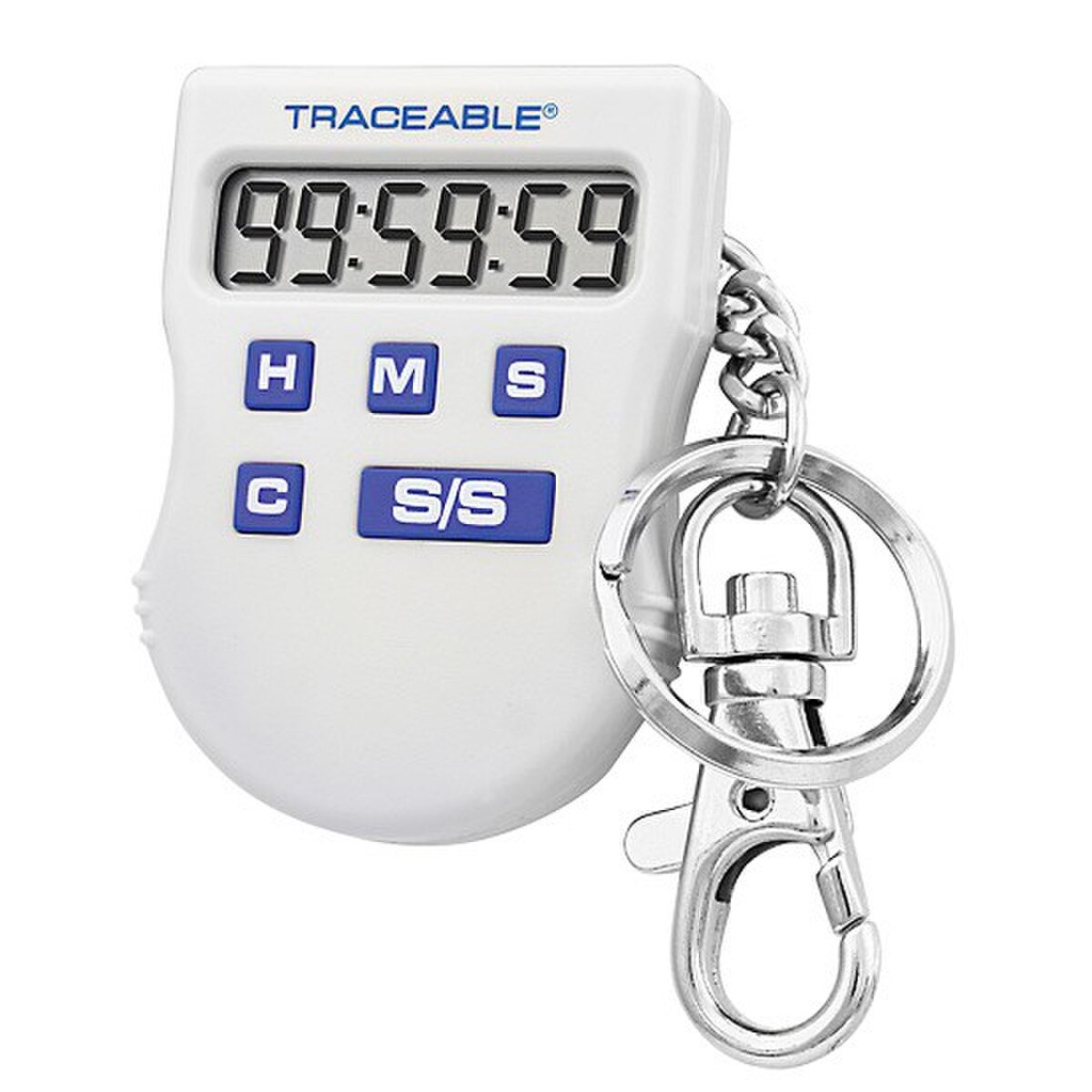

Traceable® 5045TR Clip-On/Key Chain Single-Channel Digital Timer

Traceable® 5045TR Clip-On/Key Chain Single-Channel Digital Timer

The Traceable® 5045TR Clip-On/Key Chain Single-Channel Digital Timer is a compact, highly accurate timing device designed for laboratory procedures, quality control applications, food processing, research environments, educational settings, and general timing tasks. Featuring count-up and count-down functionality, stopwatch capability, time-out operation, and multiple mounting options, this lightweight timer provides reliable performance wherever precise timing is required.

Key Features

• Functions as both a countdown timer and stopwatch
• Count-up, count-down, time-in, and time-out timing modes
• Programs from 1 second up to 99 hours, 59 minutes, 59 seconds
• High accuracy of ±0.01%
• One-minute audible alarm signal
• Five-button operation for fast and intuitive setup
• Compact design weighs only 0.5 oz (14 g)
• Multiple mounting options including clip, key chain, and magnet
• Easy-to-read LCD display with 1/3-inch-high digits
• Chemical-resistant ABS plastic housing
• Includes individually numbered Traceable® Certificate from an A2LA-accredited ISO/IEC 17025 calibration laboratory
• 1-year warranty

More About This Item

The Traceable® 5045TR is a versatile digital timer designed to support precise timing requirements across a wide range of professional applications. Its compact size and lightweight construction make it easy to carry in a pocket, attach to a key ring, clip onto clothing, or mount to metal surfaces using the included magnet.

The timer can be programmed in countdown mode from 1 second up to 99 hours, 59 minutes, and 59 seconds in one-second increments, making it suitable for long-duration experiments, incubation periods, manufacturing processes, cooking applications, and routine laboratory procedures.

In stopwatch mode, the timer counts upward from one second to 99 hours before repeating, providing a convenient solution for tracking elapsed time in testing, inspections, process monitoring, and research activities. Time-out functionality is available in both count-up and count-down modes for increased flexibility.

The large LCD display with 1/3-inch-high digits provides clear readability, while the five-key control layout enables quick operation with minimal training. The durable ABS plastic housing offers chemical resistance for demanding laboratory and industrial environments.

Each Traceable® timer includes an individually numbered Traceable® Certificate documenting traceability to SI units through NIST or other recognized National Measurement Institutes (NMIs). Calibration is performed by an A2LA-accredited ISO/IEC 17025 laboratory, helping support laboratory accreditation requirements, quality assurance programs, regulatory compliance, and audit documentation. Guaranteed to have at least one year of calibration remaining on the certificate.

Technical Specifications

• Timer Type: Digital Timer
• Number of Channels: 1
• Timing Capacity: 99 hr, 59 min, 59 sec (100-hour capacity)
• Count Direction: Up and Down
• Functions: Countdown Timer, Stopwatch, Time-In, Time-Out
• Resolution: 1 second
• Accuracy: ±0.01%
• Alarm: One-minute audible beep
• Display: LCD with 1/3-inch-high digits
• Housing Material: Chemical-resistant ABS plastic
• Mounting Options: Clip-On, Key Chain, and Magnet
• Height: 2 in. (5.1 cm)
• Width: 1.5 in. (3.8 cm)
• Depth: 0.75 in. (1.9 cm)
• Battery: One 1.5V silver oxide battery (included)
• Certification: NIST-Traceable
• Description: Clip-On/Key Chain Single-Channel Digital Timer
• Warranty: 1 year

Included Accessories

• Traceable® Certificate
• Magnet
• Belt/pocket clip
• Key chain attachment
• 1.5V silver oxide battery

Ideal for laboratories, research facilities, pharmaceutical environments, quality assurance departments, manufacturing operations, educational institutions, food preparation areas, healthcare facilities, and any application requiring accurate, portable, and traceable timing performance.
