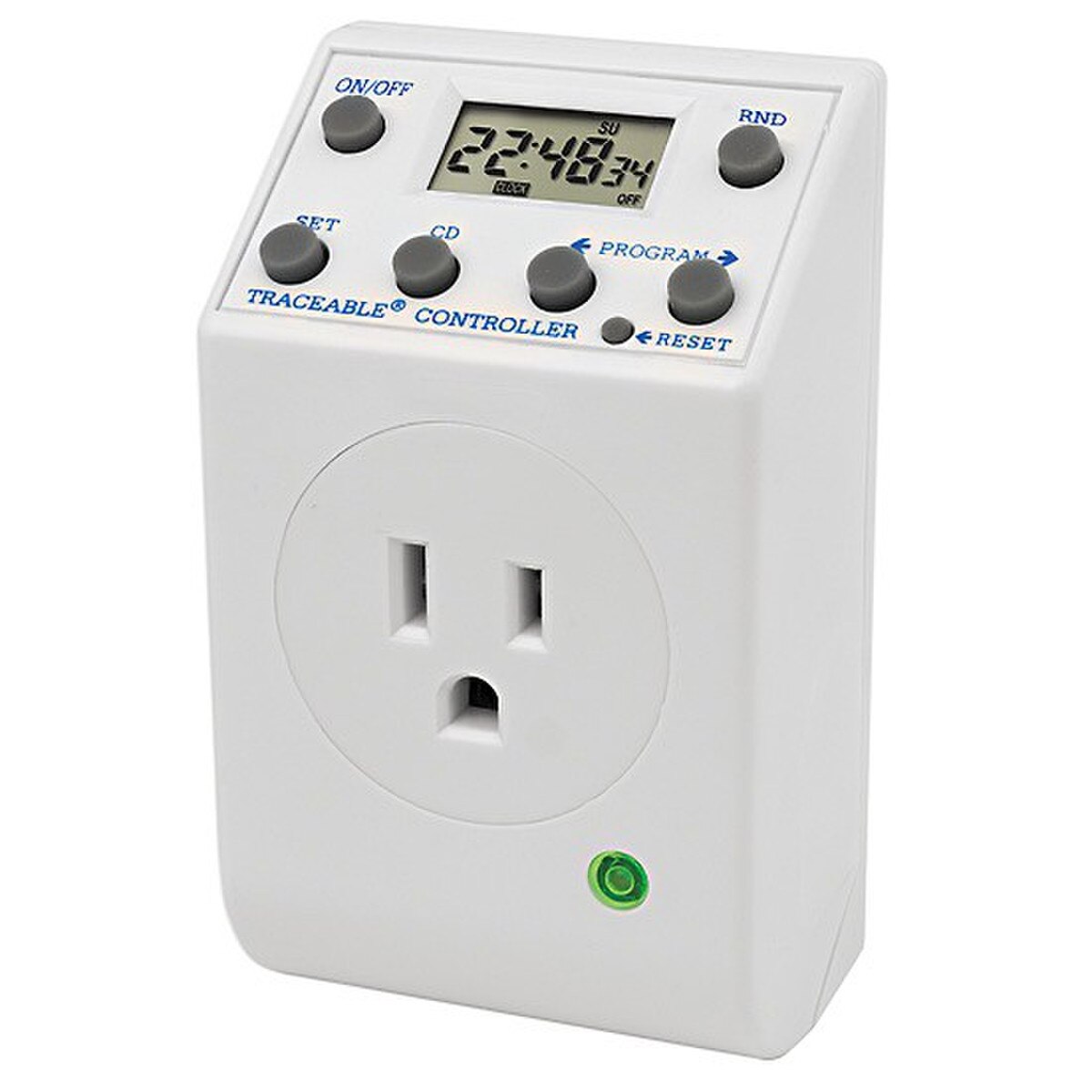

Traceable® 5090TR Digital Programmable Plug‑In Controller; 115 VAC

Traceable® 5090TR Digital Programmable Plug‑In Controller; 115 VAC

The Traceable® 5090TR Digital Programmable Plug‑In Controller automates power cycling for laboratory and industrial equipment. It allows up to fourteen on/off events per day, seven days a week, with intervals as short as one minute or as long as 168 hours. Ideal for pumps, heaters, lights, and other devices requiring precise timed operation.

Model & Ordering Information

• Model: 5090TR
• Item: 08645‑15
• Description: Digital Programmable Plug‑In Controller; 115 VAC

Key Features

• AM/PM day programs repeat daily, weekdays only, weekends only, or any selected days
• Battery‑backup memory retains programs for 10 days during power failure
• Random‑function mode for variable on/off intervals
• Manual override and 24‑hour clock display
• CSA and NRTL‑C certified for safety compliance
• Includes NIST‑traceable certificate from A2LA‑accredited (1750.01) calibration laboratory
• 1‑year warranty

Technical Specifications

• Timing Capacity: 7 days
• Programs: 14 on/off events per day
• Resolution: 1 minute
• Accuracy: 0.01 %
• Display: LCD (0.5 in high)
• Control Output: 120 VAC 50/60 Hz 15 A resistive
• Power Supply: 115 VAC 50/60 Hz
• Battery Type: 2 × LR44 1.5 V button cells
• Dimensions (H × W × D): 4 × 3.5 × 2 in (10.2 × 8.9 × 5.1 cm)

Applications

• Automated control of laboratory instruments and environmental equipment
• Timed operation of pumps, heaters, and lights
• Energy‑saving scheduling for industrial and research facilities
• General programmable power management

Each unit includes an individually numbered NIST‑traceable certificate from an ISO/IEC 17025:2017 A2LA‑accredited calibration laboratory, ensuring measurement traceability to SI units. Traceable® products undergo rigorous testing to deliver reliable, accurate performance without requiring separate calibration.
