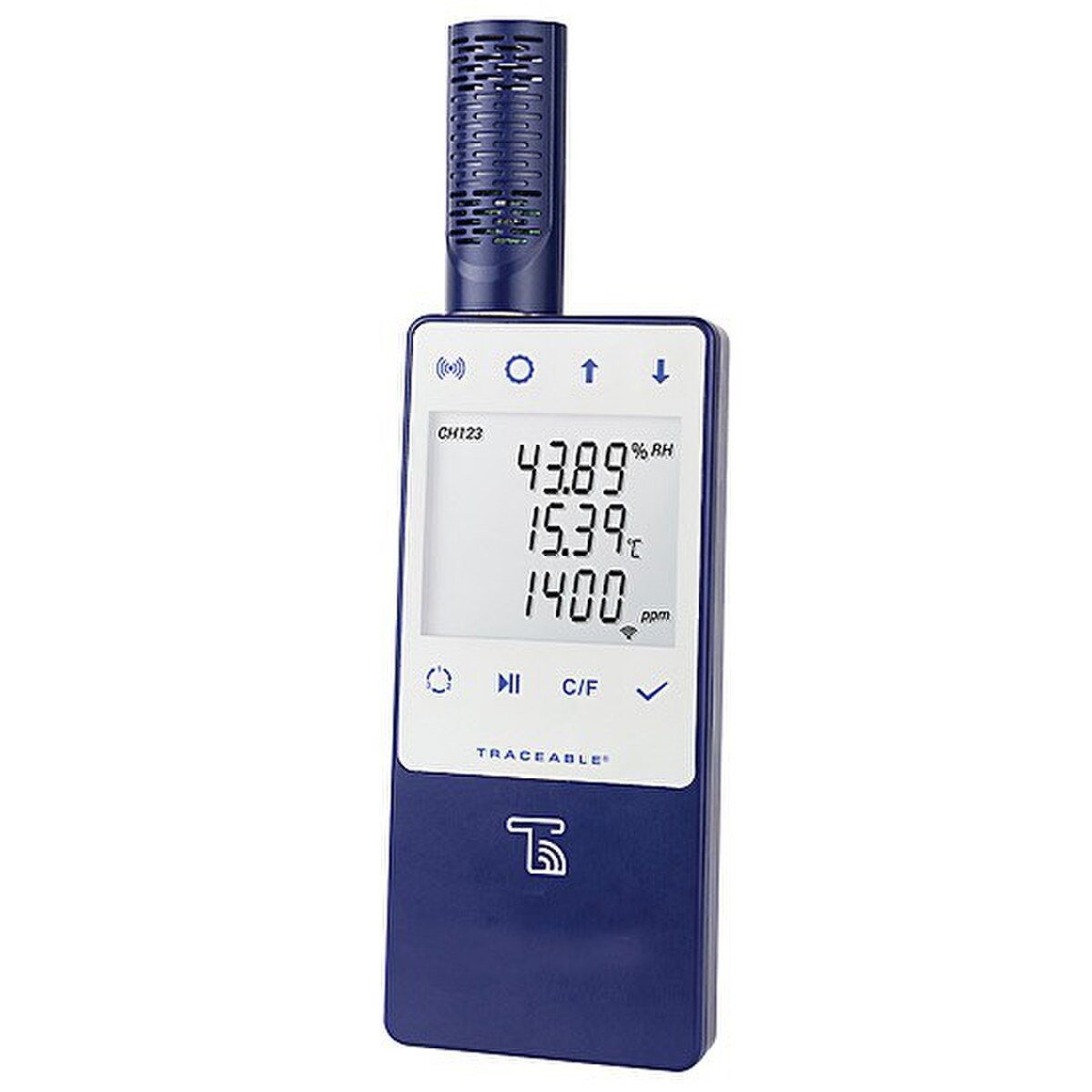

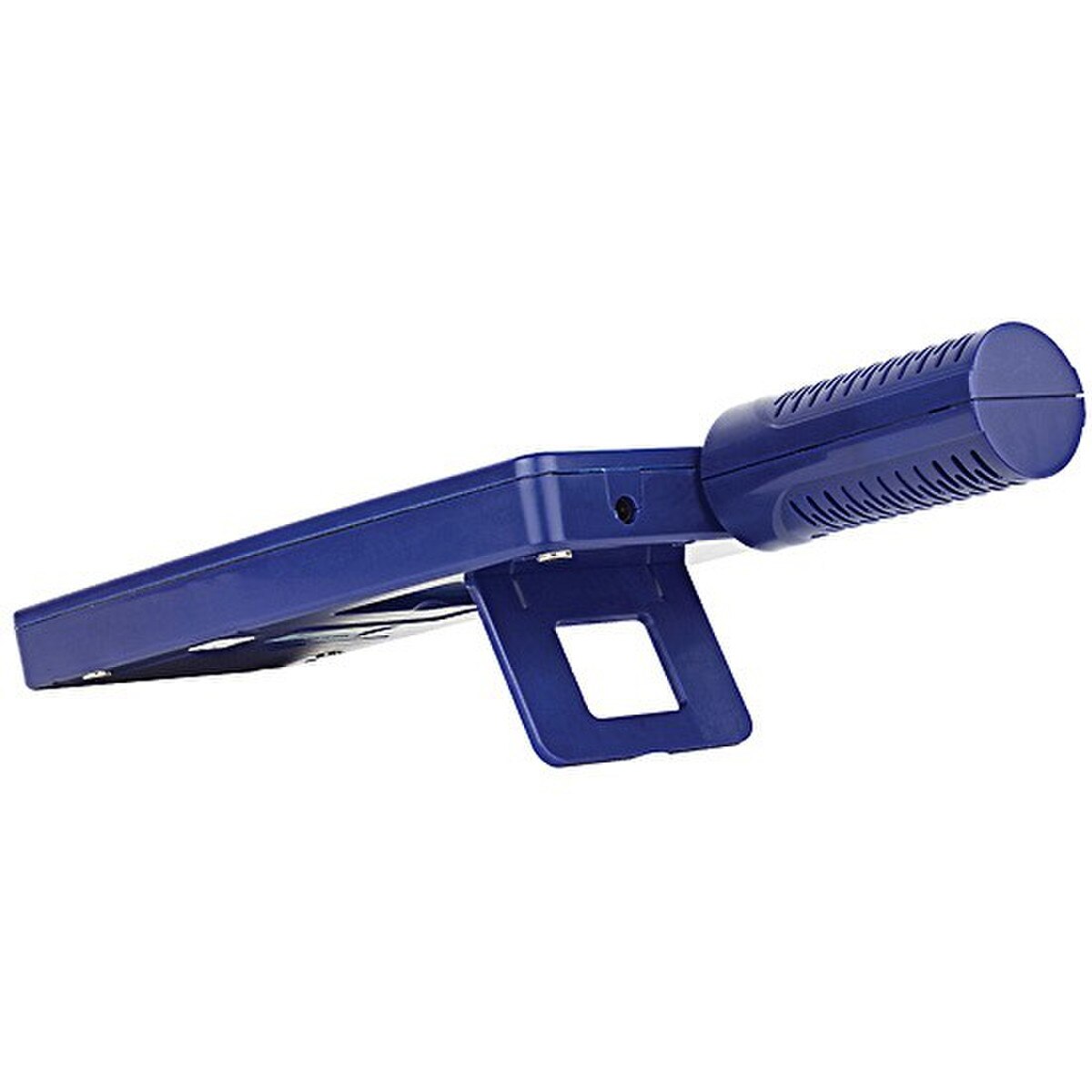

Traceable® 6525TR Ambient CO₂/Temperature/Humidity Wi‑Fi Data Logger Compatible with TraceableLIVE® Cloud Service
Images are for representation only. Actual product may differ in size, color or options.
Traceable® 6525TR Ambient CO₂/Temperature/Humidity Wi‑Fi Data Logger Compatible with TraceableLIVE® Cloud Service
The Traceable® 6525TR Wi‑Fi Data Logger provides continuous monitoring of ambient CO₂, temperature, and humidity with automatic cloud connectivity through the TraceableLIVE® platform. View real‑time conditions from your smartphone, tablet, or PC, receive instant alerts, and access historical data without installing any local software. The included multi‑sensor dongle measures CO₂ up to 10,000 ppm along with temperature and humidity for comprehensive environmental tracking.
Key Features
- Connect via smartphone, tablet, or PC using TraceableLIVE® wireless capability
- Cloud‑based interface provides email, text, and push notifications for out‑of‑range conditions
- No software required—web, Android™, and Apple® iOS visibility
- Dongle includes CO₂ (0–10,000 ppm), temperature, and humidity sensors
- Large dual‑line LCD displays current and Min/Max readings
- Includes NIST‑traceable certificate from ISO/IEC 17025:2017 A2LA‑accredited calibration laboratory
- Compatible with TraceableLIVE® subscription service
Technical Specifications
- Number of Channels: 1
- Cloud Connected: Yes
- Input Type: Dongle with CO₂/Temp/Humidity sensor
- Temperature Range: 32 to 122 °F (0 to 50 °C)
- Temperature Resolution: 0.01 °F/°C
- Temperature Accuracy: ±0.72 °F (±0.4 °C)
- Humidity Range: 0 to 95% RH
- Humidity Resolution: 0.0001% RH
- Humidity Accuracy: ±3% (5–75% RH), ±5% elsewhere
- CO₂ Range: 0 to 10,000 ppm
- CO₂ Resolution: 1 ppm
- CO₂ Accuracy: 4% of reading + 100 ppm
- Sampling Rate: 9 s logging; 15 min default Wi‑Fi transmission
- Memory Size: 672 records (7 days at 15‑min interval)
- Interface: Wi‑Fi (2.4 GHz only)
- Connections: USB
- Alarm Capacity: Stores up to 100 alarms
- Battery: 4 × AAA (included)
- Display: Dual‑line LCD
- Dimensions: 6" L × 2 3/4" W × 3/4" H (15.2 × 7 × 1.9 cm)
Applications
- Laboratories and cleanrooms
- Warehouses and storage environments
- Greenhouses and controlled‑environment agriculture
- Freezers, refrigerators, and environmental chambers
Each unit includes an individually numbered NIST‑traceable certificate from an ISO/IEC 17025:2017 A2LA‑accredited calibration laboratory, ensuring measurement traceability to SI units. Traceable® instruments undergo rigorous testing to deliver reliable, accurate performance without requiring separate calibration.
*TraceableLIVE® subscription required for cloud connectivity.
| Product Type: | Datalogging CO2 Meter |
| Brand: | Traceable |
| Product Line: | TraceableLIVE |
| Class: | WiFi Datalogging with Remote Notification |
| Range: | CO2: 0 to 10,000 ppm (1%) |
| Resolution: | CO2: 1 ppm |
| Accuracy: | CO2: 4% reading + 100 ppm |
| Temperature Range: | 0.00º to 50.00ºC (32.00 to 122.00ºF) |
| Temperature Resolution: | 0.01º |
| Temperature Accuracy: | ±0.4ºC |
| Humidity Range: | 0.0 to 95% RH |
| Humidity Resolution: | 0.1% RH |
| Humidity Accuracy: | ±3% RH between 5 to 75 % RH, ±5% RH otherwise |
| Housing: | high-impact, chemical-resistant ABS plastic |
| Retention Rate: | CO2: 5 min default, user-adjustable |
| Cable Length: | 9 feet |
| Max. Controlled Time Settings: | 100 Alarms |
| Includes: | Traceable® Certificate, 1 ambient sensor, Quick Start Guide, batteries, magnets, Velcro and wall mount |
| Notes: | Max Stored Records: 672 (7 days if set to 15 minutes interval) |
Reduce your Risk! Simplified Cloud Monitoring with TraceableLIVE
** TraceableLIVE® fully-compliant premium subscription meets 21 CFR Part 11 North American compliance and Annex 11 for Europe. All devices include ISO 17025 accredited calibration. If any of your TraceableLIVE® devices detect an out of range condition, lose connection to your network, begin to run low on battery, or if your device is due for calibration TraceableLIVE® will immediately send you alerts based on your settings.
- TraceableLIVE-capable products securely monitor your critical environments and notify your smartphone, tablet, or PC if anything goes wrong.
- Notifications for peace of mind - Everyone on your team can receive email, text, and push notifications on the environments you monitor.
- Remotely view data logging history, effortlessly generate reports, control alarm parameters.
- Traceable products come calibrated to NIST standards, helping you meet quality and regulatory requirements.
- Digital data reports sent with ease whenever you need them.
- Customize your report with location, device, date range, and report format.
| FREE |
|---|
| E-mail and push alarms |
| 1 user only |
| 1 month data storage |
| Up to 3 devices |
| Calibration due and other notifications |
| STANDARD |
|---|
| 1 YR - 6650 (63003-36) | 2 YR - 6651 (63003-37) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| SMS Text notifications available for a fee in the Traceable App |
| PREMIUM |
|---|
| 1 YR - 6652 (63003-38) | 2 YR - 6653 (63003-39) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| 21 CFR Part 11 compliance** |
| SMS text notifications included |
** TraceableLIVE® fully-compliant premium subscription meets 21 CFR Part 11 North American compliance and Annex 11 for Europe. All devices include ISO 17025 accredited calibration. If any of your TraceableLIVE® devices detect an out of range condition, lose connection to your network, begin to run low on battery, or if your device is due for calibration TraceableLIVE® will immediately send you alerts based on your settings.
*** EACH UNIT WILL REQUIRE A SUBSCRIPTION ***
