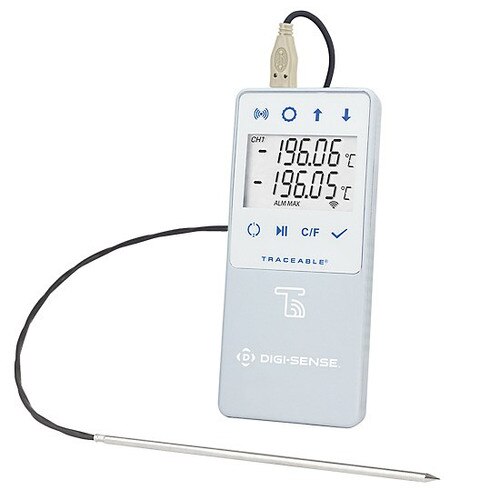

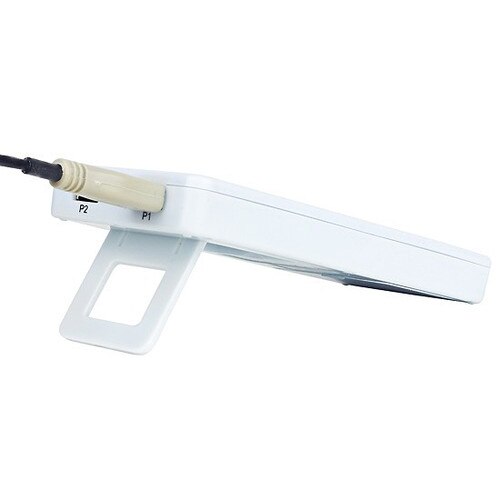

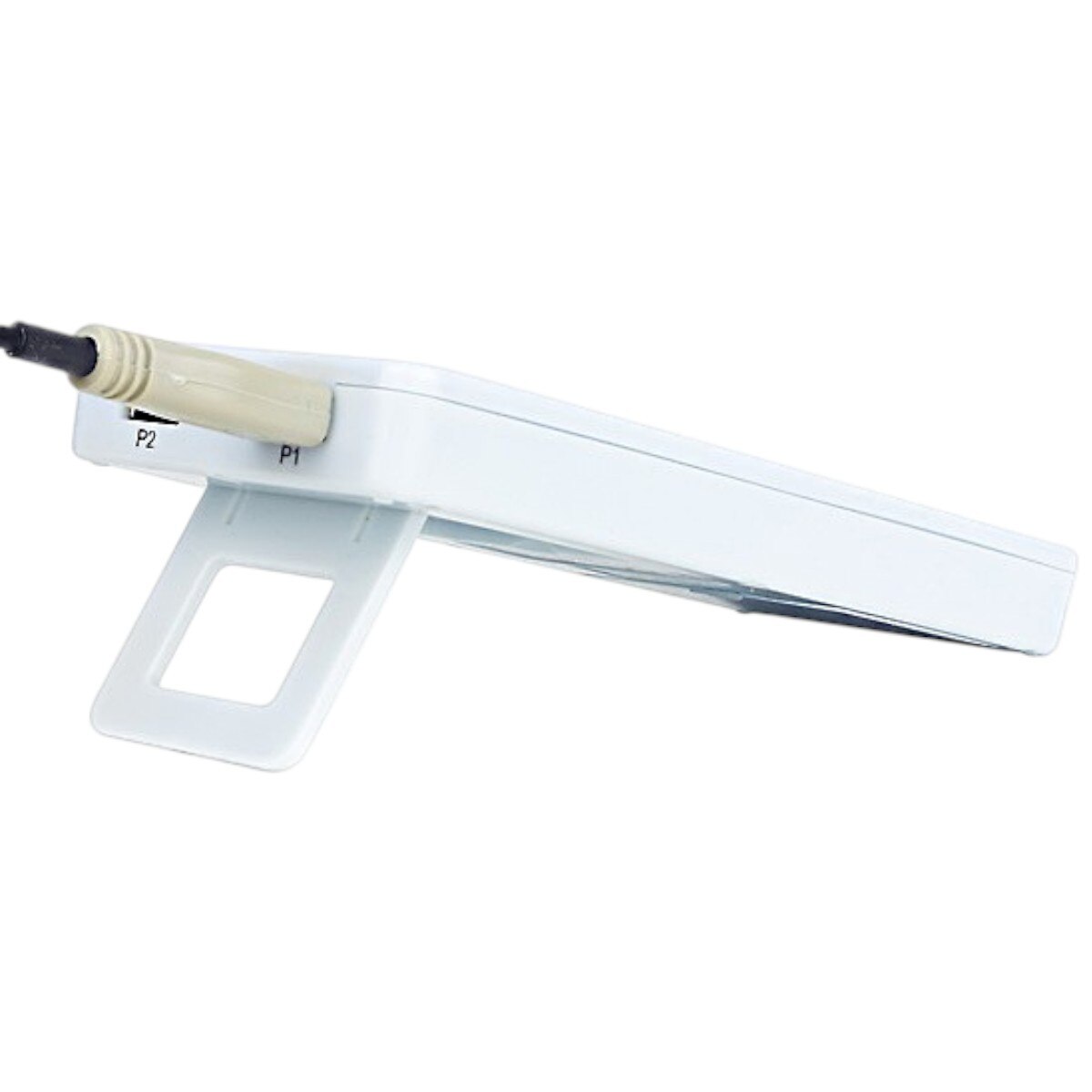

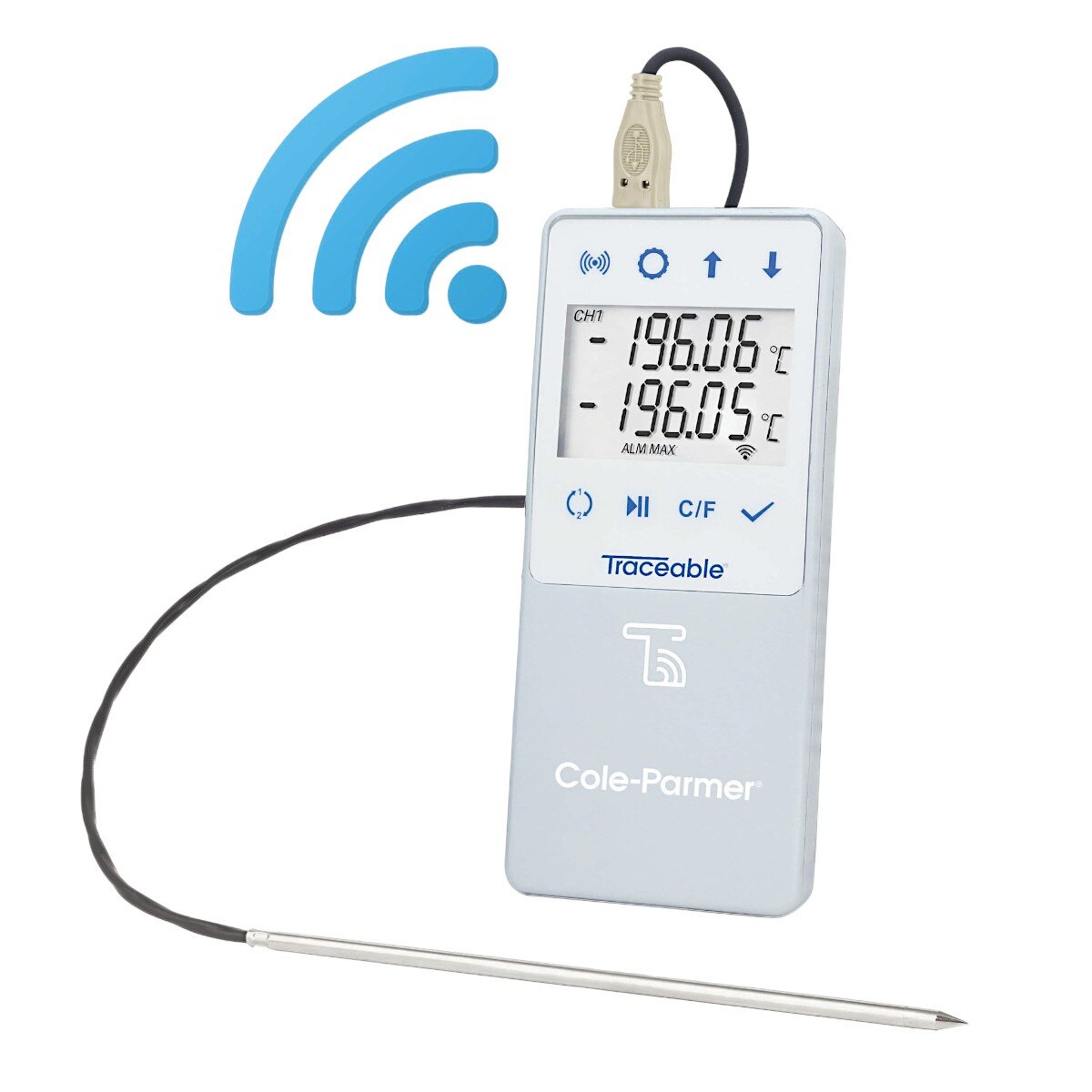

Traceable® 6512TR Liquid Nitrogen Wi‑Fi Data Logger Compatible with TraceableLIVE® Cloud Service; 1 SS Probe
Images are for representation only. Actual product may differ in size, color or options.
Traceable® 6512TR Liquid Nitrogen Wi‑Fi Data Logger Compatible with TraceableLIVE® Cloud Service; 1 SS Probe
The Traceable® 6512TR Liquid Nitrogen Wi‑Fi Data Logger provides continuous, cloud‑connected monitoring for cryogenic environments, including liquid nitrogen freezers, vapor‑phase LN₂ storage, and other ultra‑cold applications. Designed for safeguarding high‑value biological and pharmaceutical materials, this device transmits real‑time temperature data via Wi‑Fi and delivers instant alerts for out‑of‑range conditions. No local software is required—data is accessible from any smartphone, tablet, or PC.
Model & Ordering Information
- Model: 6512TR
- Item: 18001‑08
- Description: Liquid Nitrogen Wi‑Fi Data Logger; 1 Stainless Steel RTD Probe
Key Features
- Wi‑Fi connectivity: Cloud‑connected via TraceableLIVE® subscription
- Remote access: View data on web, Android™, and Apple® iOS devices
- Notifications: Email, text, and push alerts for excursions, connectivity loss, or low battery
- Display: Dual‑line LCD with current and Min/Max readings
- Includes: One stainless steel RTD probe, magnetic strip, hook‑and‑loop mount, bench stand, batteries, and NIST‑traceable certificate
- Warranty: 1 year
Technical Specifications
- Number of Channels: 1
- Input Type: Stainless steel RTD probe
- Temperature Range: –328 to 221°F (–200 to 105°C)
- Temperature Accuracy: ±0.4°F (±0.25°C)
- Temperature Resolution: 0.01°
- Sampling Rate: 12 seconds (data logging); 15 minutes default Wi‑Fi transmission
- Memory Capacity: 672 records (≈7 days at 15‑minute intervals)
- Alarm Capacity: 100 stored maximum
- Interface: Wi‑Fi and USB
- Battery Type: 4 × AAA (included)
- Display Type: Dual‑line LCD
- Dimensions (H × W × D): 6 × 2.75 × 0.75 in
Applications
- Liquid nitrogen freezers (–196°C)
- Vapor‑phase LN₂ storage
- Cryogenic biological sample preservation
- Pharmaceutical and clinical ultra‑cold environments
Each unit includes an individually numbered NIST‑traceable certificate from an ISO/IEC 17025:2017 A2LA‑accredited calibration laboratory, ensuring measurement traceability to SI units. TraceableLIVE® Wireless Technology enables 24/7 remote monitoring, reporting, and multi‑user access for critical environments.
*Requires a TraceableLIVE® subscription.*
| Product Type: | Datalogging Temperature Meter |
| Brand: | Traceable |
| Product Line: | TraceableLIVE |
| Class: | WiFi Datalogging with Remote Notification |
| Temperature Range: | -200˚C to 105˚C ( -328 to 221ºF) |
| Temperature Resolution: | 0.01º |
| Temperature Accuracy: | ±0.25ºC |
| Housing: | high-impact, chemical-resistant ABS plastic |
| Cable Length: | 10 feet |
| Calibration Points: | -196°C, -80°C, 0°C and 100°C |
| Overall Dimensions: | 6 x 2-3/4 x 3/4 inches |
| Includes: | Traceable® Certificate, 1 Stainless Steel probe, Quick Start Guide, batteries, magnets, Velcro and wall mount |
Reduce your Risk! Simplified Cloud Monitoring with TraceableLIVE
** TraceableLIVE® fully-compliant premium subscription meets 21 CFR Part 11 North American compliance and Annex 11 for Europe. All devices include ISO 17025 accredited calibration. If any of your TraceableLIVE® devices detect an out of range condition, lose connection to your network, begin to run low on battery, or if your device is due for calibration TraceableLIVE® will immediately send you alerts based on your settings.
- TraceableLIVE-capable products securely monitor your critical environments and notify your smartphone, tablet, or PC if anything goes wrong.
- Notifications for peace of mind - Everyone on your team can receive email, text, and push notifications on the environments you monitor.
- Remotely view data logging history, effortlessly generate reports, control alarm parameters.
- Traceable products come calibrated to NIST standards, helping you meet quality and regulatory requirements.
- Digital data reports sent with ease whenever you need them.
- Customize your report with location, device, date range, and report format.
| FREE |
|---|
| E-mail and push alarms |
| 1 user only |
| 1 month data storage |
| Up to 3 devices |
| Calibration due and other notifications |
| STANDARD |
|---|
| 1 YR - 6650 (63003-36) | 2 YR - 6651 (63003-37) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| SMS Text notifications available for a fee in the Traceable App |
| PREMIUM |
|---|
| 1 YR - 6652 (63003-38) | 2 YR - 6653 (63003-39) E-mail and push alarms |
| Unlimited Team Members |
| Unlimited Data Storage |
| Unlimited Devices |
| Calibration due and other notifications |
| 21 CFR Part 11 compliance** |
| SMS text notifications included |
** TraceableLIVE® fully-compliant premium subscription meets 21 CFR Part 11 North American compliance and Annex 11 for Europe. All devices include ISO 17025 accredited calibration. If any of your TraceableLIVE® devices detect an out of range condition, lose connection to your network, begin to run low on battery, or if your device is due for calibration TraceableLIVE® will immediately send you alerts based on your settings.
*** EACH UNIT WILL REQUIRE A SUBSCRIPTION ***
