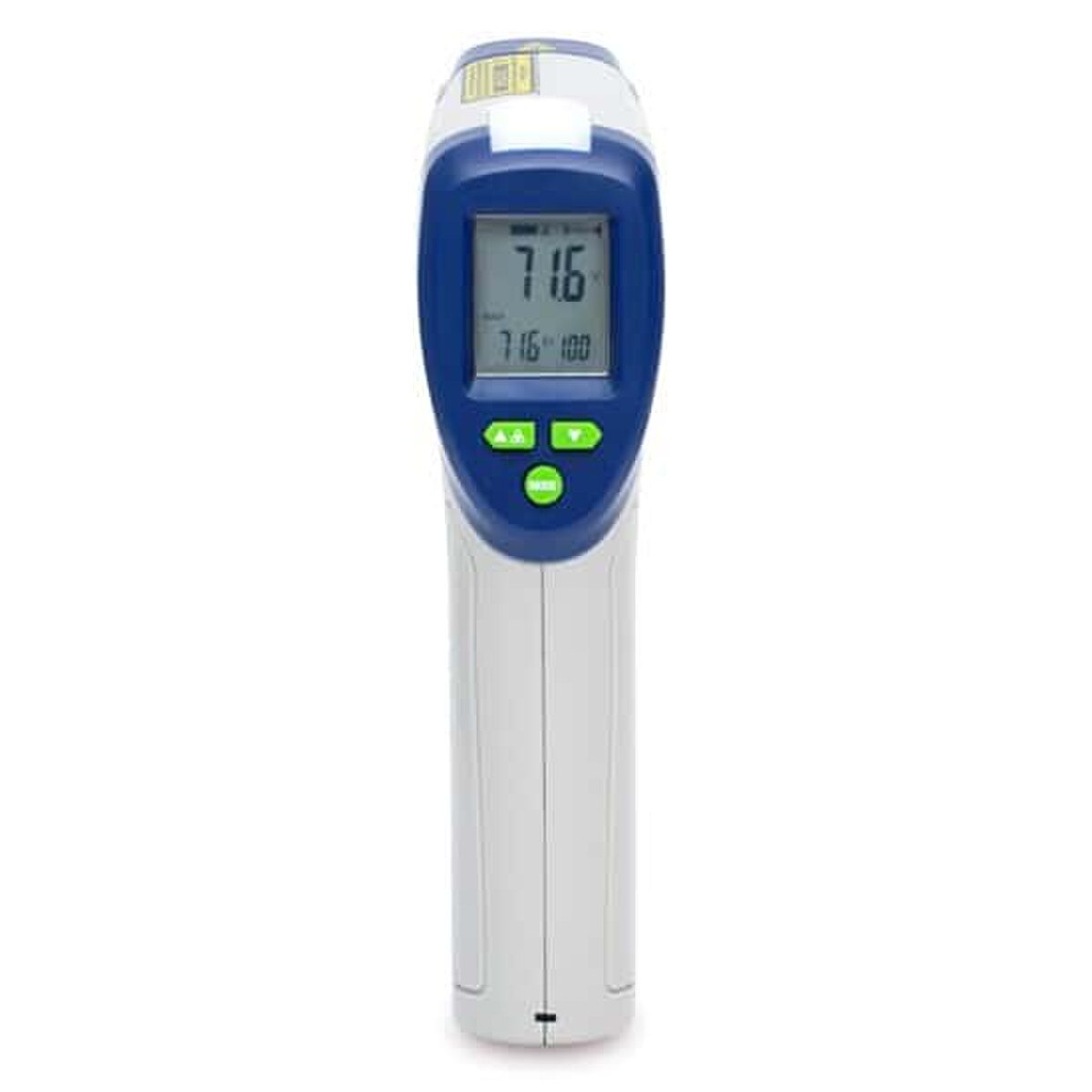

Traceable® 9005TR Infrared Thermometer with Adjustable Emissivity and Alarm, 12:1
Images are for representation only. Actual product may differ in size, color or options.
Traceable® 9005TR Infrared Thermometer with Adjustable Emissivity and Alarm, 12:1
The Traceable® 9005TR Infrared Thermometer provides fast, non‑contact surface temperature measurements with a comfortable pistol‑grip design. Adjustable emissivity, a 12:1 distance‑to‑spot ratio, and a user‑settable temperature alarm make it ideal for industrial, laboratory, and food‑safety applications requiring precise and repeatable readings.
Model & Ordering Information
- Model: 9005TR
- Item: 20250‑05
- Description: Infrared Thermometer with Adjustable Emissivity and Alarm, 12:1
Key Features
- Pistol‑grip handle for comfortable, one‑handed operation
- Non‑contact IR measurement for safe, quick surface checks
- Trigger lock for continuous scanning
- Adjustable emissivity from 0.10 to 1.0
- 12:1 distance‑to‑spot ratio
- User‑adjustable temperature alarm with indicator light
- Backlit LCD for low‑light environments
- Includes NIST‑traceable certificate from A2LA‑accredited (1750.01) laboratory
- 1‑year warranty
Technical Specifications
- Temperature Range: –31 to 1000°F (–35 to 537°C)
- Accuracy: ±2.5% of reading or ±4.5°F (±2.5°C), whichever is greater
- Resolution: 0.1°; 1° above 1000°
- Distance‑to‑Spot Ratio: 12:1
- Emissivity: Adjustable 0.10 to 1.0
- Sighting: Single‑point Class II laser
- Response Time: <300 ms
- Display: Backlit LCD
- Alarm: User‑adjustable high/low alarm
- Battery: 1 × 9V (included)
- Dimensions (L × W × H): 7 × 0.75 × 1.5 in
Applications
- Industrial equipment diagnostics
- Food safety and HACCP workflows
- Environmental and field measurements
- General laboratory surface temperature checks
Each unit includes an individually numbered NIST‑traceable certificate from an ISO/IEC 17025:2017 A2LA‑accredited calibration laboratory, ensuring measurement traceability to SI units. Traceable® instruments undergo rigorous testing to deliver reliable, accurate performance without requiring separate calibration.
| Product Type: | Infrared Thermometer |
| Brand: | Traceable |
| Temperature Range: | –31 to 1000°F (–35 to 537°C) |
| Temperature Resolution: | 0.1° below 1000° or 1° above 1000° |
| Temperature Accuracy: | From -35 to 20°C: ±2.5°C, 20 to 300°C: ±1.0% ± 1 of reading, 300 to 537°C: ±1.5% ± 1 of reading; From -58 to 68°F: ±4.5°F, 68 to 572°F: ±1.0% ± 1 of reading, 572 to 1000°F: ±1.5% ± 1 of reading |
| Field of View: | 12:1 |
| Emissivity: | Adjustable, 0.10 to 1.0 |
| Display: | LCD, backlit |
| Warranty: | 2 years |
| Includes: | One 9 V battery and NIST-traceable calibration report with data supplied by InnoCal. |
