CPI-20250-13
Images are for representation only. Actual product may differ in size, color or options.

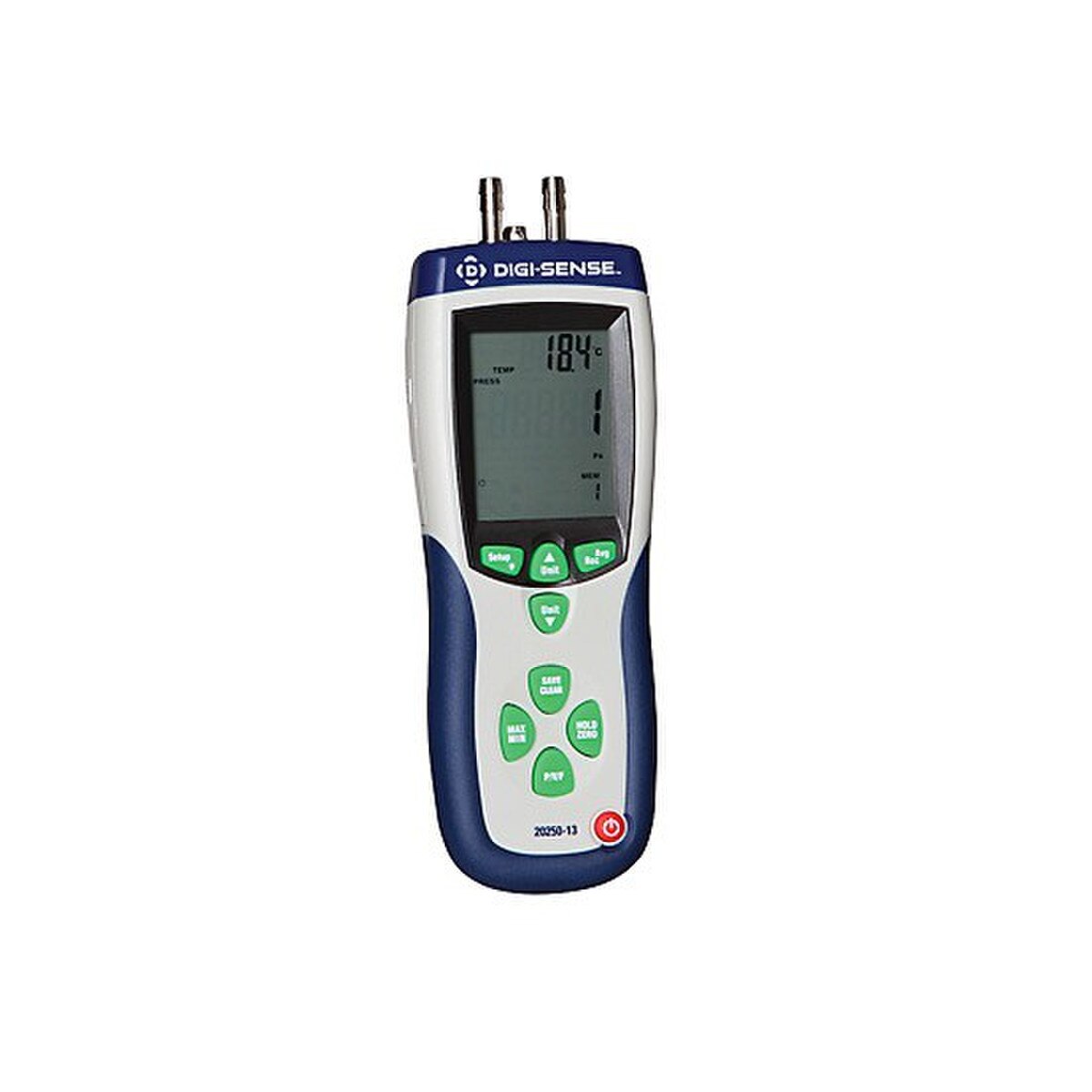

Digi-Sense Digital Pressure and Flow Meter, with a NIST Traceable Calibration Certificate
The Digi-Sense pressure and flow meter is designed to measure differential and static pressure, and calculate air velocity and airflow in ductwork. Ideal for evaluating of duct performance and proper airflow, air filter monitoring, adjusting motor speeds in HVAC systems, and ensuring safe working conditions in buildings and schools. Plus the NIST-traceable precalibration means you get reliable measurements right out of the box, saving you time and money!
The meter is easily configured via the keypad operation. Max/Min and Hold functions allow you to control measurement readings. Upload performance data directly to your computer via the built-in USB interface. The included software allows you to view measurement data in graphical formats as well as record and download data to your PC for further analysis. Auto power-off mode after twenty minutes of nonuse extends battery life.
Key features include:
The Digi-Sense pressure and flow meter is designed to measure differential and static pressure, and calculate air velocity and airflow in ductwork. Ideal for evaluating of duct performance and proper airflow, air filter monitoring, adjusting motor speeds in HVAC systems, and ensuring safe working conditions in buildings and schools. Plus the NIST-traceable precalibration means you get reliable measurements right out of the box, saving you time and money!
The meter is easily configured via the keypad operation. Max/Min and Hold functions allow you to control measurement readings. Upload performance data directly to your computer via the built-in USB interface. The included software allows you to view measurement data in graphical formats as well as record and download data to your PC for further analysis. Auto power-off mode after twenty minutes of nonuse extends battery life.
Key features include:
- Easily determine the performance of your heating and cooling systems
- Reliable measurements, guaranteed!
- Precalibrated to NIST-traceable standards.
- Large, multiline backlit LCD
- Save and recall 99 sample readings per parameter
- Time clock on Max/Min/Avg provides time reference
| Product Type: | Digital Pressure and Flow Meter |
| Brand: | Digi-Sense |
| Range: | For Pressure: ±50 mbar (differential) or 0-50 mbar (static); For Air Velocity: 200 to 15,733 ft/min; For Airflow: 0 to 99.999 cfm; For Temperature: 32 to 122°F or 0 to 50°C |
| Resolution: | For Pressure: 0.01 mbar; For Air Velocity: 1 ft/min; For Airflow: 0.0001 cfm; For Temperature: 0.1°F |
| Accuracy: | For Pressure: ±0.3% Full-Scale; For Temperature: ±2.0°F or ±1.0°C |
| Max Pressure (PSI): | 0.7252 |
| Display: | LCD, backlit |
| Units of Measure: | For Pressure: psi, mbar, in. H2O, mm H2O, Pa; For Air Velocity: m/s, ft/min, km/hr, mph, knots ; For Airflow: cfm, cmm ; For Temperature: °C, °F |
| Warranty: | 2 years |
| Overall Dimensions: | 8 x 3 x 2 inches |
| Includes: | Pitot tube, two rubber hoses for use with pitot tube, USB cable, software, ABS plastic carrying case, one 9V battery, and NIST-traceable calibration report with data supplied by InnoCal. |
