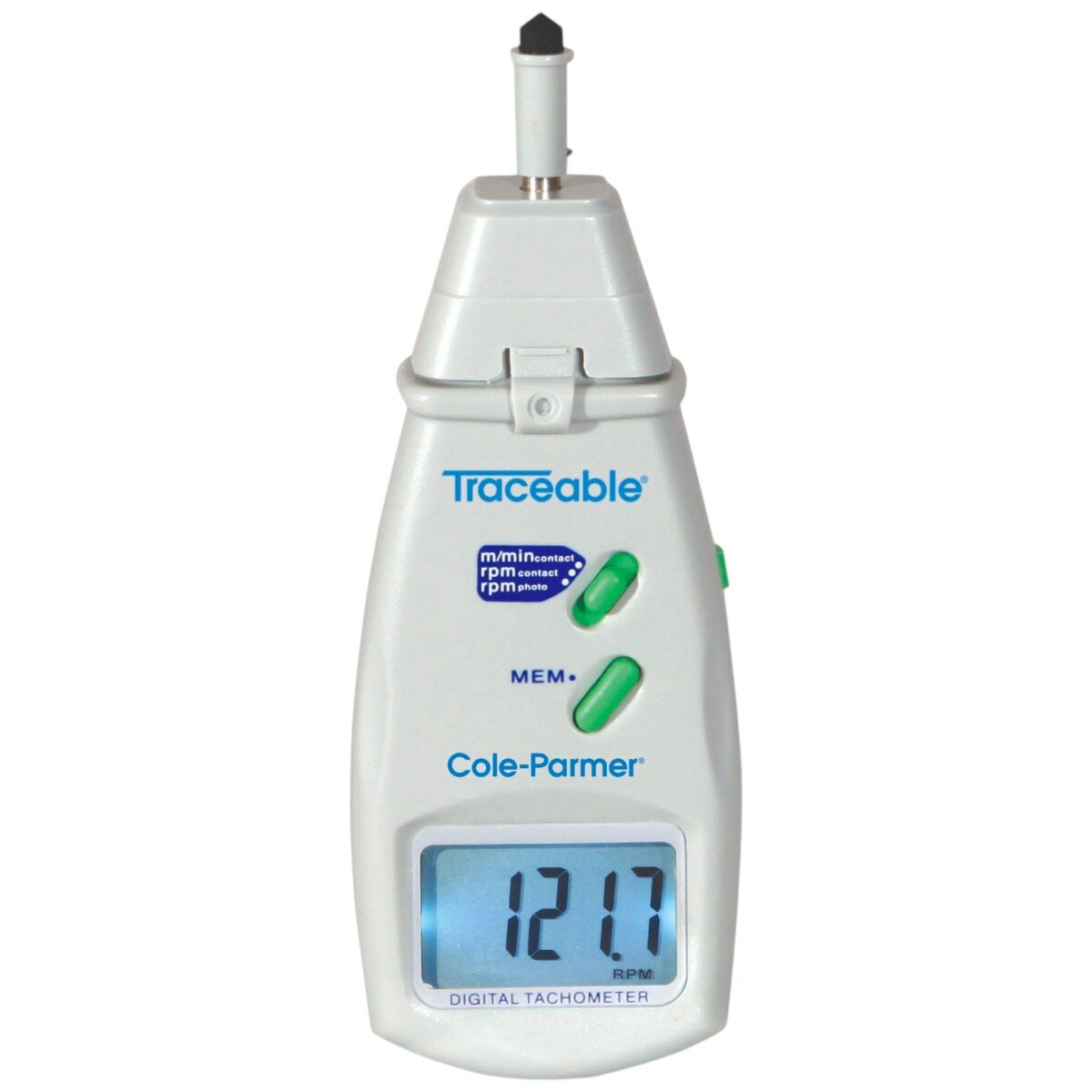

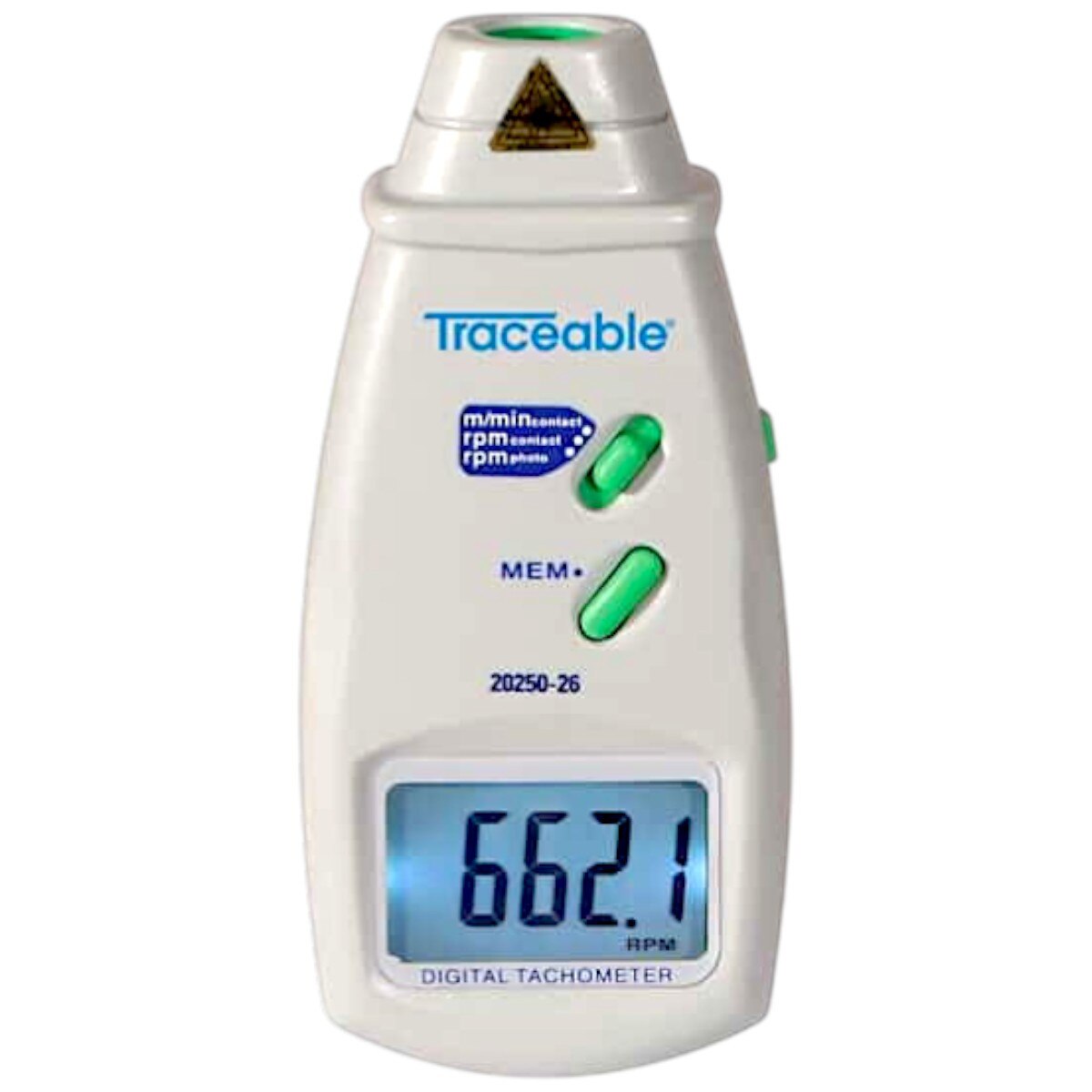

Traceable® 9010TR Digital Contact/Photo Tachometer
Images are for representation only. Actual product may differ in size, color or options.
Traceable® 9010TR Digital Contact/Photo Tachometer
This Traceable® Digital Contact/Photo Tachometer measures rotational speed using either non-contact photo mode or direct-contact adapters. The optical sensor provides fast, accurate RPM readings from a safe distance, while the contact adapters allow measurement of surface speed and shaft rotation. The unit features Min/Max/Avg functions, data hold, and a large LCD for clear viewing. Each tachometer is supplied with a NIST-traceable calibration certificate issued by an A2LA-accredited ISO/IEC 17025 laboratory.
- Item Number: 20250-26
- Model: 9010TR
- Measurement Modes: Photo (non-contact) and contact
- Photo (Non-Contact) Range: 6 to 99,999 RPM
- Contact RPM Range: 6 to 19,999 RPM
- Surface Speed Ranges: 0.2 to 6,560 ft/min; 0.05 to 1,999 m/min
- Resolution: 0.1 RPM (low range), 1 RPM (high range)
- Accuracy: ±0.05% of reading + 1 digit
- Functions: Min/Max/Avg; Data Hold; Auto Power-Off
- Display: Large, high-visibility LCD
- Included: Contact adapter set, reflective tape, carrying case, batteries, NIST-traceable calibration certificate
- Warranty: 1 year
| Product Type: | Digital Contact/Photo Tachometer |
| Brand: | Traceable |
| Range: | Contact: 0.5 to 19,999; Photo: 2.5 to 99,999 |
| Resolution: | Contact: 0.1 rpm (0.5 to 999.9 rpm); 1 rpm (over 1000 rpm; Photo:0.1 rpm (2.5 to 999.9 rpm); 1 rpm (over 1000 rpm) |
| Accuracy: | ±0.05% + 1 digit (rpm) |
| Speed: | 0.2 to 6561 ft/min; 0.05 to 1999.9 m/min |
| Power Supply: | Four AA Batteries |
| Display: | LCD, backlit |
| Overall Dimensions: | 8-1/4" x 2-7/8" x 1-1/2" (21 x 7.4 x 3.7 cm) |
| Includes: | Contact converter, surface speed wheel, rpm contact adapter, large male rpm rubber cone, small male rpm rubber cone, female rpm rubber cone, reflective tape (23-5/8”, 60 cm), four set screws, carrying case, four AA batteries, and NIST-traceable calibration report with data supplied by InnoCal. |
