Traceable 9012, Temperature/RH Touch Screen Recorder with a NIST Calibration Certificate
Images are for representation only. Actual product may differ in size, color or options.
Traceable Temperature/RH Touch Screen Recorder with a NIST Traceable® Calibration Certificate (each)

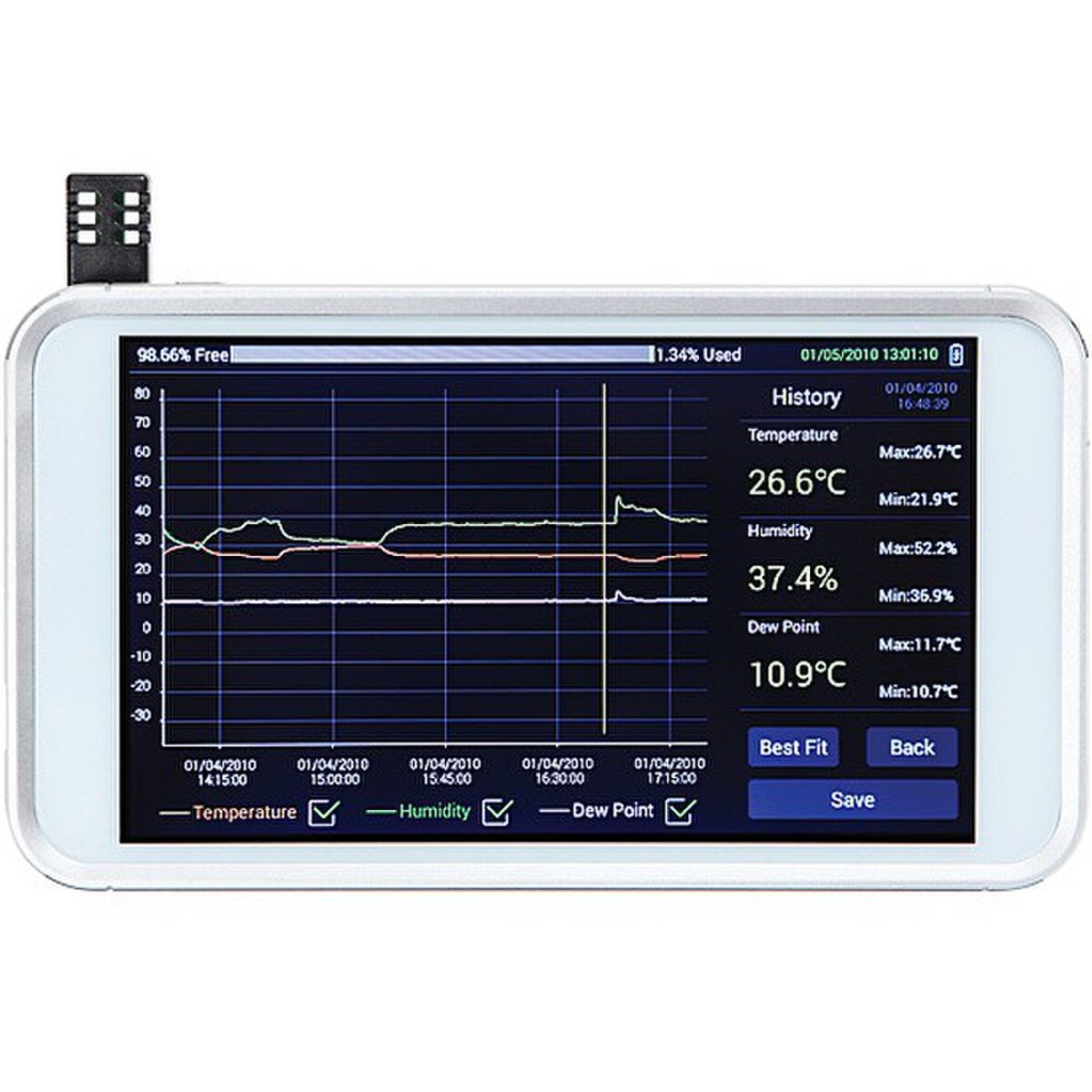

This tablet based instrument measures, displays, and logs temperature, relative humidity and dew point conditions. Measured values are simultaneously displayed both graphically and digitally on a high-resolution color touch-screen display. Monitor conditions related to pharmaceutical, food, and chemical processing and storage. Also ideal for use in greenhouses, museums, laboratories and warehouses.

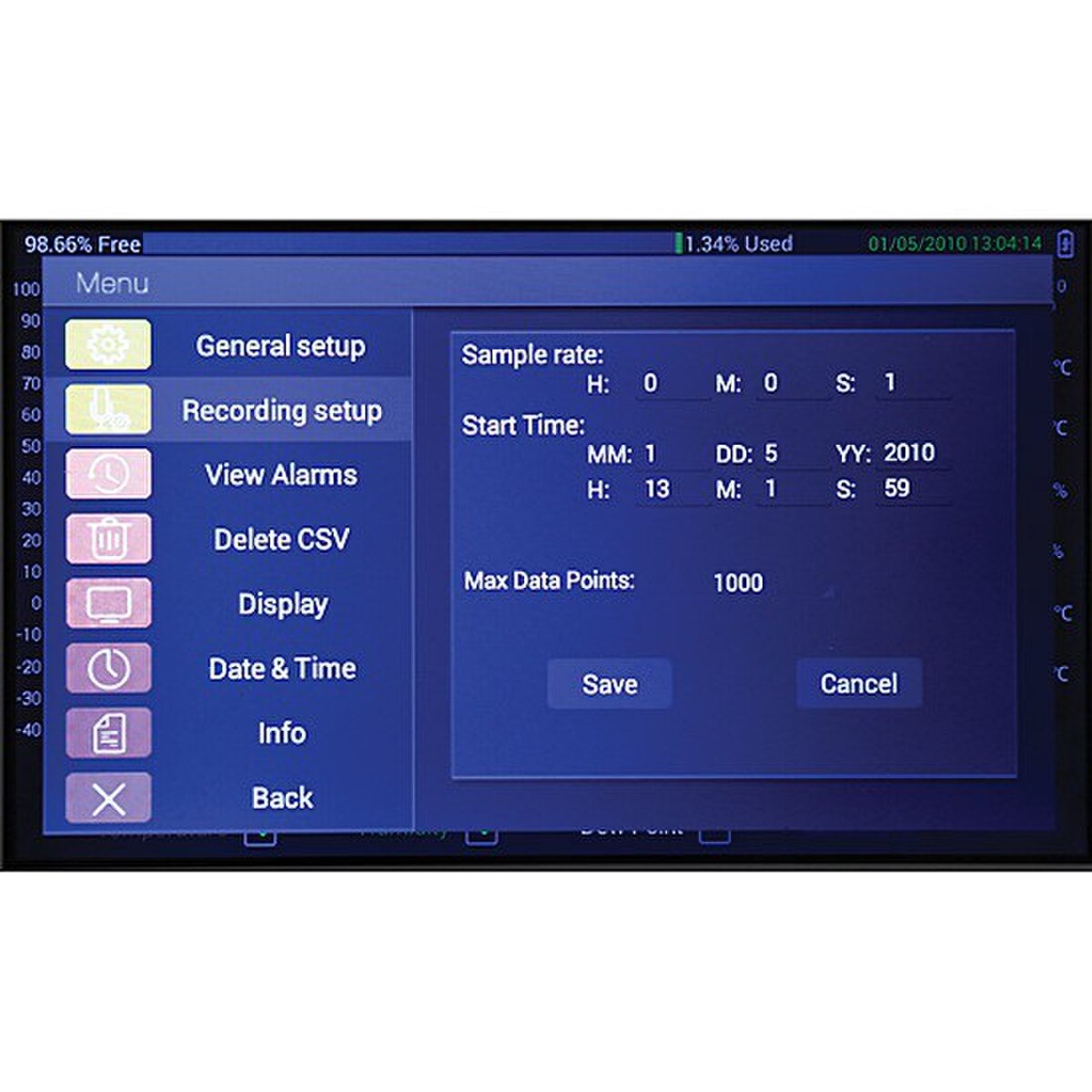

Operation is very simple out of the box. Push the on/off button and the resident operating software self-boots. Set up data logging attributes including sample frequency, sample size, alarm settings, and units of measure through an intuitive touchscreen menu. The instrument can be placed in real-time mode or set to start logging at some future time.

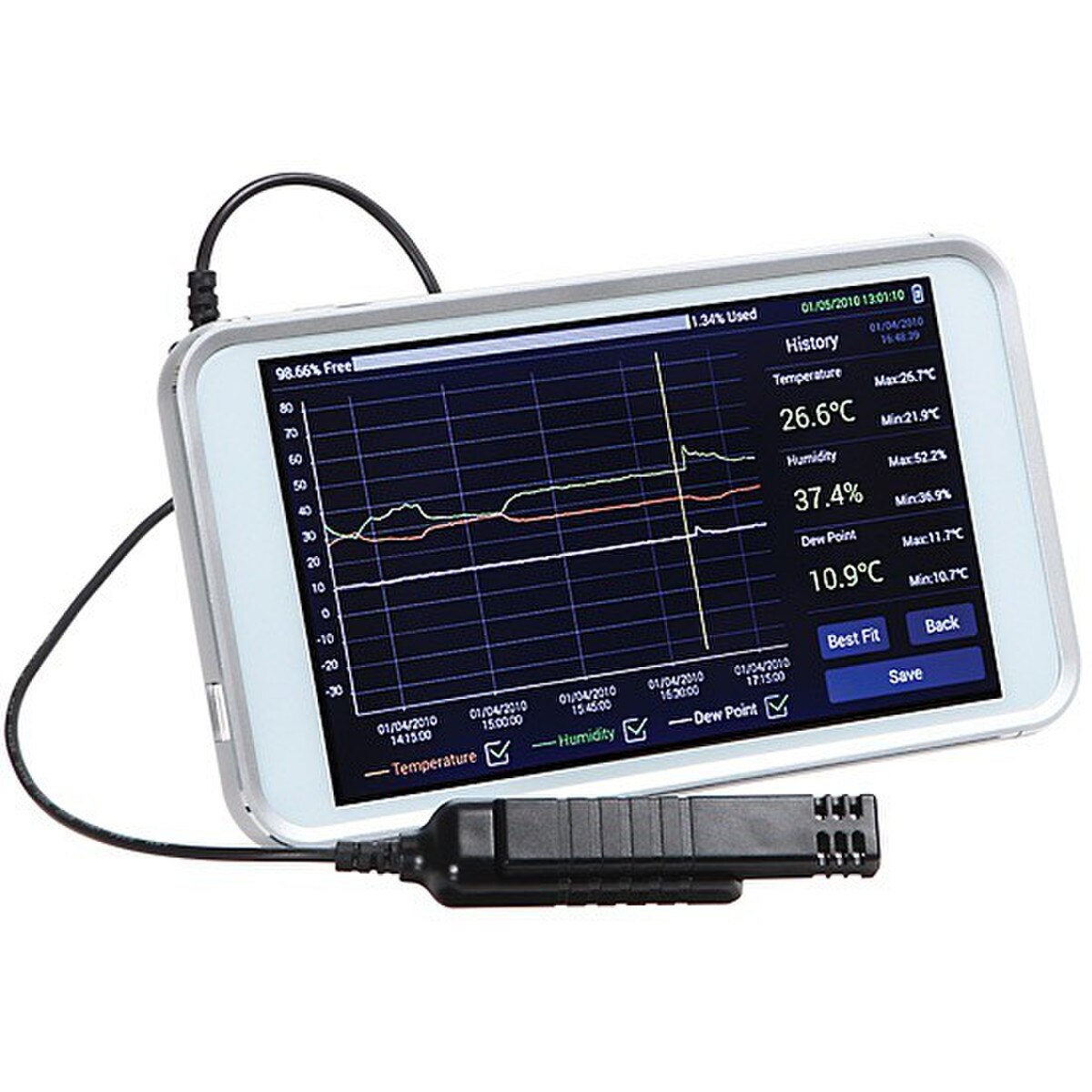

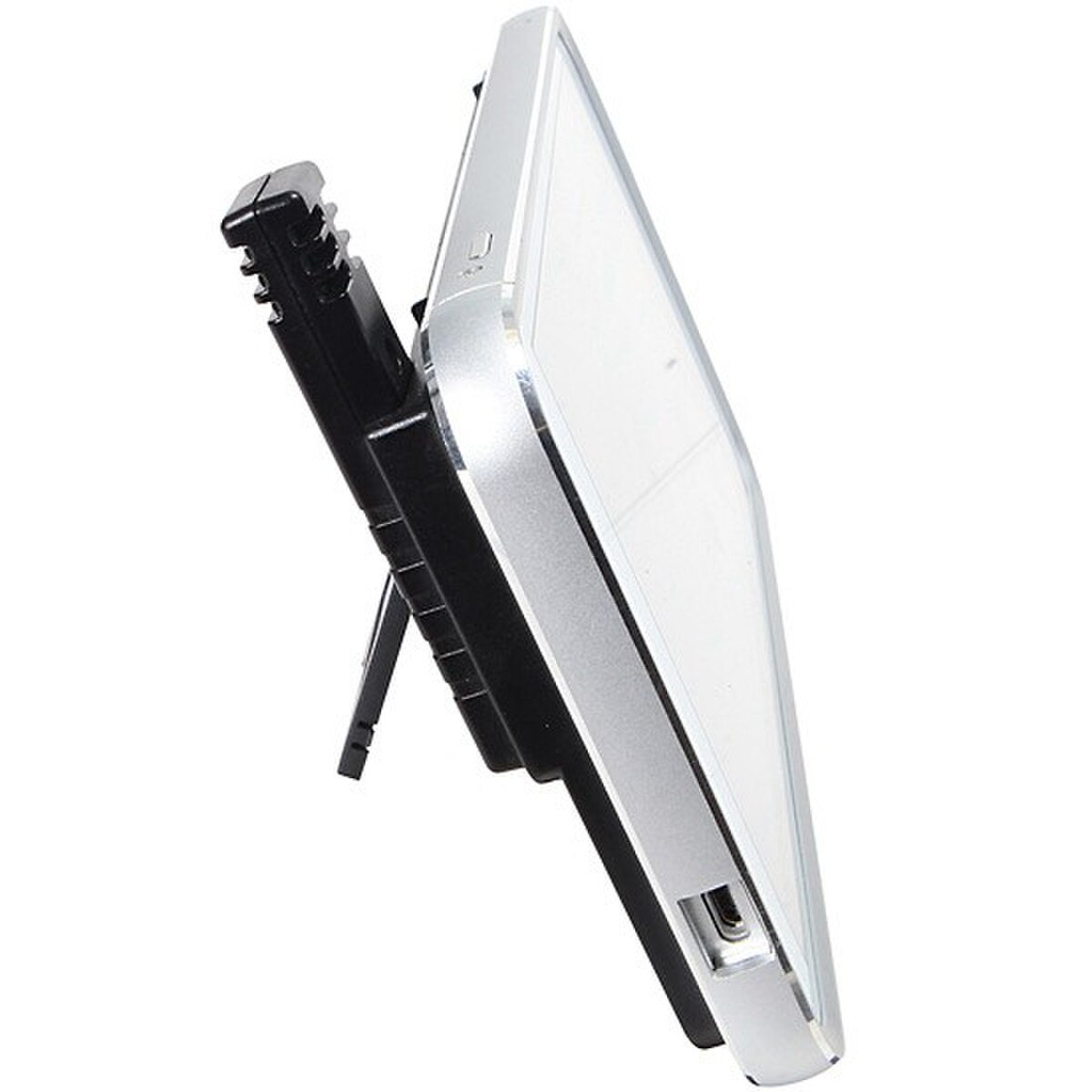

The instrument mounts on a wall using included bracket. A built-in stand allows the instrument to also be set on a horizontal surface. The temperature/RH sensor plugs directly onto the back of the tablet or can be positioned remotely with use of a 6’ extension cable which is included. Additional 20250-47 extension cables, sold separately, can be linked to extend the sensor up to 9’ from the instrument.
Monitor and log environmental conditions in food, pharmaceutical, laboratory, green house, museum or other sensitive areas.
A 110VAC adapter powers the instrument and a 2500mAH on-board battery provides backup up to six hours in case of power interruption.
This tablet based instrument measures, displays, and logs temperature, relative humidity and dew point conditions. Measured values are simultaneously displayed both graphically and digitally on a high-resolution color touch-screen display. Monitor conditions related to pharmaceutical, food, and chemical processing and storage. Also ideal for use in greenhouses, museums, laboratories and warehouses.
Operation is very simple out of the box. Push the on/off button and the resident operating software self-boots. Set up data logging attributes including sample frequency, sample size, alarm settings, and units of measure through an intuitive touchscreen menu. The instrument can be placed in real-time mode or set to start logging at some future time.
The instrument mounts on a wall using included bracket. A built-in stand allows the instrument to also be set on a horizontal surface. The temperature/RH sensor plugs directly onto the back of the tablet or can be positioned remotely with use of a 6’ extension cable which is included. Additional 20250-47 extension cables, sold separately, can be linked to extend the sensor up to 9’ from the instrument.
Monitor and log environmental conditions in food, pharmaceutical, laboratory, green house, museum or other sensitive areas.
A 110VAC adapter powers the instrument and a 2500mAH on-board battery provides backup up to six hours in case of power interruption.
- Measures, logs, and displays temperature, humidity, and dew point
- Removable sensor for local or remote measurements using extension cable included
- Wall mount or desk mount operation
- Resident self-booting software, no installation necessary
- Comes with NIST calibration
- Stored data downloads to computer via USB cable provided in CSV format
| Product Type: | Temperature/RH Screen Recorder |
| Brand: | Traceable |
| Capacity: | 8 GB |
| Accuracy: | 2.0% (at 25 degrees C, 20% to 80% RH) 2.5 (at other ranges) |
| Temperature Range: | 14 to 176°F (-10 to 80°C) |
| Temperature Resolution: | 0.1 °F/°C |
| Temperature Accuracy: | 0.9 °F/0.5 °C |
| Humidity Range: | 0 - 100% RH |
| Humidity Resolution: | 0.1% RH |
| Humidity Accuracy: | 2.0% (at 25 degrees C, 20% to 80% RH) 2.5 (at other ranges) |
| Power Supply: | Main power cord / Internal rechargeable battery |
| Display: | Touchscreen |
| Interface: | USB |
| Overall Dimensions: | 4 1/4 x 7 5/8 x 5/8 inches (10.8 x 19.3 x 1.6 cm) |

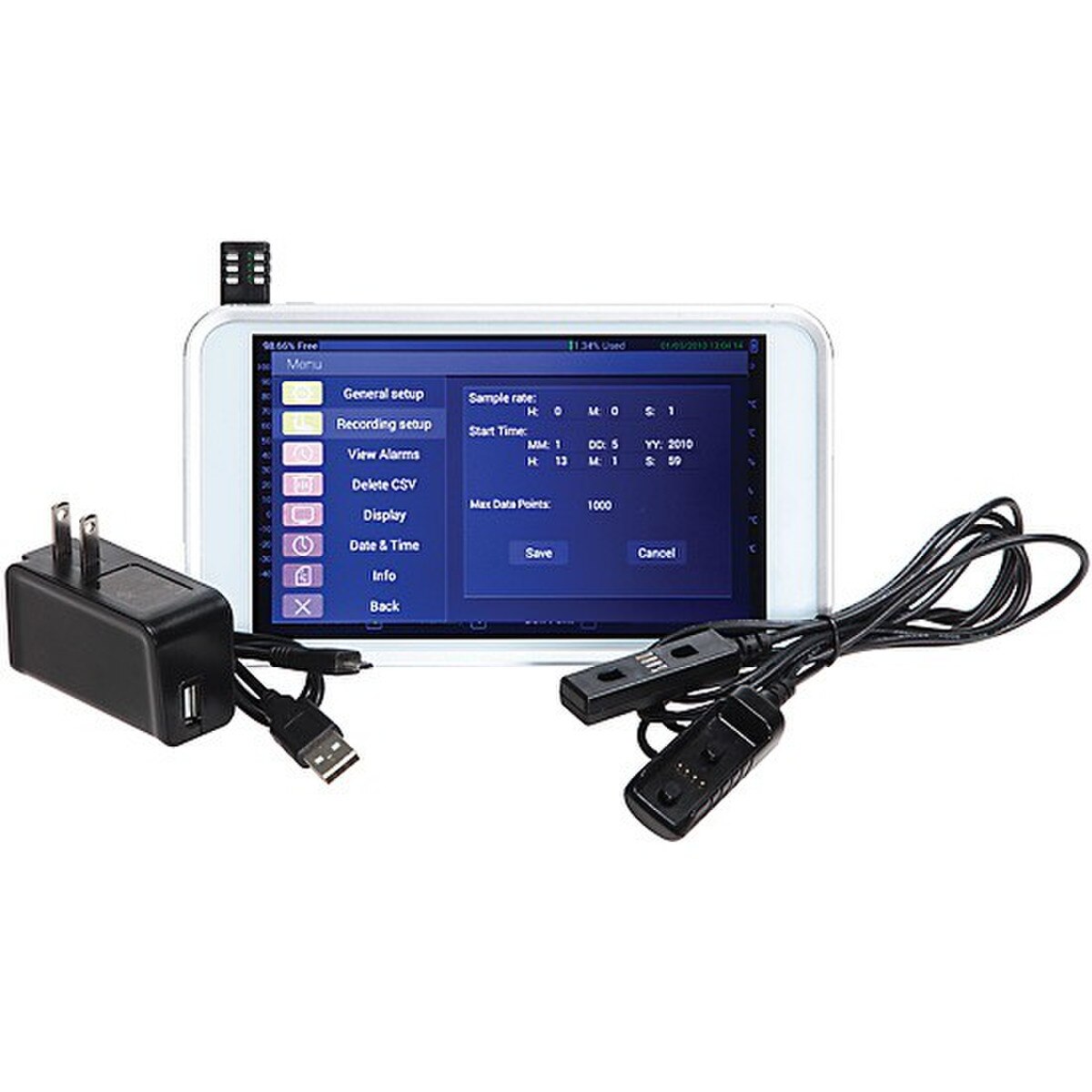

| Includes: | Tablet with built-in stand, temperature/RH sensor, 6’ sensor extension cable, USB cable, wall-mounting bracket, power supply, and NIST calibration certificate. |
| Notes: | Sampling Rate: 1 second up to 24 hour |
