CPI-20250-51
Images are for representation only. Actual product may differ in size, color or options.

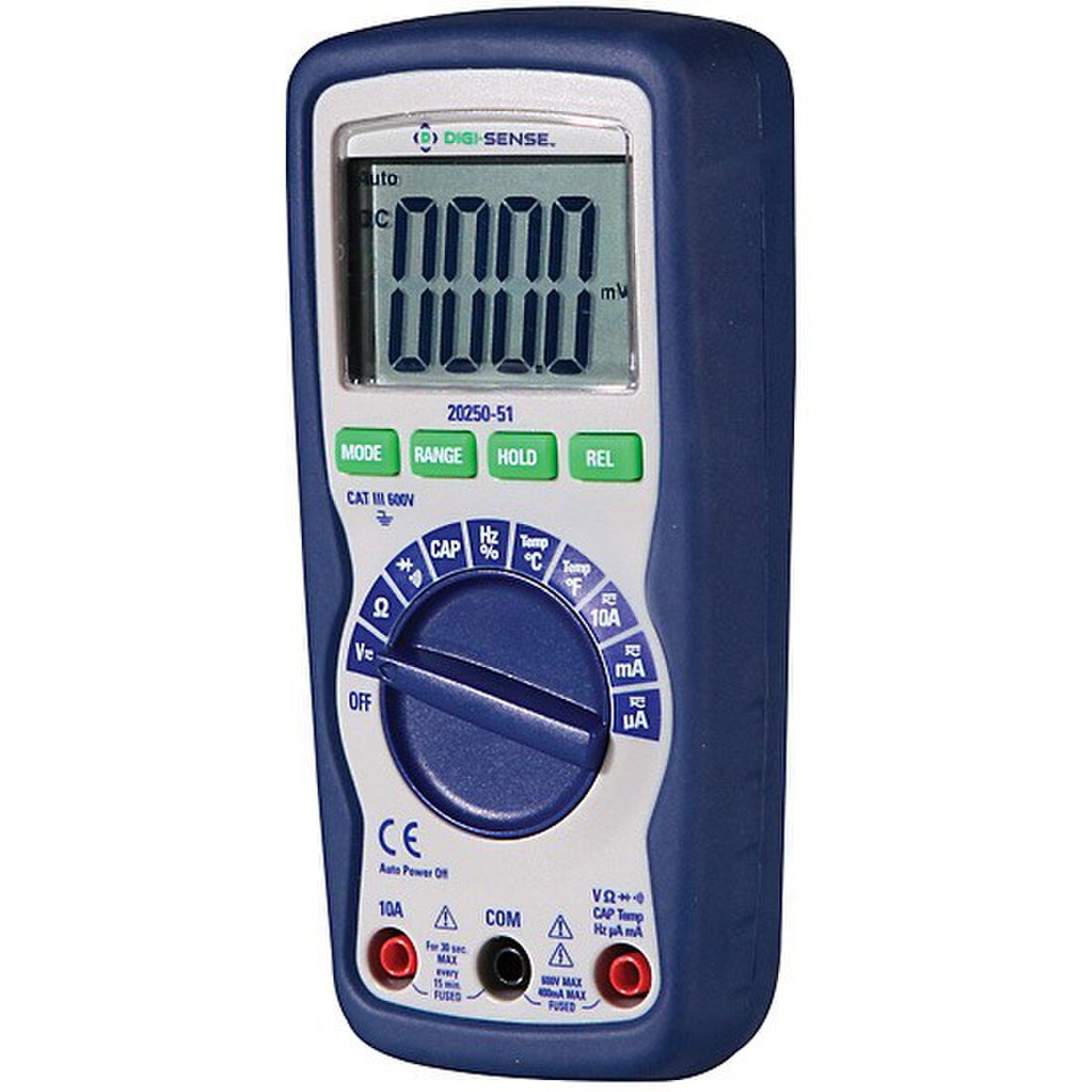

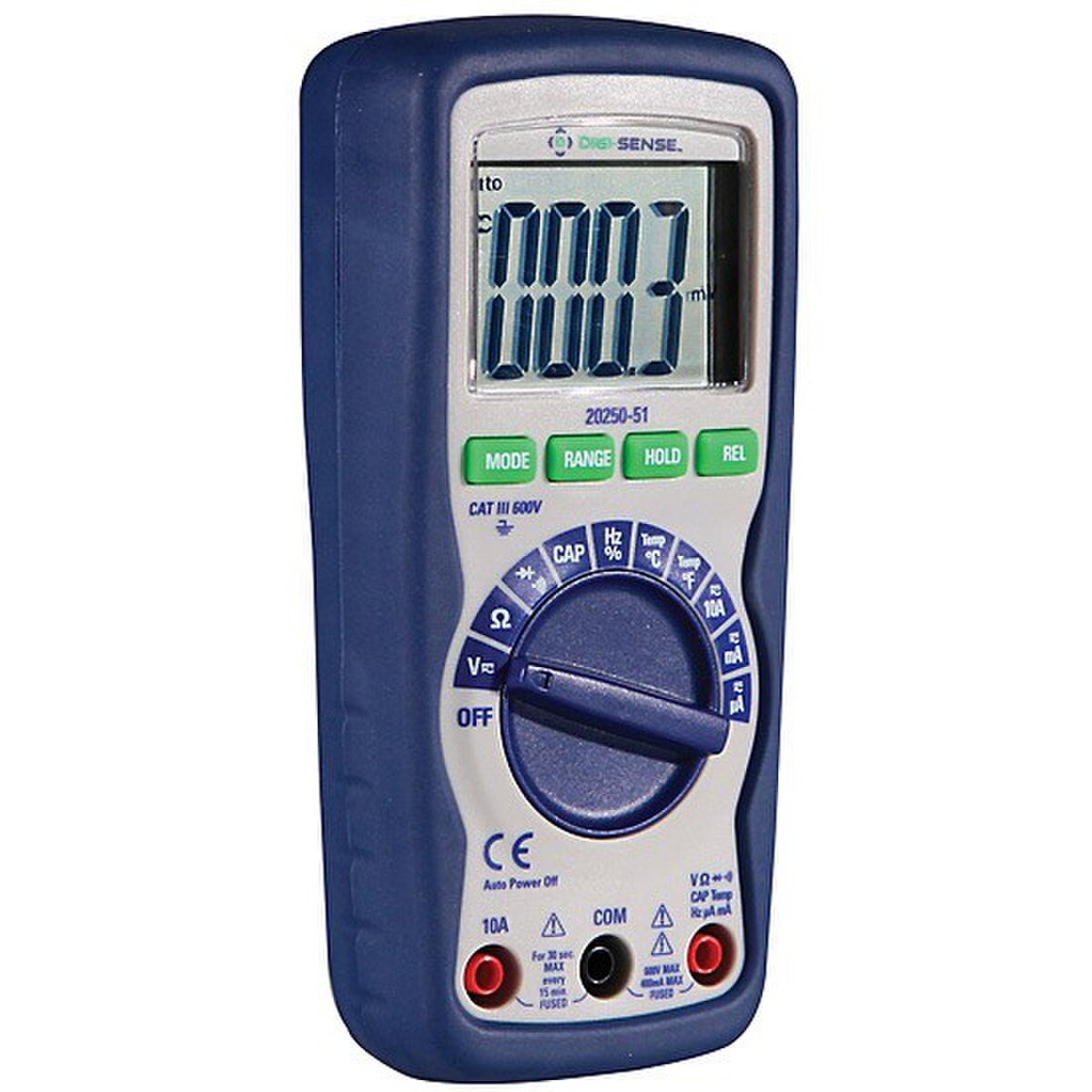

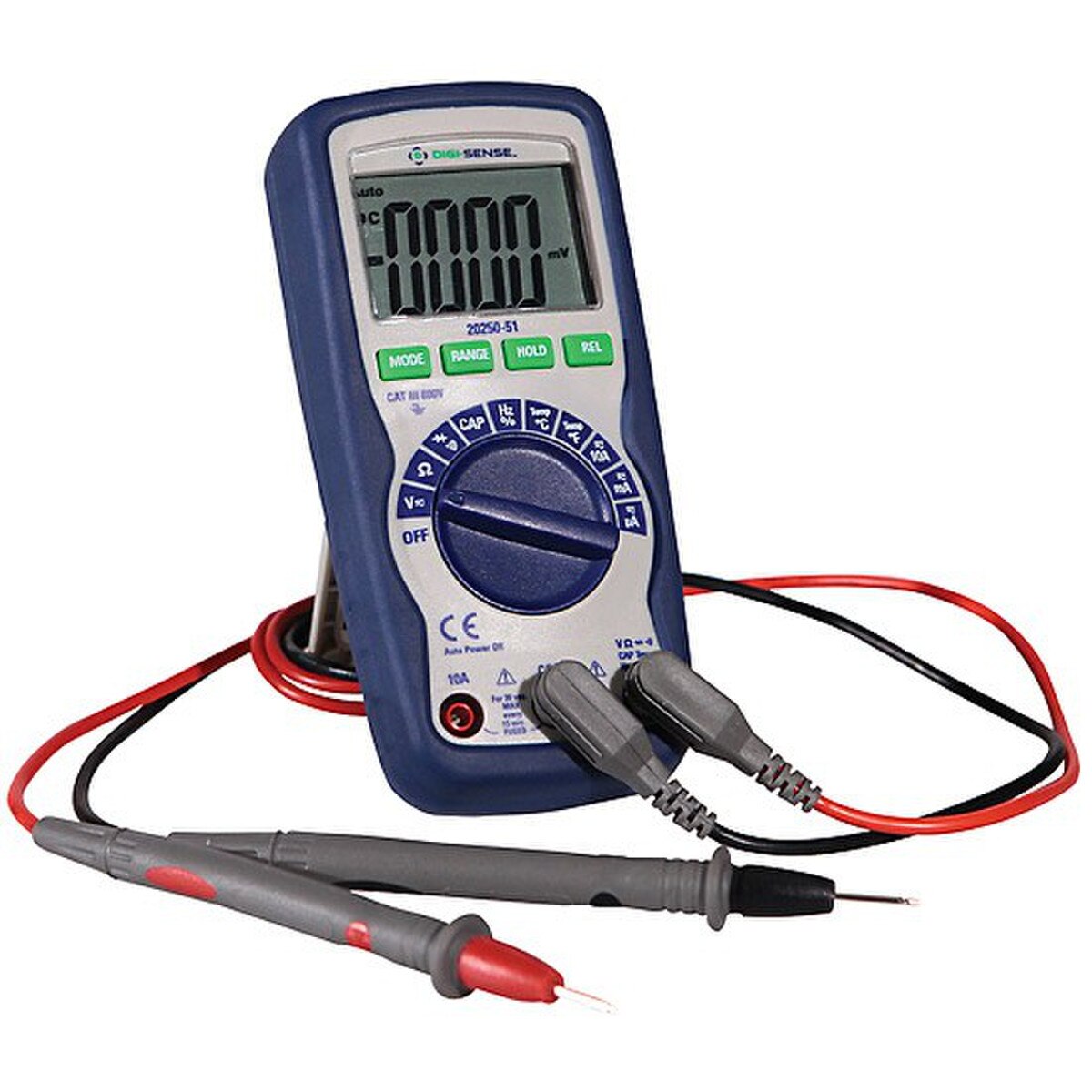

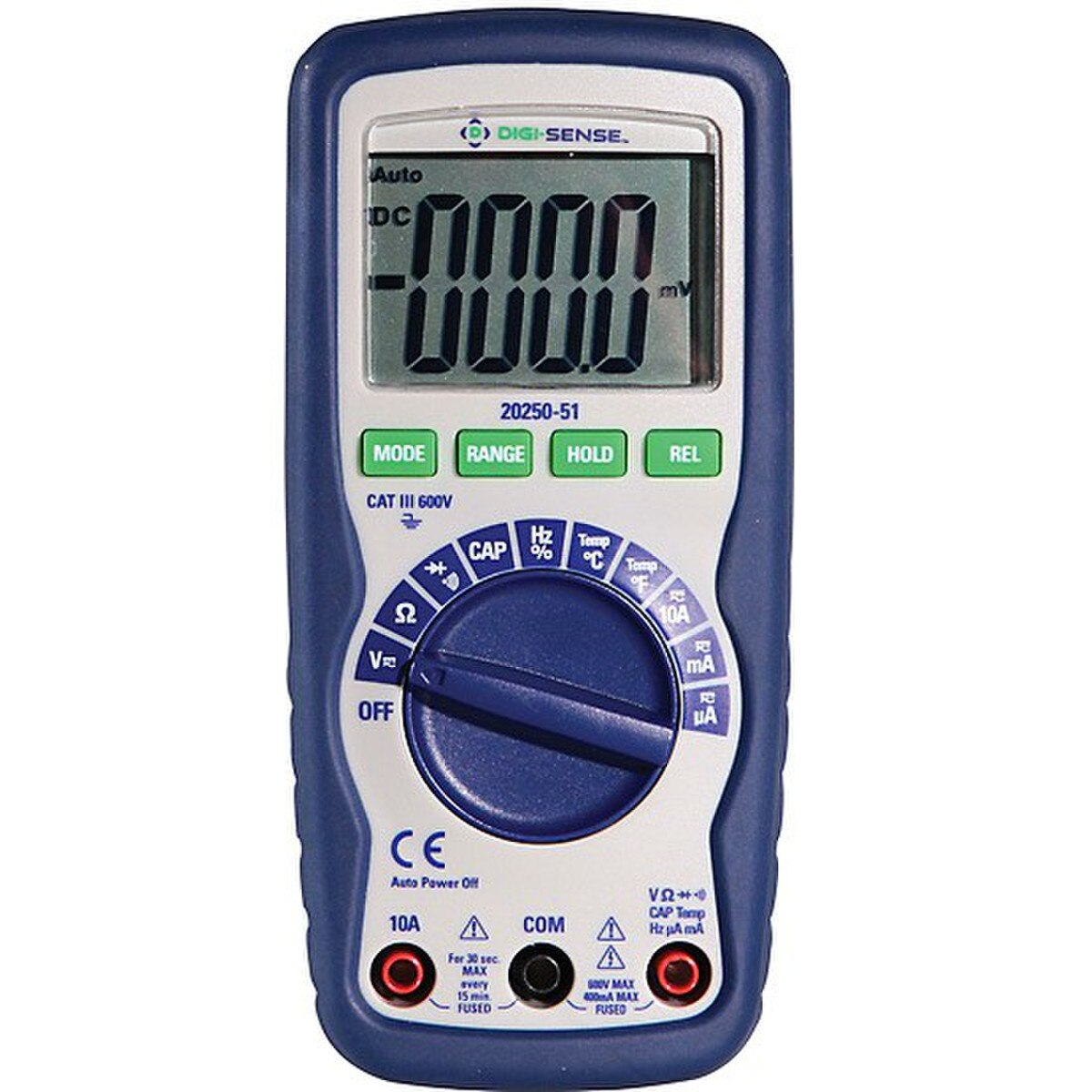

Digi-Sense Autoranging Digital Multimeter (each)
Model 20250-51 multimeter is great for general electronics. It offers auto-ranging for measuring voltage ranges in AC and DC from 400.0 mV up to 600 V. In the ohms range, the electronics enthusiast benefits with an auto-ranging that can test small resistances starting at 400 O all the way to 40 MO high-value resistances. And an input impedance of only 7.8 MO to minimize any changes in current and voltage when performing measurements on a component.
Model 20250-51 offers a full complement of ampere ranges for measuring AC and DC current for tasks in electronics. The range starts at 400 µ all the way to 10 A. Model 20250-51 comes with two fuses (0.5 A / 250 V and 10 A / 250 V) for the probe terminals to prevent any injury, in the event of an overload, to the user or damage to the circuits. Another important feature is the continuity test. Setting the multimeter to the continuity test function, and latching together the probe’s tips, it produces an audible and solid tone with a good response time.
Model 20250-51 multimeter is great for general electronics. It offers auto-ranging for measuring voltage ranges in AC and DC from 400.0 mV up to 600 V. In the ohms range, the electronics enthusiast benefits with an auto-ranging that can test small resistances starting at 400 O all the way to 40 MO high-value resistances. And an input impedance of only 7.8 MO to minimize any changes in current and voltage when performing measurements on a component.
Model 20250-51 offers a full complement of ampere ranges for measuring AC and DC current for tasks in electronics. The range starts at 400 µ all the way to 10 A. Model 20250-51 comes with two fuses (0.5 A / 250 V and 10 A / 250 V) for the probe terminals to prevent any injury, in the event of an overload, to the user or damage to the circuits. Another important feature is the continuity test. Setting the multimeter to the continuity test function, and latching together the probe’s tips, it produces an audible and solid tone with a good response time.
- CAT III 600 V
- Available in auto-ranging and manual ranging versions
- Bright backlight display has 1.1” tall digits
- Built-in non-contact Voltage detector
- Housing is made of double-molded plastic
- Hold button for probing without continuously watching the display
- Equipped with AC/DC voltage and current, capacitance, audible continuity test, frequency, duty cycle, diode test, and temperature measurement with a type K probe
| Product Type: | Digital Multimeter |
| Brand: | Digi-Sense |
| Class: | Autoranging |
| Material: | Double-molded plastic |
| Range: | 0.4 to 600 AC/DC Volts; 0.0004 to 10 AC/DC Amps |
| Accuracy: | ±1.5% DC Volts; ±2.5% DC Amps; ±2.0% AC Volts; ±3.0% AC Amps |
| Temperature Range: | –4 to 1400°F (–20 to 760°C) |
| Temperature Accuracy: | ±3% |
| Resistivity: | 40.00 MOhm |
| Power Supply: | 9V Battery |
| Places: | 4000 count |
| Display: | LCD |
| Operating Modes: | AC/DC Volts, AC/DC Amps, Diode Test |
| Overall Dimensions: | 5 7/8 x 2 3/4 x 1 7/8 inches (15 x 7 x 4.8 cm) |
| Includes: | Test leads, 9V battery, type K temperature probe, Traceable Certificate and carrying case |
| Notes: | Safety Rating: CAT II 2,000 V, Pollution degree 2, CAT III 600 V; Capacitance: 200.0 µF; Frequency: 9.999 MHz |
