Digi-Sense Industrial Digital Multimeter, IP67, with NIST-Traceable Calibration
Images are for representation only. Actual product may differ in size, color or options.

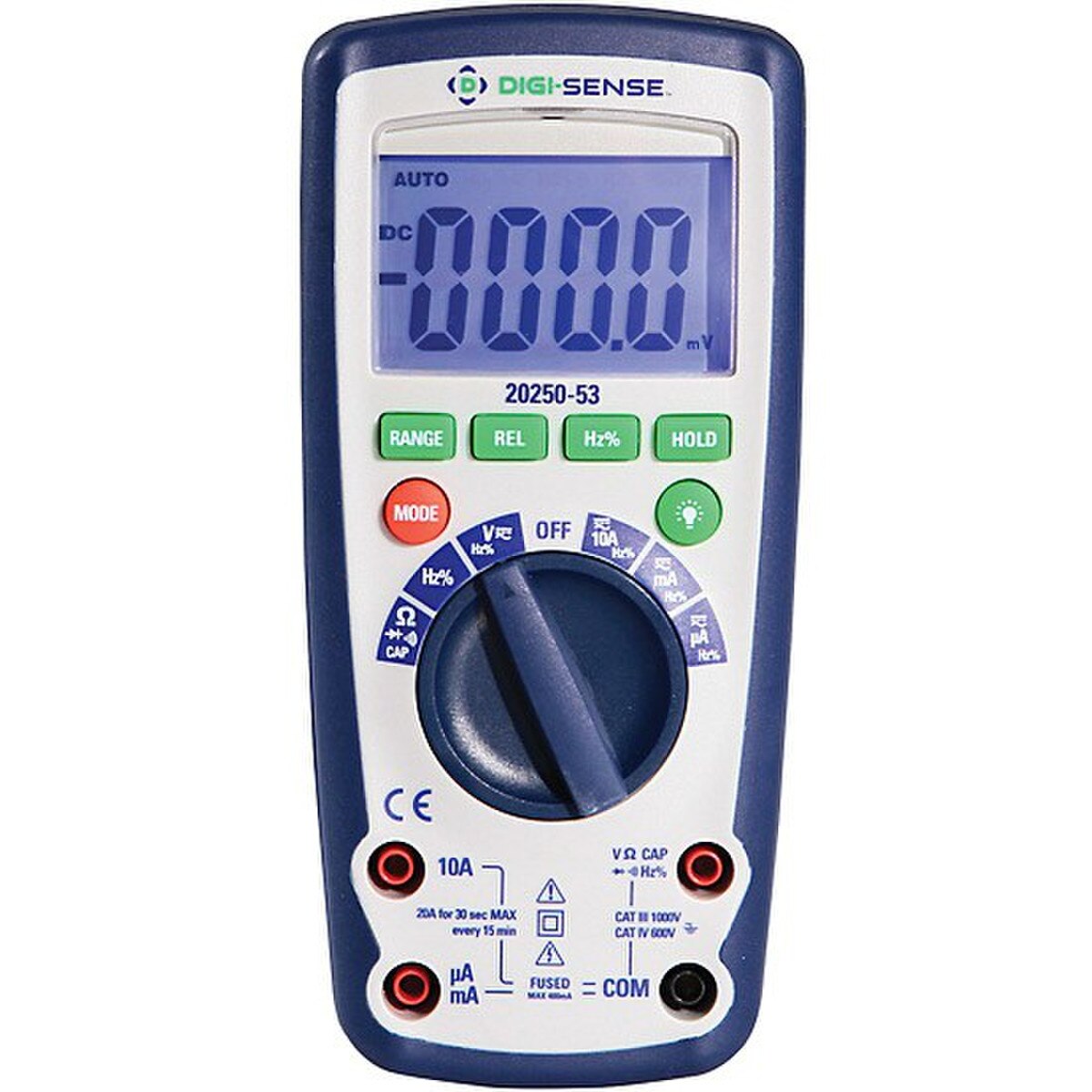

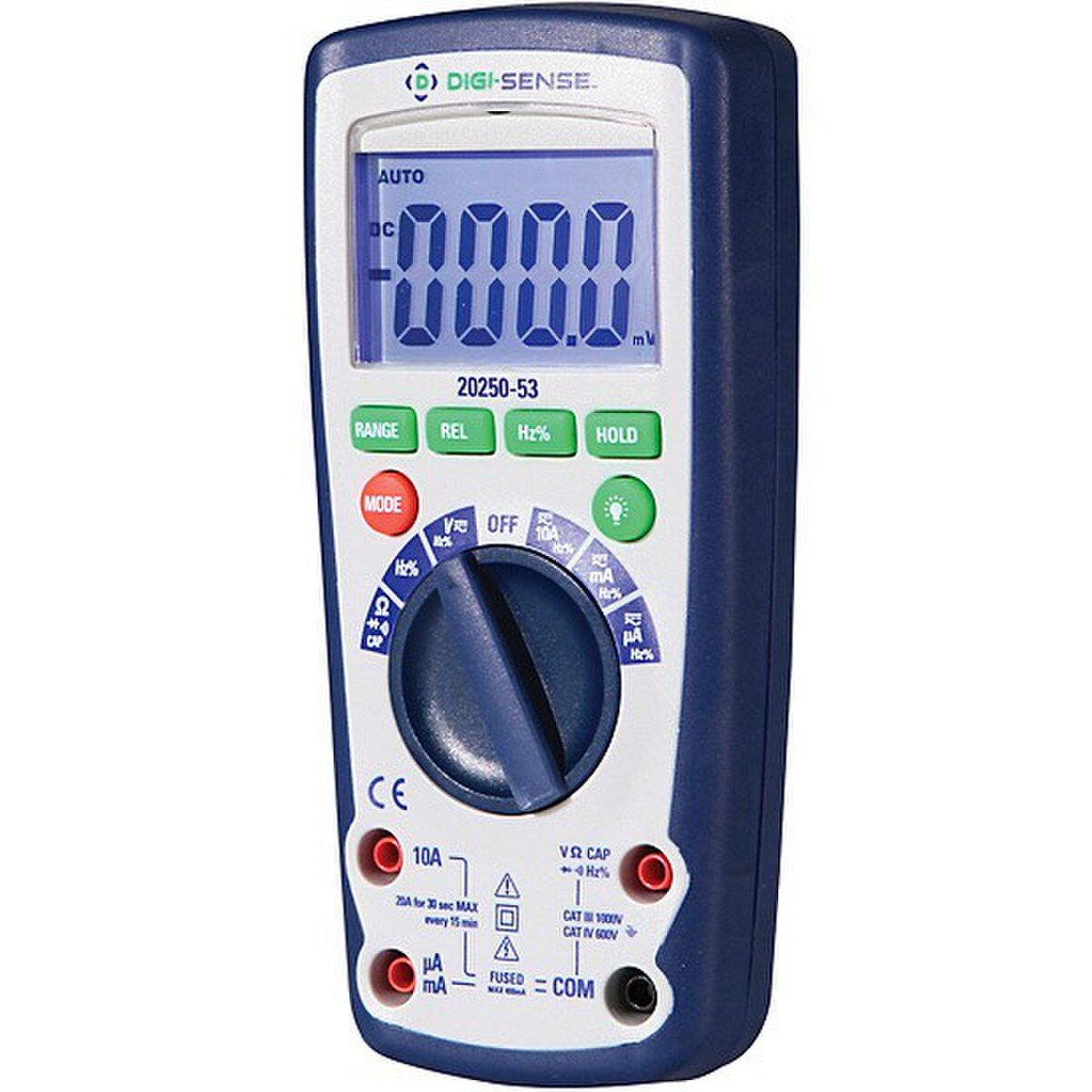

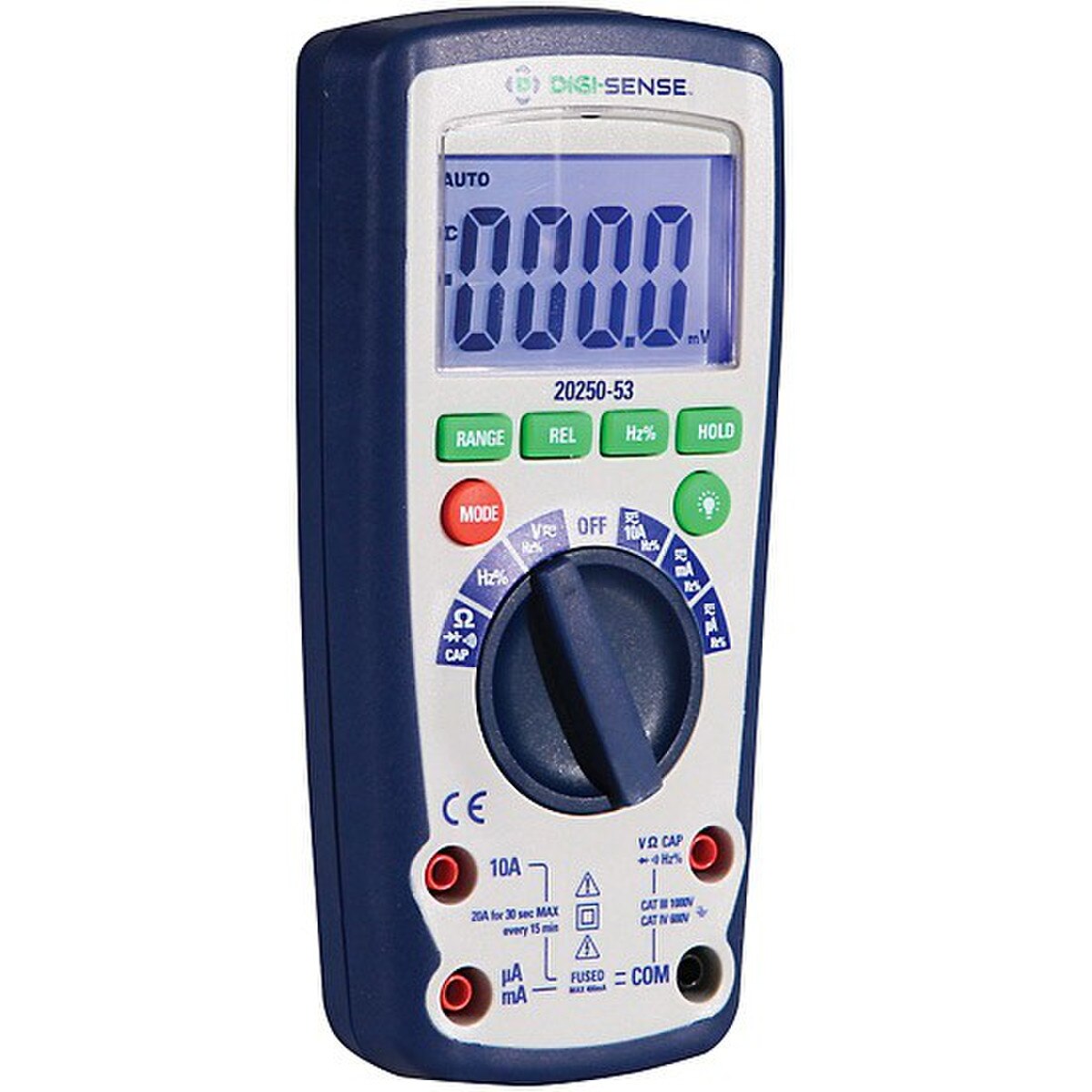

Digi-Sense IP67 Rating Digital Multimeter (each)
Model 20250-53 offers auto-ranging for measuring voltage ranges in AC and DC from 400.0 mV up to 600 V for high power circuits. In the ohms range, the electronics enthusiast benefits with an auto-ranging that can test small resistances starting at 400 O all the way to 40 MO high-value resistances. And an input impedance of only 10 MO to minimize any changes in current and voltage when performing measurements on a component.
This meter has an IP67 rating for protection from dust, rain, splashing and accidental immersion in water with a depth of up to 1 meter (or 3.3 feet) for up to 30 minutes.
Meter comes with two fast blow fuses (0.5 A / 1000 V and 10 A / 1000 V) for the probe terminals to prevent any injury, in the event of an overload, to the user or damage to the circuits.
Model 20250-53 offers auto-ranging for measuring voltage ranges in AC and DC from 400.0 mV up to 600 V for high power circuits. In the ohms range, the electronics enthusiast benefits with an auto-ranging that can test small resistances starting at 400 O all the way to 40 MO high-value resistances. And an input impedance of only 10 MO to minimize any changes in current and voltage when performing measurements on a component.
This meter has an IP67 rating for protection from dust, rain, splashing and accidental immersion in water with a depth of up to 1 meter (or 3.3 feet) for up to 30 minutes.
Meter comes with two fast blow fuses (0.5 A / 1000 V and 10 A / 1000 V) for the probe terminals to prevent any injury, in the event of an overload, to the user or damage to the circuits.
- CAT IV 600 V and CAT III 1000 V ratings for safety
- IP67 certification for dustproof and waterproof protection
- Bright backlight display with 1.1 inch tall digits and 4,000 counts
- Built-in non-contact Voltage detector
- Impact resistant double-molded plastic
- Hold button for probing without continuously watching the display
| Product Type: | Digital Multimeter |
| Brand: | Digi-Sense |
| Class: | IP67 Rating |
| Material: | Double-molded plastic |
| Range: | 0.4 to 600 AC/DC Volts; 0.0004 to 10 AC/DC Amps |
| Accuracy: | ±1.2% DC Volts; ±2.5% DC Amps; ±1.5% AC Volts; ±3.0% AC Amps |
| Resistivity: | 40.00 MOhm |
| Housing: | IP67 certification |
| Power Supply: | 9V Battery |
| Places: | 4000 count |
| Display: | LCD, backlit |
| Operating Modes: | AC/DC Volts, AC/DC Amps, Noncontact Voltage Detector, Duty Cycle |
| Overall Dimensions: | 7 3/16 x 3 1/4 x 2 3/16 inches (18.2 x 8.2 x 5.5 cm) |

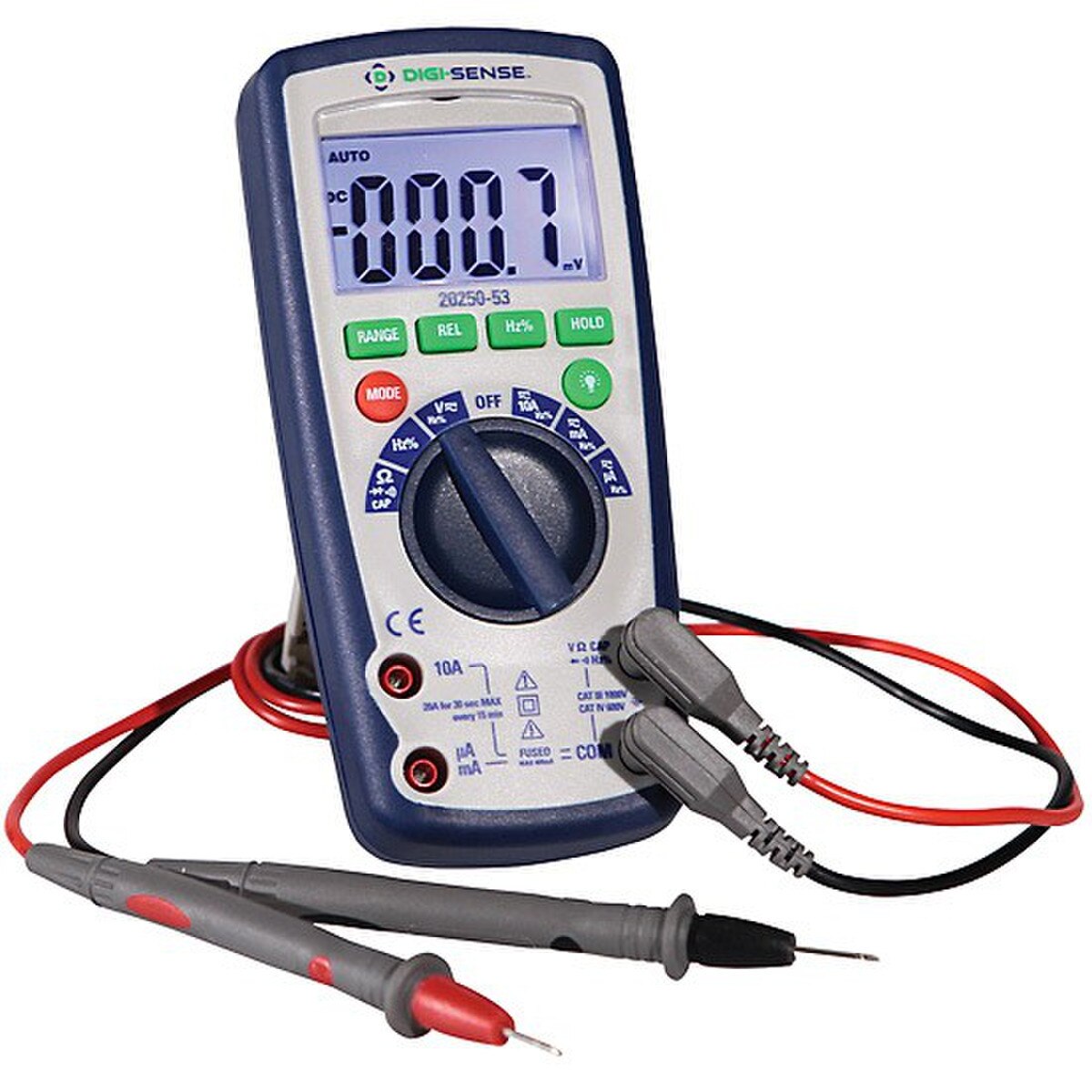

| Includes: | Test leads, 9V battery, Traceable Certificate and carrying case |
| Notes: | Safety Rating: CAT II 1,000 V, Pollution degree 2, CAT IV 600 V; Capacitance: 40.00 mF; Frequency: 10.00 MHz |
