CPI-20250-56
Images are for representation only. Actual product may differ in size, color or options.

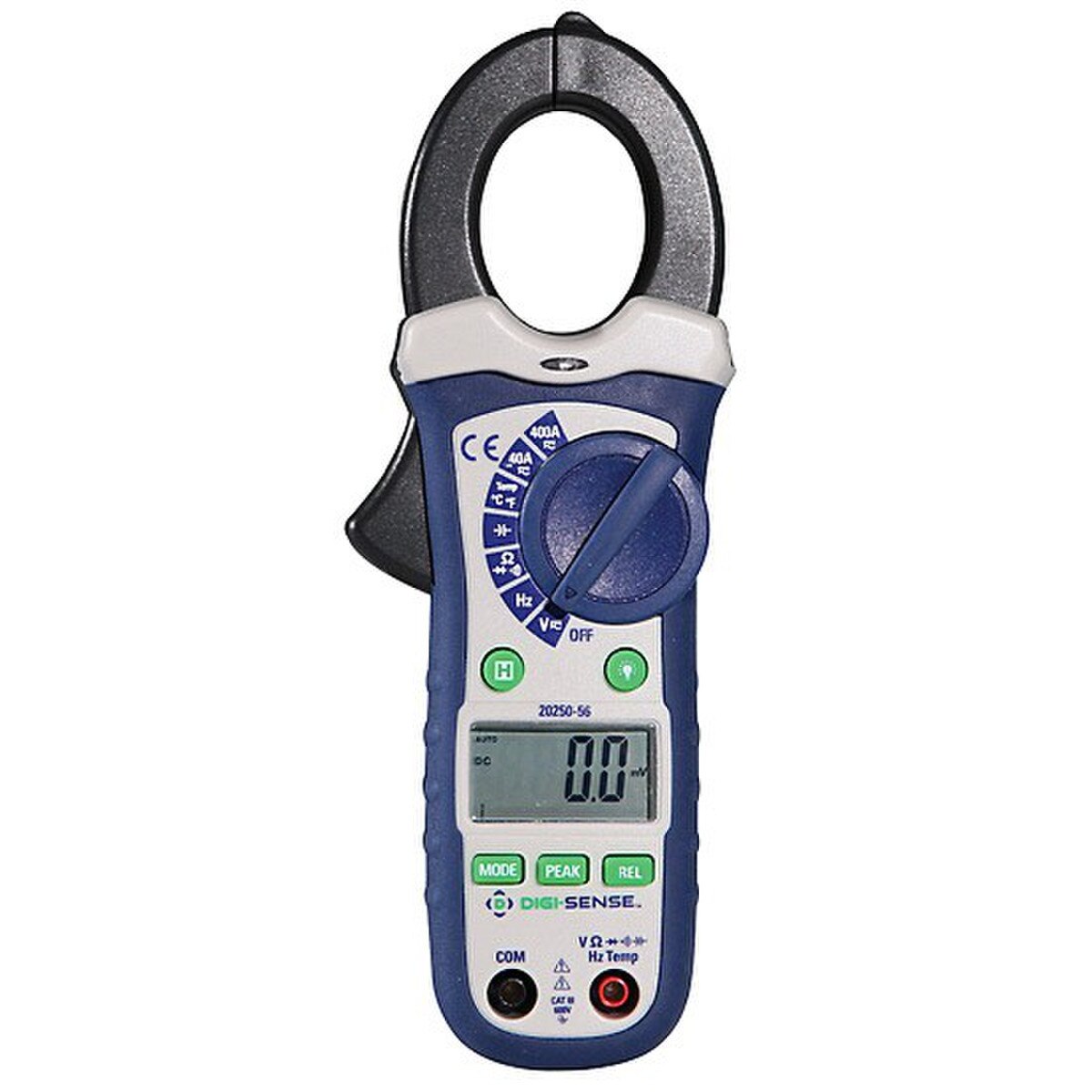

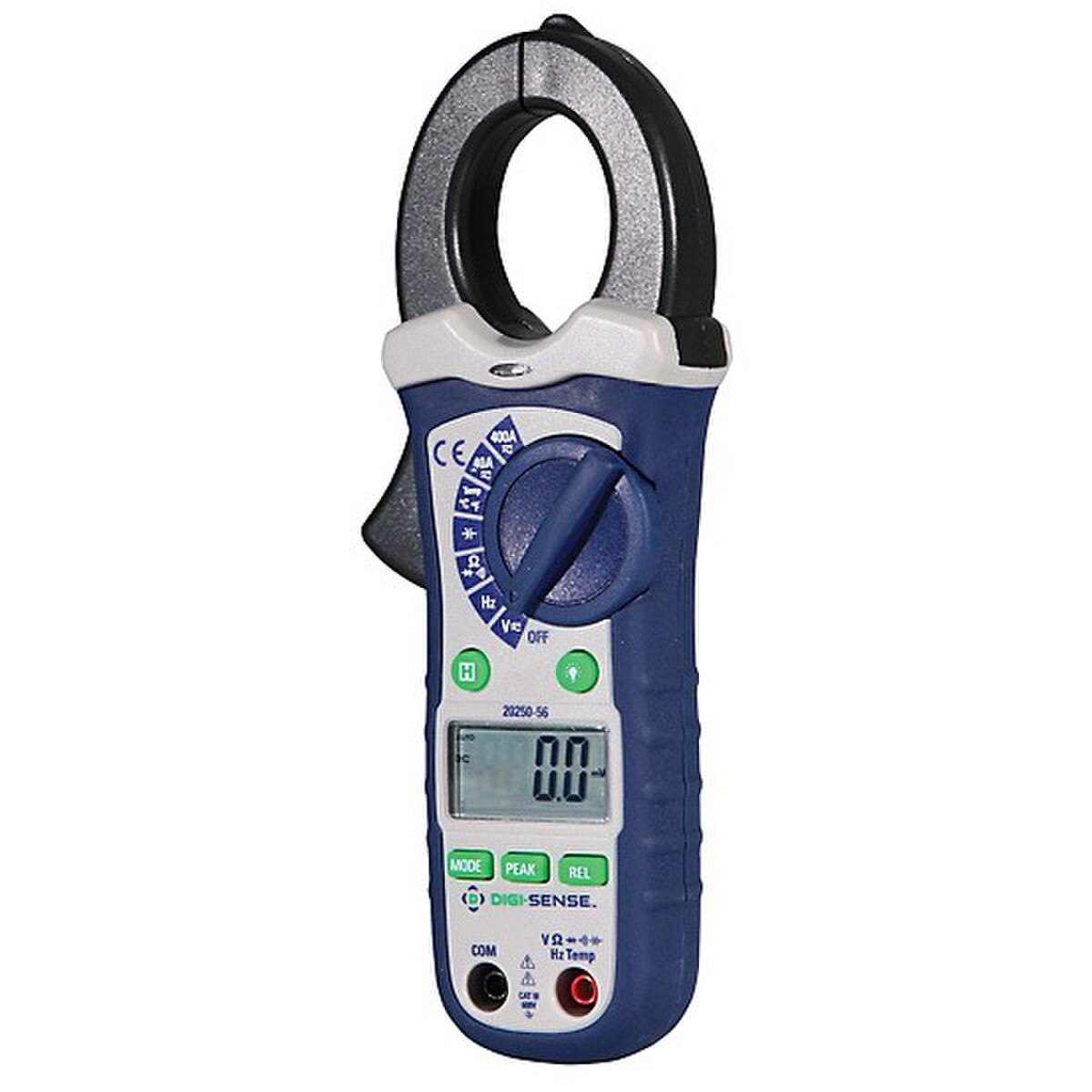

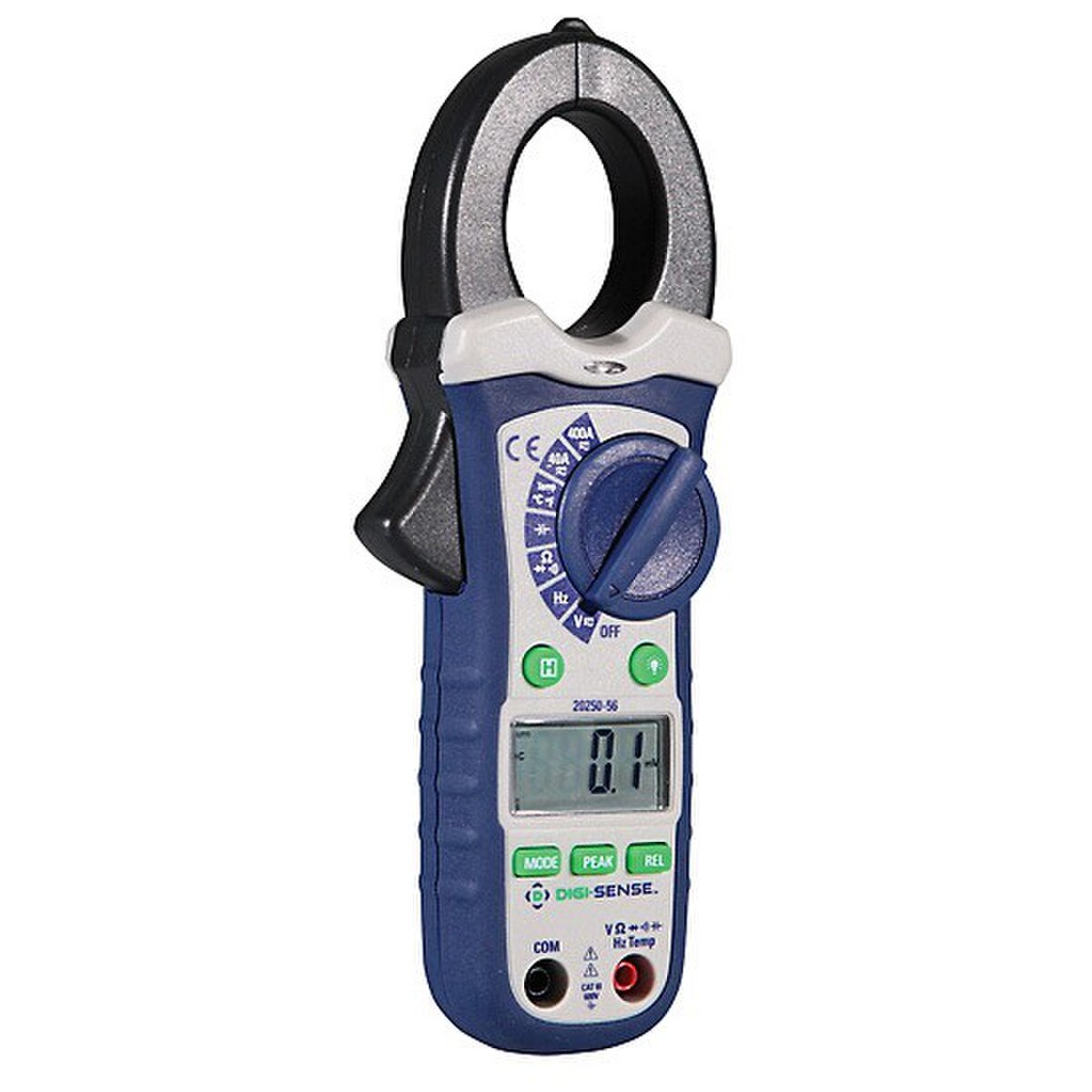

Digi-Sense 400 Amp AC/DC Auto-ranging Clamp Multimeter (each)
These smaller-sized auto-ranging clamp meters feature diode testing, continuity check with a buzzer sound at 50 Ω, and a measurement rate of 2 readings per second. Additional functions include data Hold, overrange and low-battery indication, and auto power-off. Model 20250-56 also measures DC current and capacitance, and features a peak Hold function that captures the peak AC current or voltage reading.
These smaller-sized auto-ranging clamp meters feature diode testing, continuity check with a buzzer sound at 50 Ω, and a measurement rate of 2 readings per second. Additional functions include data Hold, overrange and low-battery indication, and auto power-off. Model 20250-56 also measures DC current and capacitance, and features a peak Hold function that captures the peak AC current or voltage reading.
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
- Increased durability with double-molded plastic housing
- Instant visibility with the LCD alert when measuring noncontact AC voltage
- Access difficult testing areas with the 1-3/16 inch (30 mm) jaw opening
- Improved measurement ease with data Hold function on the large backlit display
| Product Type: | Digital Multimeter |
| Brand: | Digi-Sense |
| Class: | Autoranging Clamp |
| Material: | Double-molded plastic |
| Range: | 0 to 600 AC/DC Volts; 0 to 400 AC/DC Amps |
| Capacity: | 400 Amps |
| Accuracy: | ±1.5% DC Volts; ±2.8% DC Amps; ±2.0% AC Volts; ±2.8% AC Amps |
| Temperature Range: | –4 to 1400°F (–20 to 760°C) |
| Temperature Accuracy: | ±3% |
| Resistivity: | 40.00 MOhm |
| Power Supply: | 9V Battery |
| Places: | 4000 count |
| Display: | LCD |
| Operating Modes: | AC/DC Volts, AC/DC Amps, Temperature, Frequency, Diode Test |
| Overall Dimensions: | 7 3/4 x 2 3/4 x 1 9/16 inches (19.7 x 7 x 4 cm) |

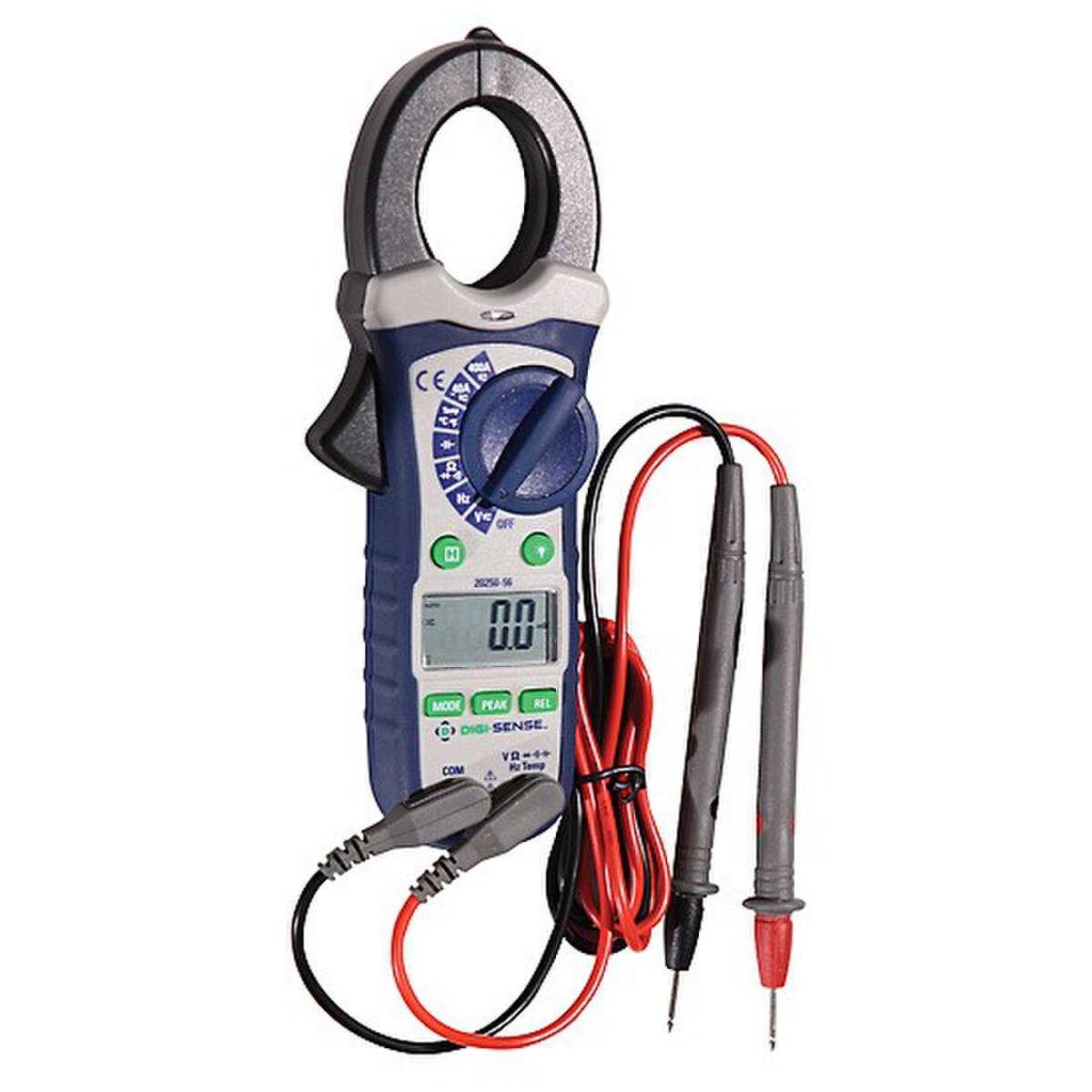

| Includes: | Test leads, temperature probe, carrying case, 9 V battery, and NIST-traceable calibration report supplied by InnoCal |
| Notes: | Safety Rating: CAT III-1000 V; Capacitance 4 mF; Frequency: 100 kHz |
