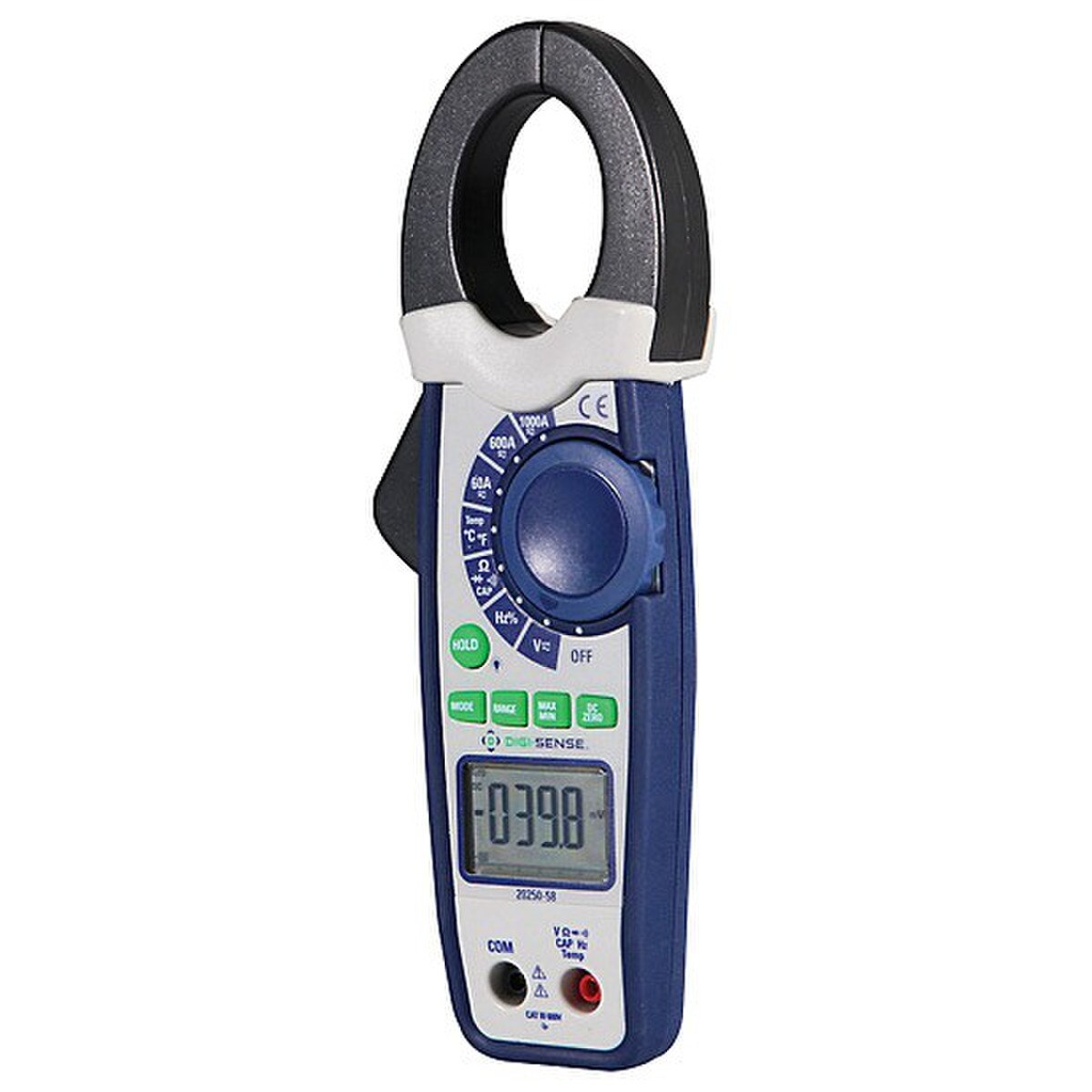

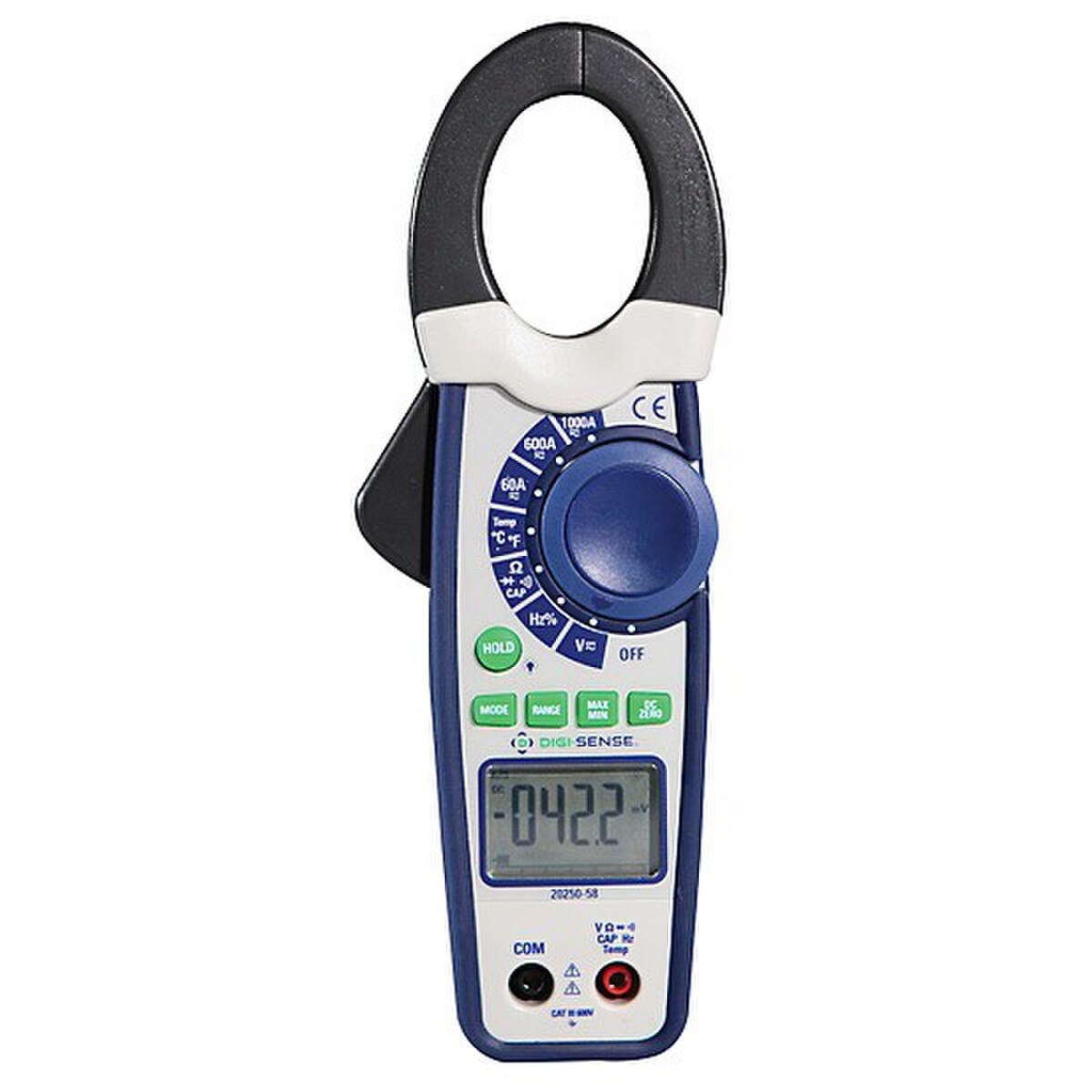

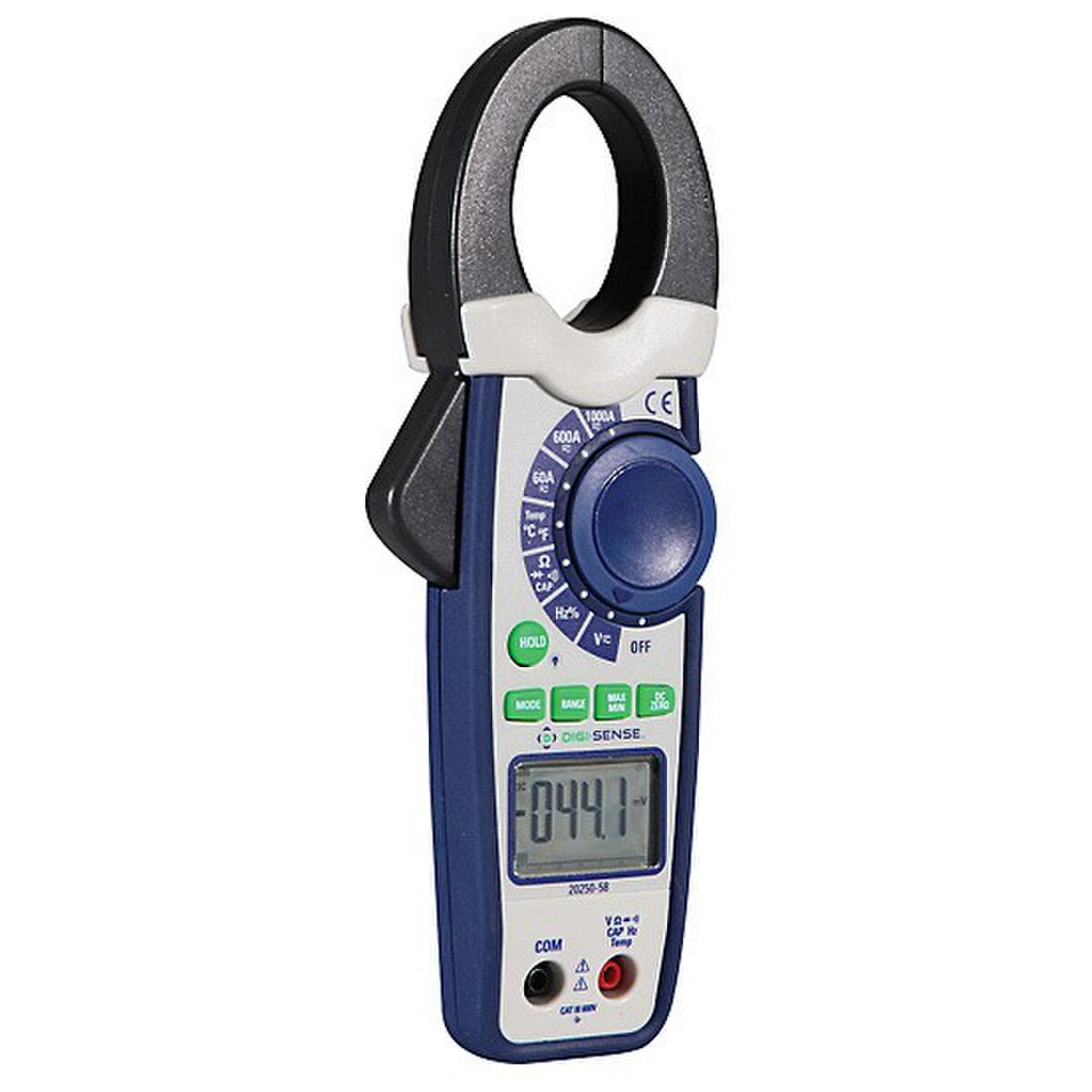

Digi-Sense 1000 Amps True RMS Autoranging Clamp AC/DC 30 mm (1 3/16 inch) Digital Multimeter (each)
Digi-Sense digital clamp meters to reliably measure the power quality running to your equipment, quickly uncovering hidden electrical issues. Perfect for everyday use, the units measure AC current to 1000 A AC, voltage (AC and DC), resistance, capacitance, frequency, and duty cycle. Plus you'll work more efficiently with these special functions — autoranging, data Hold, Max/Min readings, diode test, audible continuity check, low-battery indication, and auto power-off. The 1-3/16" (30 mm) jaw opening is ideal for getting inside small compartments or boxes with tightly arranged electrical wires.
Model 20250-58 is a true workhorse — it adds on DC current measurement to 1000 A DC, True RMS for more accurate current readings, and temperature measurement via a type K thermocouple.
Digi-Sense digital clamp meters to reliably measure the power quality running to your equipment, quickly uncovering hidden electrical issues. Perfect for everyday use, the units measure AC current to 1000 A AC, voltage (AC and DC), resistance, capacitance, frequency, and duty cycle. Plus you'll work more efficiently with these special functions — autoranging, data Hold, Max/Min readings, diode test, audible continuity check, low-battery indication, and auto power-off. The 1-3/16" (30 mm) jaw opening is ideal for getting inside small compartments or boxes with tightly arranged electrical wires.
Model 20250-58 is a true workhorse — it adds on DC current measurement to 1000 A DC, True RMS for more accurate current readings, and temperature measurement via a type K thermocouple.
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
- Large characters and backlight lets you read the display in all kinds of conditions
- Easily select a function with a single rotary switch
- Conveniently hold or "freeze" a reading for times when you can't see the display
- Be confident — the best measurement range is automatically selected
- Stay safe and prevent damage with overload protection
- Get increased durability with rugged double-molded housing and ergonomic grip
- CAT III-600 V safety rating
Product Type: | Digital Multimeter |
Brand: | Digi-Sense |
Class: | True RMS Autoranging Clamp |
Material: | Double-molded plastic |
Range: | 0.6 to 800 DC Volts; 60 to 1000 DC Amps; 6 to 750 AC Volts; 60 to 1000 AC Amps |
Capacity: | 1000 Amps |
Accuracy: | ±2.0% DC Volts; ±3.0% DC Amps; ±2.5% AC Volts; ±3.0% AC Amps |
Temperature Range: | –4 to 1832°F (–20 to 1000°C) |
Temperature Accuracy: | ±3% |
Resistivity: | 60.00 MOhm |
Power Supply: | 9V Battery |
Places: | 6000 count |
Display: | LCD, backlit |
Operating Modes: | AC/DC Volts, AC/DC Amps, Temperature, Frequency, Duty Cycle, Diode Test |
Overall Dimensions: | 8 7/8 x 3 3/16 x 1 11/16 inches (22.6 x 8 x 4.3 cm) |

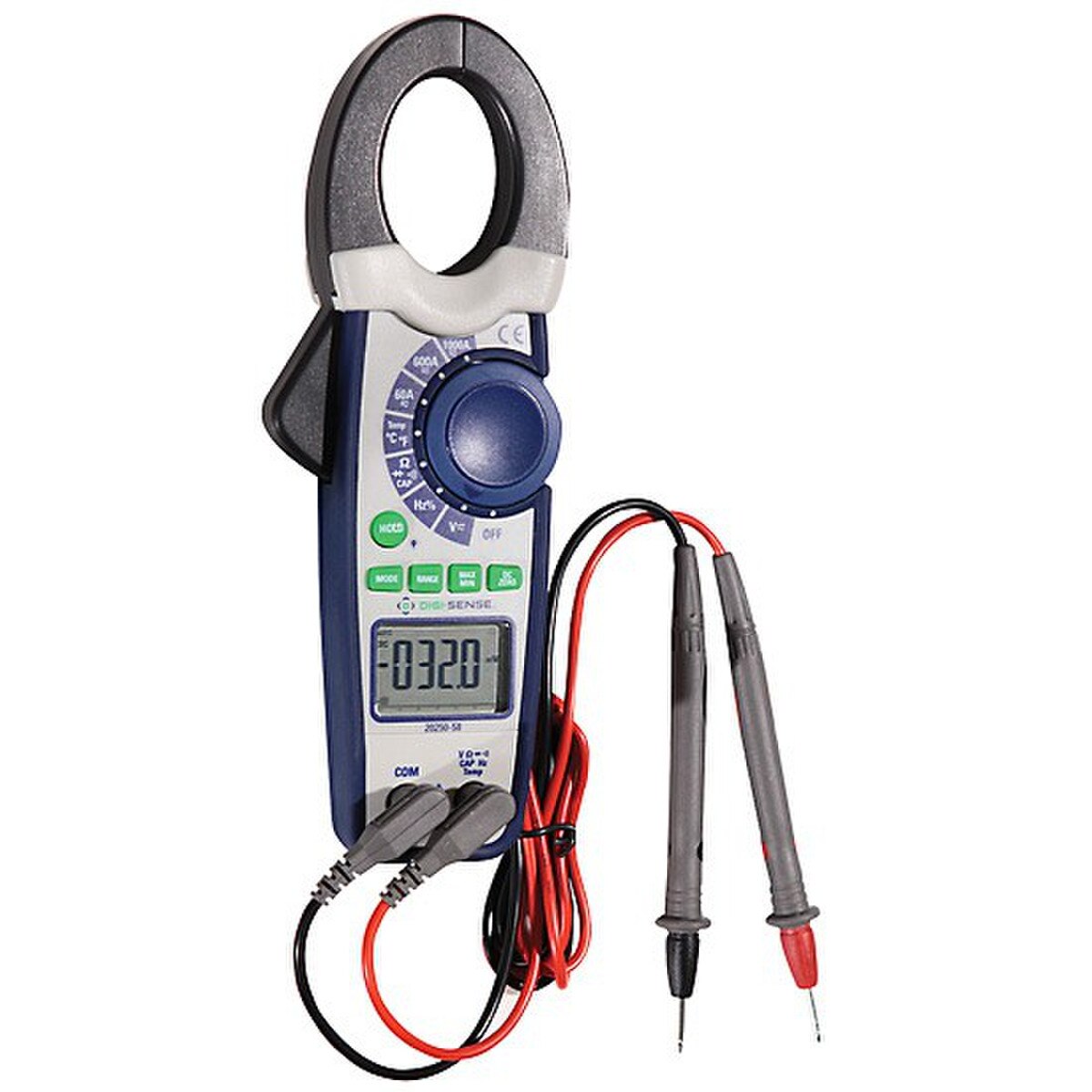

Includes: | Test leads, temperature probe, carrying case, 9 V battery, and NIST-traceable calibration report supplied by InnoCal |
Notes: | Safety Rating: CAT II 2,000 V, Pollution degree 2, CAT III 600 V; Capacitance 100 µF; Frequency: 10 MHz |
