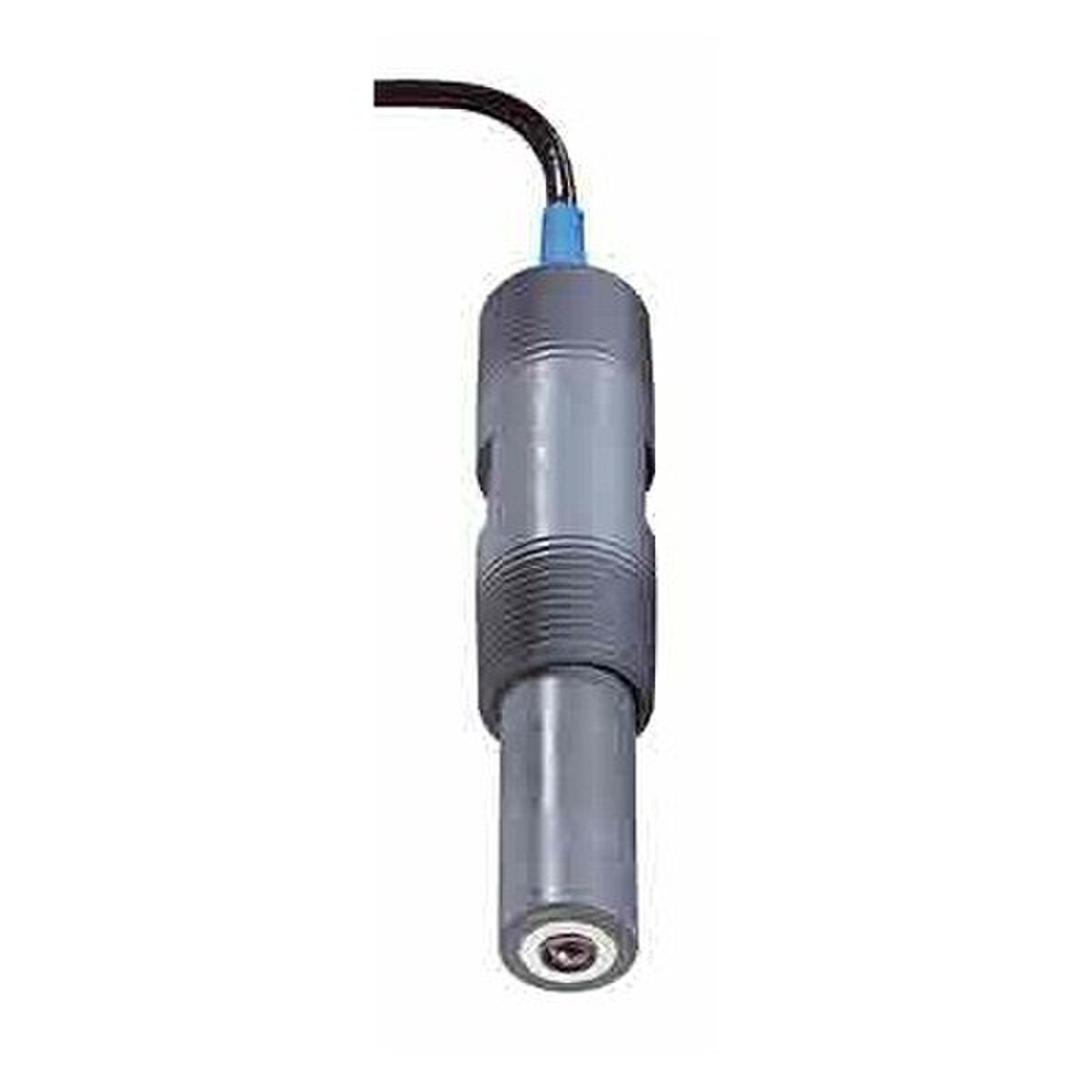

Cole-Parmer pH Electrode, Double Junction, CPVC, Sealed, Self-Cleaning, Flat, 10 feet Cable, BNC, ATC (Stripped Wire End)
Images are for representation only. Actual product may differ in size, color or options.
Cole-Parmer pH Electrode, Double Junction, CPVC, Sealed, Self-Cleaning, Flat, 10 feet Cable, BNC, ATC (Stripped Wire End)
- Flat electrode surface prevents solids buildup
Flat electrode surface does not collect suspended solids. Fluid flow across the electrode provides a cleaning action that extends the electrode life and improves performance. Install in a tee fitting or on a submersion pipe for tank mounting. Sealed KCL/AgCl reference, built in 100O Pt temperature element and BNC connector.
CPVC electrodes are impact resistant and provide excellent durability for field applications. Electrodes feature Ag/AgCl reference cells.
Max Temperature: 80°C (176°F)
| Product Type: | pH Electrode |
| Brand: | Cole-Parmer |
| Class: | Standard, Double Junction |
| Material: | CPVC |
| Range: | 0 to 12 pH |
| Temperature Range: | 32 to 176°F (0 to 80°C) |
| Connections: | ATC (Stripped Wire End), BNC |
| Cable Length: | 10 feet |
| Outer Diameter: | 1 inch |
| For Models: | Controllers requiring BNC for pH and 100ohm RTD with stripped ends for temperature |
| Overall Dimensions: | 4.75 inch L x 1 inch OD |
| Includes: | protective electrode storage bottle |
