CPI-36225-67
Images are for representation only. Actual product may differ in size, color or options.

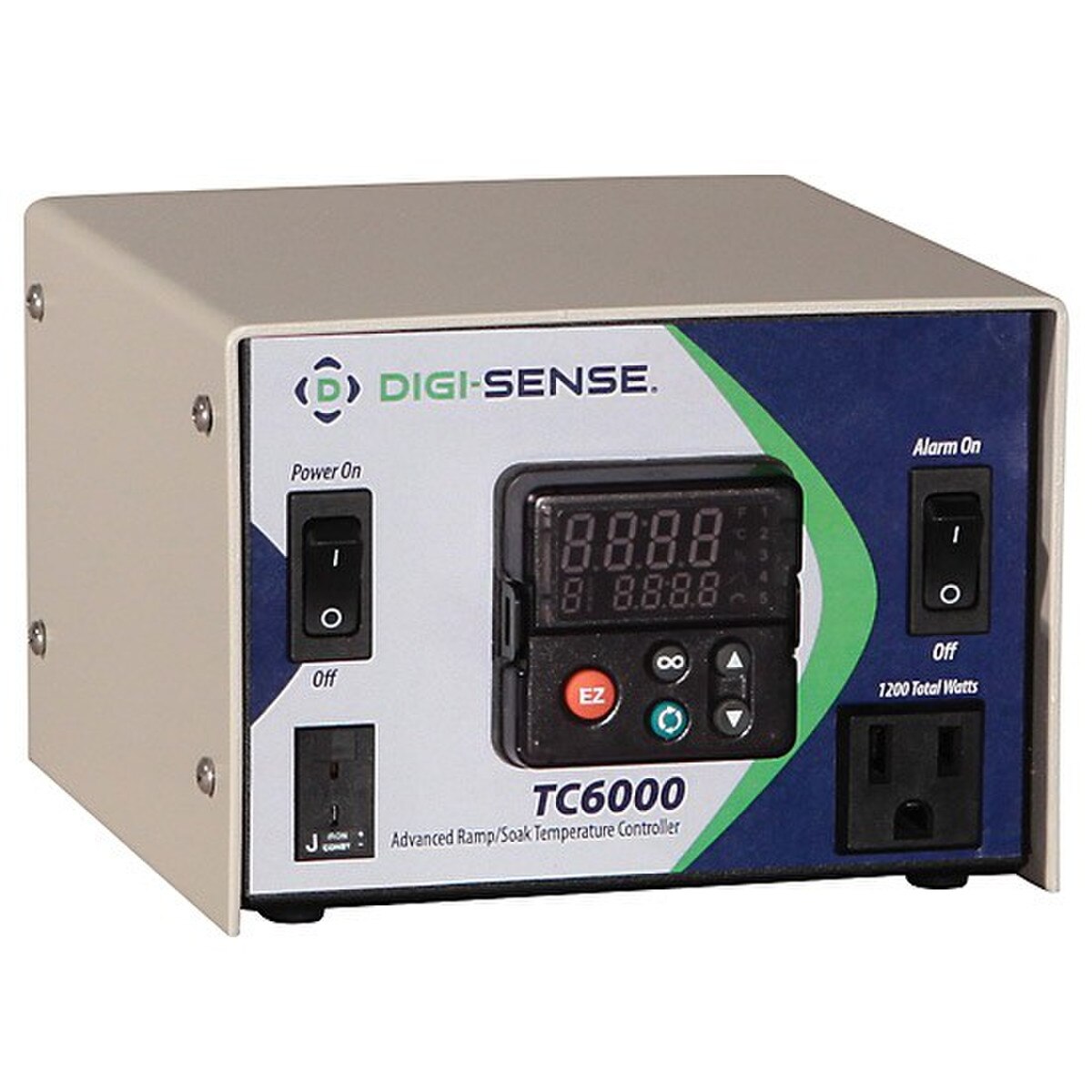

Digi-Sense TC6000 1 Zone Type K Ramp/Soak Thermocouple Temperature Controller, 120 VAC (each)
These controllers are designed for controlling multiple steps in a predetermined temperature processes, and features modern control technology that produces greater temperature stability. The Ramp/Soak feature of this control allows up to a 40-step profile, which can be configured from the provided software. You can profile temperature, time, hold, soak and end steps to create the ideal profile for your process. Auto-tune minimizes setpoint overshoot and features the ability to learn your process producing greater stability. The built in adaptive control technology provides even tighter control for these demanding applications. The controller also features an audible alarm function, temperature selectable and one panel mounted receptacle that accept a three-prong plug. This unit comes with a lattice support bracket, which is ideal for mounting to maximize space.
These controllers are designed for controlling multiple steps in a predetermined temperature processes, and features modern control technology that produces greater temperature stability. The Ramp/Soak feature of this control allows up to a 40-step profile, which can be configured from the provided software. You can profile temperature, time, hold, soak and end steps to create the ideal profile for your process. Auto-tune minimizes setpoint overshoot and features the ability to learn your process producing greater stability. The built in adaptive control technology provides even tighter control for these demanding applications. The controller also features an audible alarm function, temperature selectable and one panel mounted receptacle that accept a three-prong plug. This unit comes with a lattice support bracket, which is ideal for mounting to maximize space.
Product Type: | Thermocouple Temperature Controller |
Brand: | Digi-Sense |
Product Line: | TC6000 |
Class: | Type K |
Capacity: | 1 Zone |
Resolution: | 1°, 1.0° or 1.00° |
Accuracy: | 0.1% of span, ±1.0°F/°C |
Temperature Range: | –328 to 2498°F (–200 to 1370°C |
Connections: | 1/16 DIN, Thermocouple |
Power Supply: | 120 VAC, 60Hz |
Timing Functions: | Alarm |
Display: | LED |
Interface: | RS-232 |
Overall Dimensions: | 5 7/8 x 6 1/2 x 4 1/4 inches (165.1 x 149.23 x 107.95 mm) |
Includes: | Software, Support bracket |
Notes: | Control Output 1: SSR |
