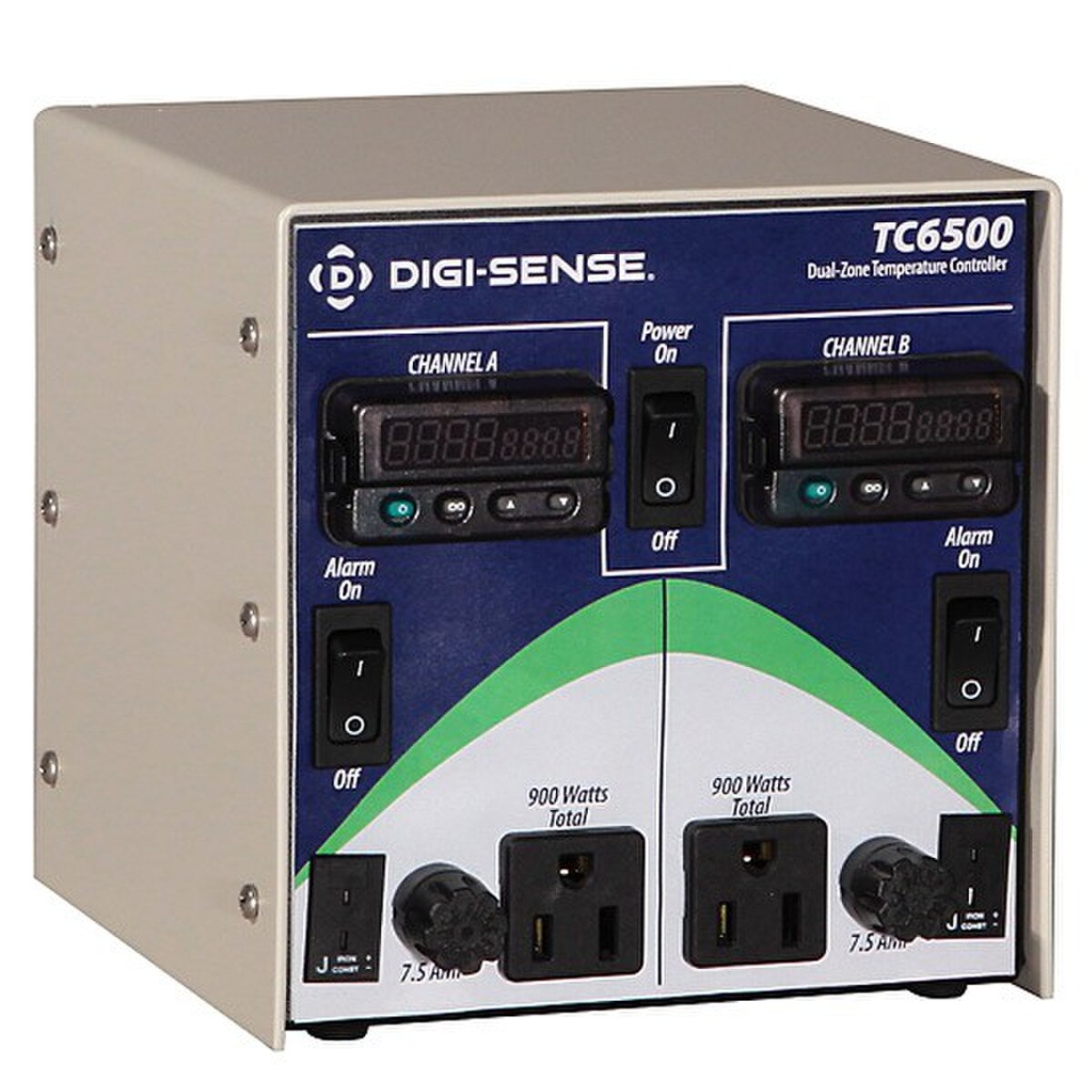

Digi-Sense TC6500 2 Zone Type J Thermocouple Temperature Controller, 120 VAC (each)
These controllers are designed for controlling two independent temperature processes. and features modern control technology that produces greater temperature stability. The space-saving design combines two controllers into one unit to maximize bench space. Each unit displays both the setpoint and process temperature. Auto-tune minimizes setpoint overshoot and features the ability to learn your process producing greater stability. The controller also features an audible alarm function and two panel-mounted receptacles that accept three-prong plugs. This unit comes with a lattice support bracket, which is ideal for mounting to maximize space.
These controllers are designed for controlling two independent temperature processes. and features modern control technology that produces greater temperature stability. The space-saving design combines two controllers into one unit to maximize bench space. Each unit displays both the setpoint and process temperature. Auto-tune minimizes setpoint overshoot and features the ability to learn your process producing greater stability. The controller also features an audible alarm function and two panel-mounted receptacles that accept three-prong plugs. This unit comes with a lattice support bracket, which is ideal for mounting to maximize space.
| Product Type: | Thermocouple Temperature Controller |
| Brand: | Digi-Sense |
| Product Line: | TC6500 |
| Class: | Type J |
| Capacity: | 2 Zone |
| Resolution: | 1°, 1.0° or 1.00° |
| Accuracy: | 0.1% of span, ±1.0°F/°C |
| Temperature Range: | –328 to 2192°F (–200 to 1200°C) |
| Connections: | 1/32 DIN, Thermocouple |
| Power Supply: | 120 VAC, 60Hz |
| Timing Functions: | Alarm |
| Display: | LED |
| Overall Dimensions: | 6 1/4 x 5 7/8 x 6 1/2 inches (155.58 x 149.23 x 165.1 mm) |
| Includes: | Support bracket |
| Notes: | Control Output 1 and 2: SSR |
