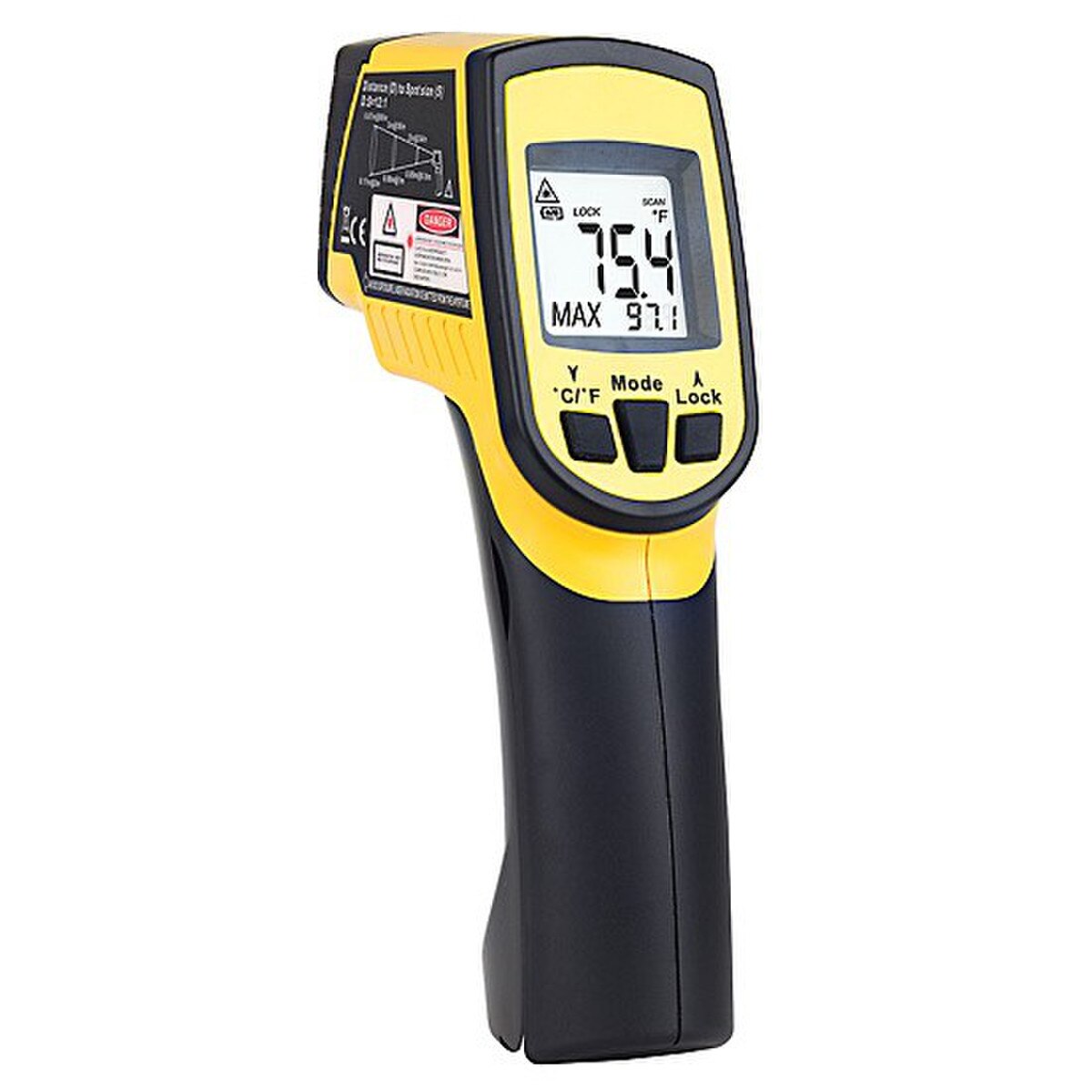

Traceable® 4485TR Circle Laser Infrared Thermometer with Type K Probe; Adjustable Emissivity

Traceable® 4485TR Circle Laser Infrared Thermometer with Type K Probe; Adjustable Emissivity

The Traceable® 4485TR Circle Laser Infrared Thermometer combines noncontact infrared measurement with Type K thermocouple probe capability for industrial, laboratory, HVAC, food processing, maintenance, and quality assurance applications. Featuring adjustable emissivity, circle laser targeting, dual-display operation, and wide temperature ranges, this versatile instrument provides accurate measurements across a variety of materials and operating conditions.

Key Features

• Provides both noncontact infrared and contact Type K thermocouple measurements
• Adjustable emissivity from 0.10 to 1.00 in 0.01 increments
• Circle-dot laser targeting indicates the approximate measurement area
• 12:1 distance-to-spot ratio for accurate targeting
• Infrared temperature range from -60 to 550°C (-76 to 1022°F)
• Accepts Type K probes for measurements up to 1400°C (2552°F)
• Displays minimum, maximum, differential, and average readings
• Programmable high and low temperature alarms
• Dual display shows current temperature and secondary measurement data
• Fast 1-second response time
• Selectable °C and °F display modes
• Backlit display for low-light environments
• Includes Traceable® Certificate from an A2LA-accredited calibration laboratory
• 1-year warranty

Product Details

The 4485TR combines the convenience of noncontact infrared temperature measurement with the flexibility of contact thermocouple monitoring. Users can instantly measure surface temperatures by aiming and pulling the trigger, or connect the included Type K thermocouple probe for direct-contact applications requiring extended temperature ranges.

Adjustable emissivity settings improve accuracy when measuring different surface types, including metals, plastics, painted surfaces, ceramics, food products, and industrial equipment. This flexibility helps produce more reliable readings than fixed-emissivity infrared thermometers.

The circle-dot laser system visually identifies the approximate measurement area, helping users accurately target surfaces and improve measurement confidence. The 12:1 optical ratio enables safe measurements from a distance while maintaining accuracy.

Advanced functions include minimum and maximum tracking, differential temperature calculations, time-weighted averaging, and programmable temperature alarms. The dual-display design allows users to view current temperature alongside alarm settings, emissivity values, probe temperatures, or calculated measurements.

The Type K thermocouple input expands measurement capability to temperatures as high as 1400°C (2552°F), making the instrument suitable for furnaces, ovens, process equipment, manufacturing operations, laboratory testing, and maintenance inspections.

Each thermometer includes an individually numbered Traceable® Certificate documenting traceability to recognized national measurement standards. Guaranteed to have at least one year of calibration remaining on the certificate.

Specifications

• Measurement Type: Infrared Thermometer with Type K Thermocouple Input
• Infrared Temperature Range: -60 to 550°C (-76 to 1022°F)
• Infrared Accuracy: ±2% of Reading or ±2.0°C, Whichever Is Greater
• Infrared Resolution: 0.1° to 999.9°, Then 1°
• Distance-to-Spot Ratio: 12:1
• Emissivity: Adjustable from 0.10 to 1.00
• Sighting System: Circle-Dot Laser
• Laser Classification: Class II
• Response Time: 1 Second
• Temperature Input: Type K Thermocouple
• Included Probe: Type K Beaded Sensor
• Probe Temperature Range: -64 to 1400°C (-83 to 2552°F)
• Display: Dual LCD with Backlight
• Functions: Min/Max, Differential, Average, High Alarm, Low Alarm
• Alarm Type: Visual High and Low Alarms
• Temperature Units: °C / °F Selectable
• Battery: Two AAA Batteries
• Dimensions: 6.75 × 1.875 × 4.75 in.
• Description: Circle Laser Infrared Thermometer with Type K Probe; Adjustable Emissivity
• Warranty: 1 Year

Includes

• Traceable® Certificate
• Type K Beaded Thermocouple Sensor
• Two AAA Batteries

Ideal for industrial maintenance, HVAC diagnostics, manufacturing operations, laboratories, food processing, quality assurance programs, process monitoring, equipment troubleshooting, electrical inspections, and applications requiring both noncontact infrared measurement and contact thermocouple verification.
