Traceable® 8045CP Data Acquisition Software with USB Cable

Traceable® 8045CP Data Acquisition Software with USB Cable

The Traceable® Data Acquisition Software with USB Cable provides a convenient solution for collecting, monitoring, and storing measurement data from compatible Traceable® instruments directly on a Windows® PC. Designed for laboratories, industrial facilities, quality control applications, environmental monitoring, and research environments, this software package enables real-time data collection, alarm management, remote monitoring, and automated reporting from multiple instruments simultaneously.

Key Features

• Compatible with Windows®-based PCs
• Stores readings from up to eight compatible Traceable® instruments simultaneously
• Email notifications for over-range and under-range conditions
• User-selectable recording intervals from 1 to 10,000 seconds
• Background data collection allows continued use of other computer applications
• Remote monitoring through server/client networking capability
• Automatic alarm notifications via email
• Includes USB, serial, and instrument connection cables
• 1-year warranty

More About This Item

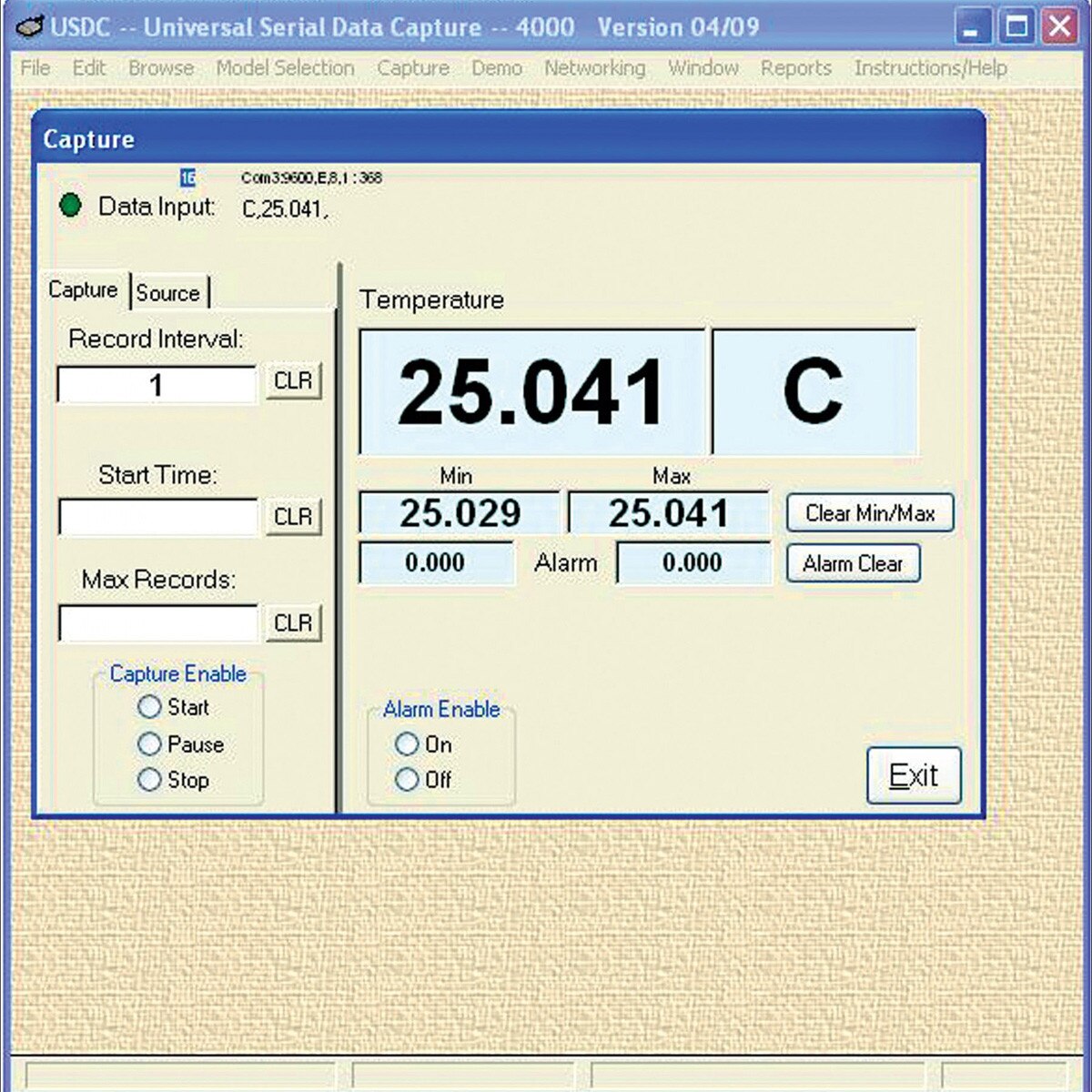

This easy-to-use software enables measurement data from compatible Traceable® instruments to be displayed, recorded, stored, and monitored directly on a computer. Data collection continues automatically in the background, allowing users to work on other applications while monitoring critical measurements.

Built-in networking capabilities allow captured data to be viewed from remote workstations, providing additional flexibility for multi-user environments and centrally monitored facilities. Measurement readings can also be distributed via email at user-defined intervals, providing convenient access to real-time process information.

Users can configure visual and audible alarms or automatically generate email notifications whenever measurements exceed established limits. Installation is straightforward and requires no programming, custom scripting, or manual data entry. Simply connect the supplied cable between the instrument and the computer and begin collecting data.

The software is designed for compatibility with a variety of Traceable® instruments and is well suited for laboratory monitoring, process validation, environmental testing, and quality assurance applications requiring electronic data capture and documentation.

Technical Specifications

• Compatible Instruments: Traceable® Manometers 98766-97, 98766-98, 98766-99, and 98767-00
• Additional Compatibility: Traceable® Conductivity Meter 19601-03 and Thermohygrometer 37950-02
• Maximum Connected Devices: 8 instruments simultaneously
• Recording Interval: 1 to 10,000 seconds
• Alarm Capability: Audible, visual, and email notification
• Remote Monitoring: Server/client network support
• Operating System Compatibility: Windows® 98, Me, NT, 2000, XP, Vista, Windows® 7, Windows® 8, and Windows® 10
• Description: Data Acquisition Software with USB Cable for 98766-97/98/99, 98767-00, 19601-03, and 37950-02
• Warranty: 1 year

Included Accessories

• Software CD
• 6-ft USB cable
• 6-ft serial cable
• Instrument connection cables

This Traceable® Data Acquisition Software package is ideal for laboratories, manufacturing facilities, environmental monitoring programs, research applications, and quality control departments that require automated data collection, alarm notification, and long-term measurement documentation from compatible Traceable® instruments.
