Traceable® 6530TR Digital Barometer
Images are for representation only. Actual product may differ in size, color or options.
Traceable® 6530TR Digital Barometer

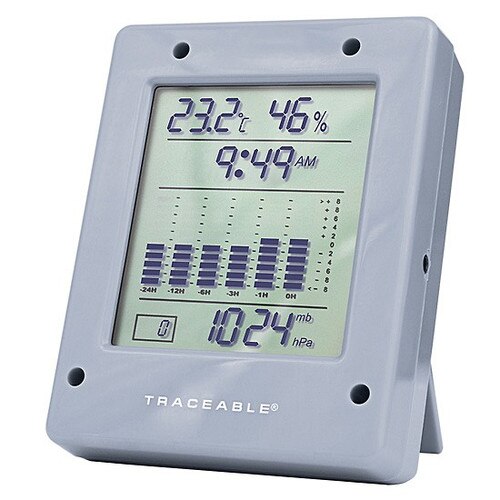

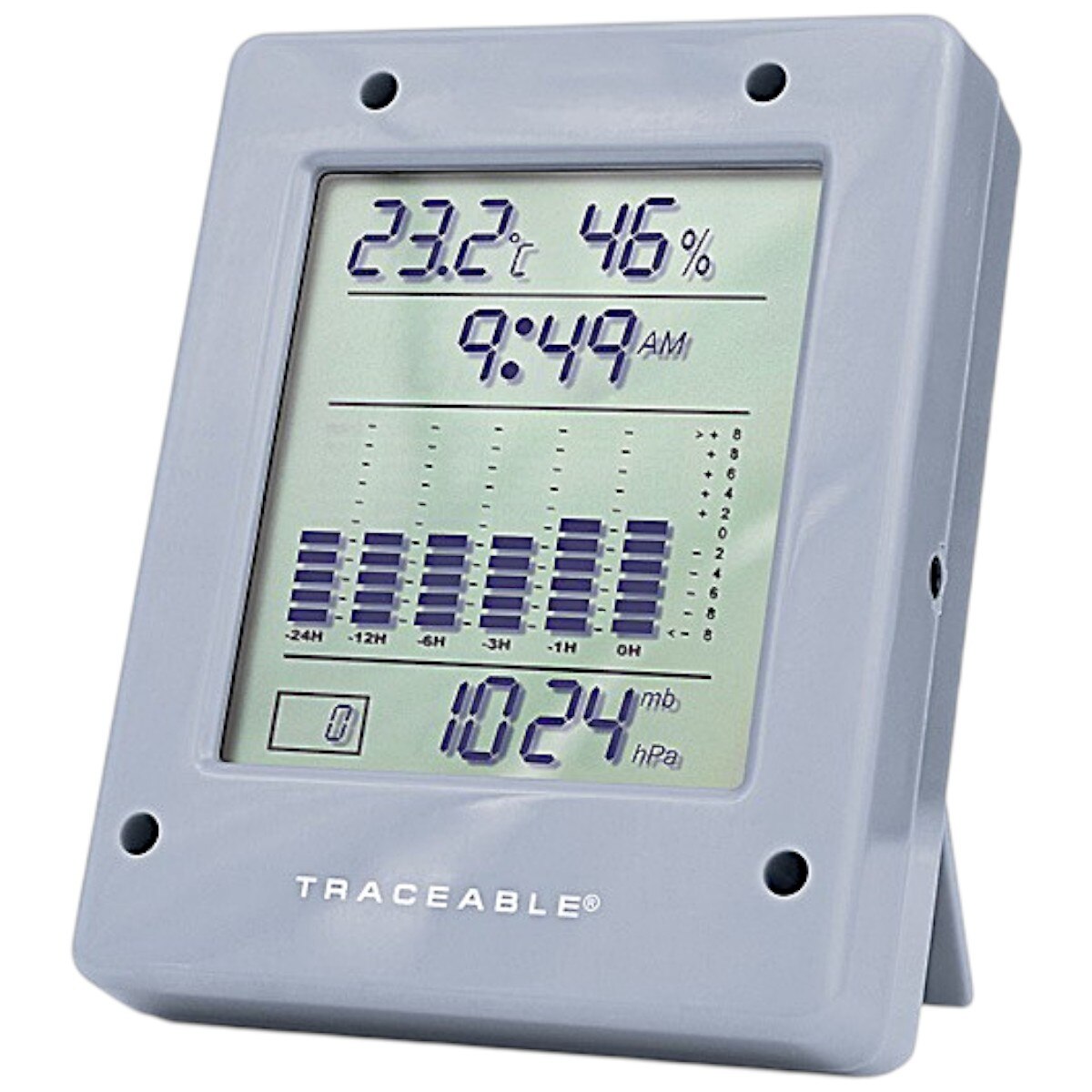

This Traceable® Digital Barometer provides precise monitoring of barometric pressure, temperature, and relative humidity. A large four‑line LCD displays real‑time barometric pressure trends for the past 1 to 24 hours, along with current readings and time. The unit automatically stores hourly Min/Max values for all parameters, and customizable high and low alarm set points provide both audible and visual alerts. Optional data acquisition software enables real‑time streaming and download of readings from up to eight barometers. Each unit is supplied with a NIST‑traceable calibration certificate issued by an A2LA‑accredited ISO/IEC 17025:2017 laboratory.
- Item Number: 68000-49
- Model: 6530TR
- Barometric Pressure Range: 500 to 1030 mbar (14.77 to 30.41 inHg)
- Barometric Pressure Resolution: 1 mbar (0.1 inHg)
- Barometric Pressure Accuracy: ±4 mbar (±0.12 inHg)
- Temperature Range: 32 to 131 °F (0 to 55 °C)
- Temperature Resolution: 0.1°
- Temperature Accuracy: ±0.7 °F (±0.4 °C)
- Humidity Range: 5 to 95% RH
- Humidity Accuracy: ±3% (5–75%), otherwise ±5%
- Display: Four‑line LCD with 1–24 hour barometric trend graph
- Alarms: Customizable high/low audible and visual alerts
- Data Handling: Optional software for real‑time streaming and download

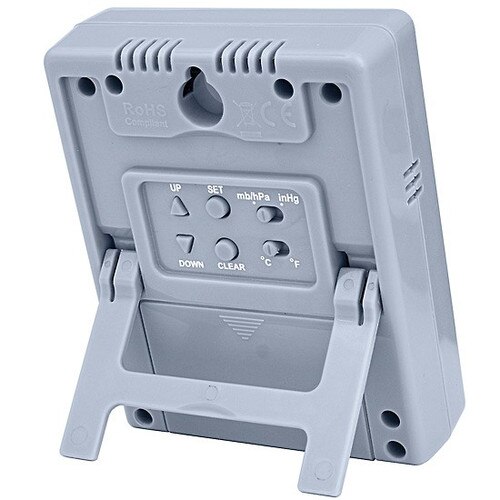

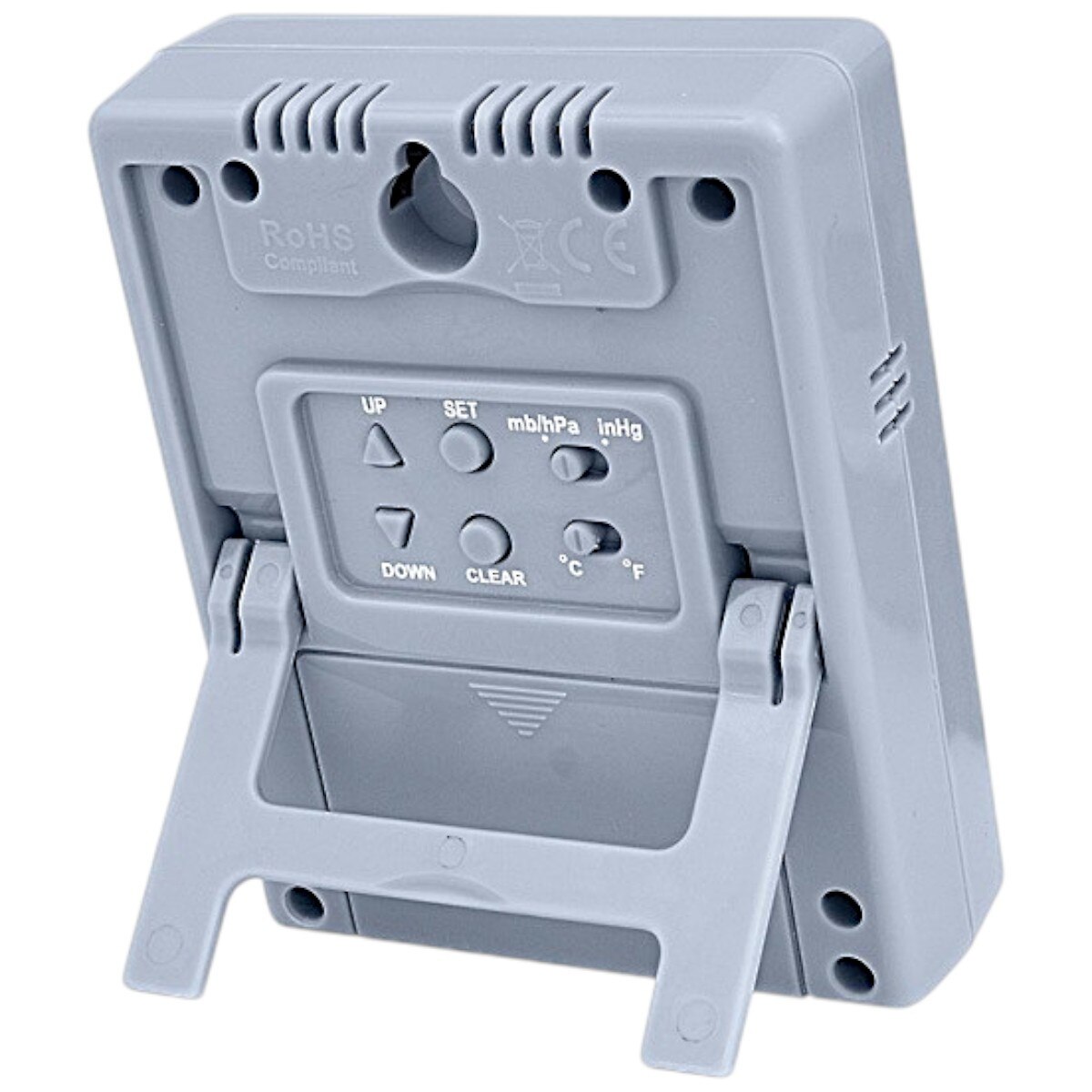

- Included: Traceable® Certificate, wall mount, flip‑open stand, and batteries
- Dimensions: 4 × 3 × 1 in (10.2 × 7.6 × 2.5 cm)
- Power: 3 AA batteries (included)
- Warranty: 1 year
| Product Type: | Digital Barometer |
| Brand: | Traceable |
| Range: | 500 to 1030 millibars (mbar) |
| Resolution: | 1 mbar |
| Accuracy: | ±4 mbar |
| Temperature Range: | 32 to 131ºF and 0 to 55ºC |
| Temperature Resolution: | 0.1° |
| Temperature Accuracy: | ±0.4°C |
| Humidity Range: | 5 to 95% RH |
| Humidity Resolution: | 1% RH |
| Humidity Accuracy: | ±3% RH between 5 to 75%, otherwise ±5% RH |
| Overall Dimensions: | 4 x 3 x 1 inches |
| Includes: | Traceable® Certificate, wall mount, flip open stand and 3 x AAA batteries |
| Notes: | Min/Max Memory, Exportable Data. |
