Cole-Parmer VPS-200 Vacuum Pump Station, 0.37 cfm, 20" Hg; 120 VAC
Images are for representation only. Actual product may differ in size, color or options.
Cole-Parmer VPS-200 Vacuum Pump Station, 0.37 cfm, 20" Hg; 120 VAC

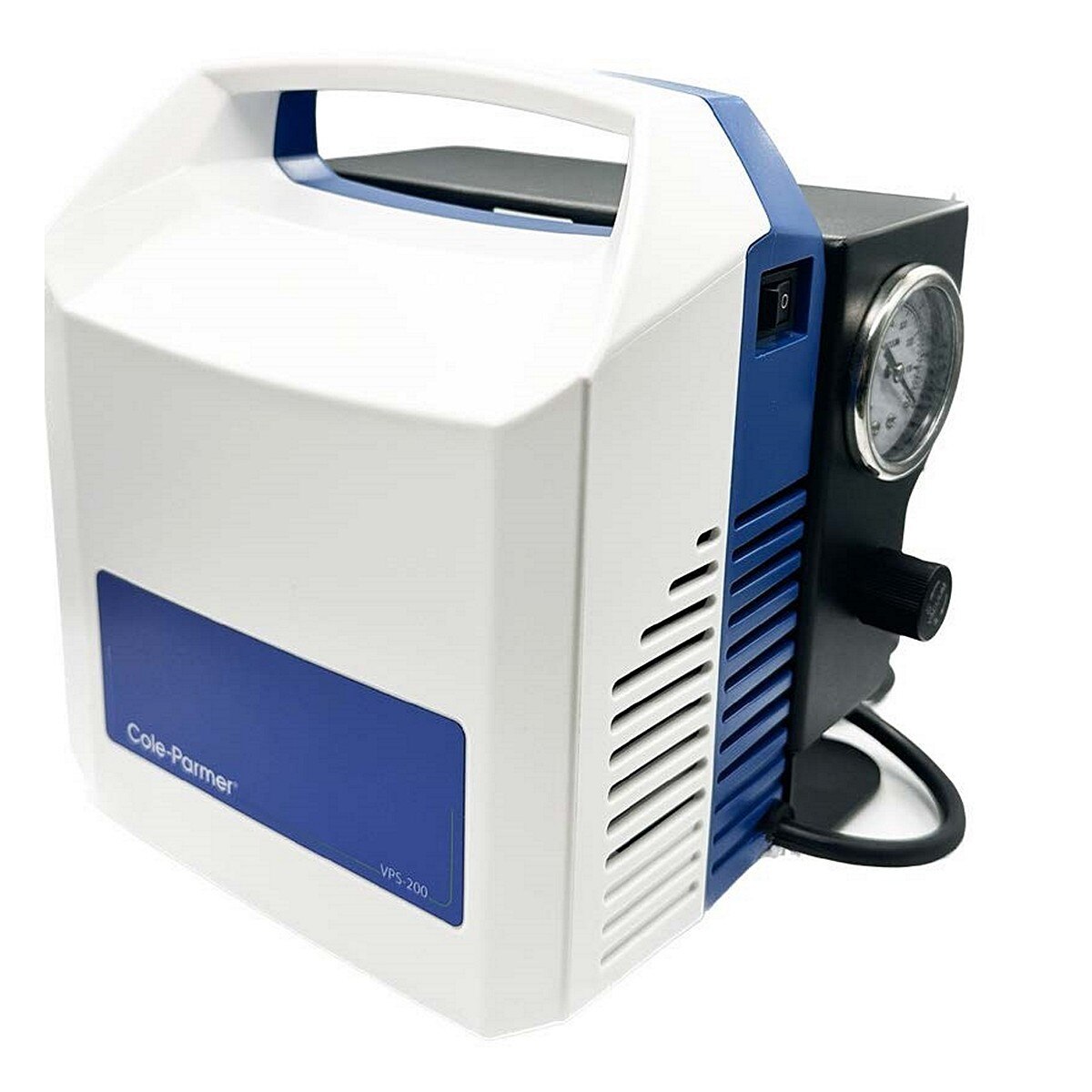

This portable vacuum pump is designed for versatility with a tough, lightweight plastic housing and integral carrying handle. The long-wearing motor delivers performance characteristics suitable for a wide range of applications. Pump features a convenient cord storage compartment in its base.
NOTE: Do not pump liquids or immerse pump. Avoid organic, basic, and acidic vapors.
The vacuum station features a vacuum gauge to measure the level of the system and regulator valve to adjust the vacuum level.
- Economical vacuum pump serves as pressure or vacuum source with an excellent price to performance ratio.
- Low-friction piston runs cool and quiet for a long service life with a consistent performance.
- Free Air Capacity - 0.37 cfm.
- Power - 115 VAC.
- 1 year warranty.
INCLUDES: Six-ft (1.8-m) cord with U.S. standard plug.
| Product Type: | Diaphragm Pump |
| Brand: | Cole-Parmer |
| Product Line: | Air Admiral |
| Capacity: | 0.37 CFM |
| Max Pressure (PSI): | 33 |
| Motor: | 1/11.5 hp (65 W) shaded pole |
| Connections: | 1/4" hose barb |
| Power Supply: | 115 VAC 60 Hz, US Plug |
| Warranty: | 1 year |
| Net Weight: | 6.17 lbs |
| Overall Dimensions: | 23.1 x 17.9 x 21.6 cm (9.1 x 7.0 x 8.5 in) |
| Includes: | Six-ft (1.8-m) cord with U.S. standard plug. |
| Notes: | Max. Vacuum: 541 mm Hg (21.3 in Hg) |
| Working Environment: | 0 to 40 °C (32 to 104 °F); 10 to 90% RH non to condensing |
