Digi-Sense Touchscreen 12 Channel Scanning Data Logging Benchtop Thermocouple Thermometer
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Touchscreen 12 Channel Scanning Data Logging Benchtop Thermocouple Thermometer (each)

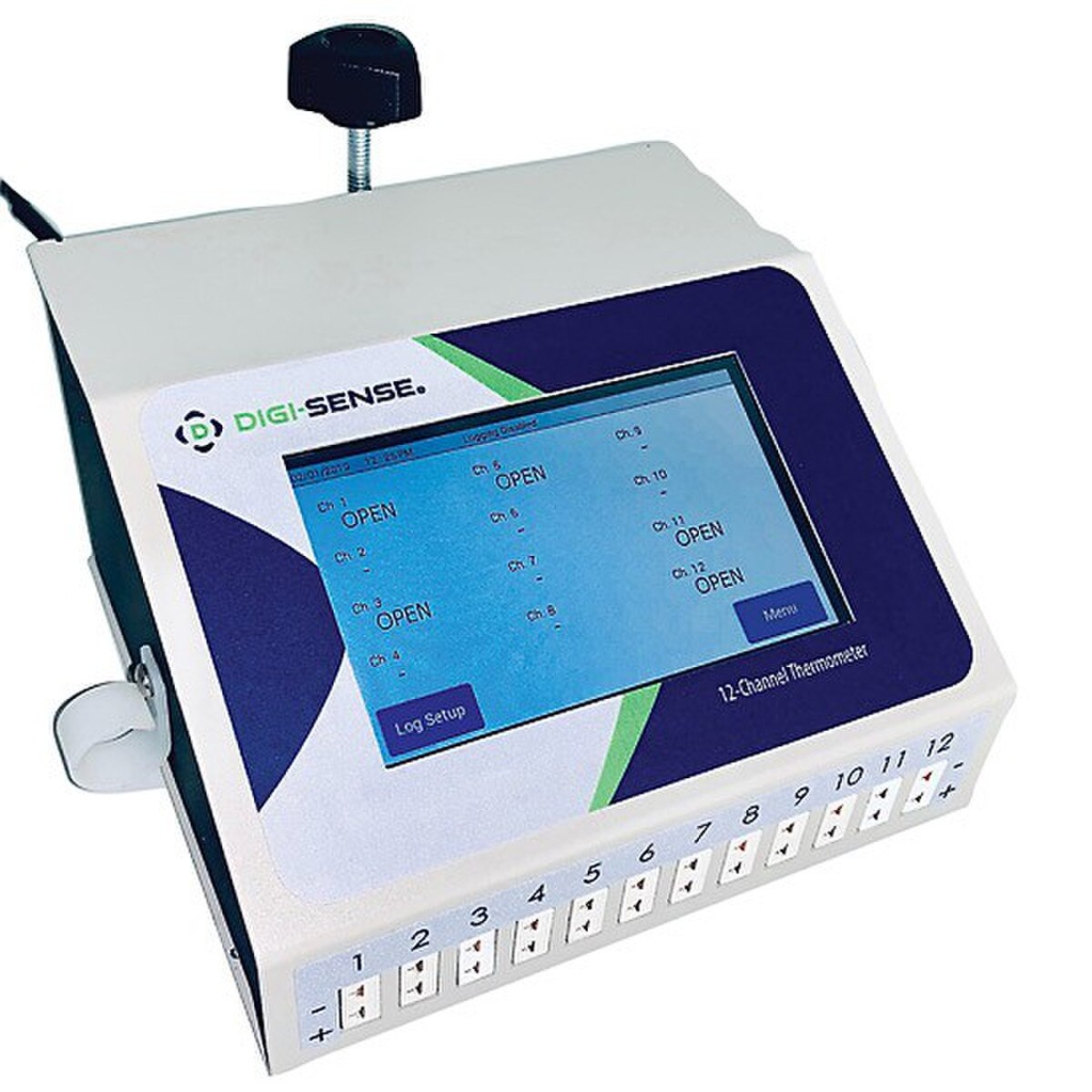

The Digi-Sense® 12-Channel Benchtop Data Logging Thermocouple Thermometer with 5" touchscreen display. All 12 channels are easily viewed from one screen. Each channel can be configure to either J, K, T, B, N, S, R, and E type thermocouples. Alarm conditions can be config-ured for each channel. Data points can be stored in the devices memory and available for down-load in CSV format via the DAQ. Includes DAQ software for real-time visual display of all chan-nels. The thermometer is supplied with a grid-mounting clamp on the back of the device.
Thermocouple temperature probes are sold separately.
What's Included: Data acquisition software, 410-ft (3-m) micro USB cable, 4 GB USB flash drive, cable holders, grid support bracket, and 5-ft (1.5-m) detachable power cord with universal plug adapters.
The Digi-Sense® 12-Channel Benchtop Data Logging Thermocouple Thermometer with 5" touchscreen display. All 12 channels are easily viewed from one screen. Each channel can be configure to either J, K, T, B, N, S, R, and E type thermocouples. Alarm conditions can be config-ured for each channel. Data points can be stored in the devices memory and available for down-load in CSV format via the DAQ. Includes DAQ software for real-time visual display of all chan-nels. The thermometer is supplied with a grid-mounting clamp on the back of the device.
Thermocouple temperature probes are sold separately.
- Each channel is independently programmable with thermocouple type and alarm conditions
- Large 5" full-color touchscreen LCD displays each channel simultaneously
- Log up to 320K data points in 10 log files
- Download or stream data to PC
What's Included: Data acquisition software, 410-ft (3-m) micro USB cable, 4 GB USB flash drive, cable holders, grid support bracket, and 5-ft (1.5-m) detachable power cord with universal plug adapters.
| Product Type: | 12-Channel Data Logging Thermometer |
| Brand: | Digi-Sense |
| Class: | Type J, K, T, S, R, and E |
| Grade: | Thermocouple |
| Capacity: | 12 channels |
| Temperature Range: | -200 to 1768°C (-328 to 3214°F) |
| Temperature Resolution: | 0.1° |
| Temperature Accuracy: | ±1% full-scale or 1°C |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Net Weight: | 4.6 lbs |
| Overall Dimensions: | 6" x 6.5" x 4" (W x H x D) |
| Includes: | Data acquisition software, 410-ft (3-m) micro USB cable, 4 GB USB flash drive, cable holders, grid support bracket, and 5-ft (1.5-m) detachable power cord with universal plug adapters. |
| Notes: | Accepts J,K,T,E,R,S Thermocouples |
