CPI-93631-12
Images are for representation only. Actual product may differ in size, color or options.

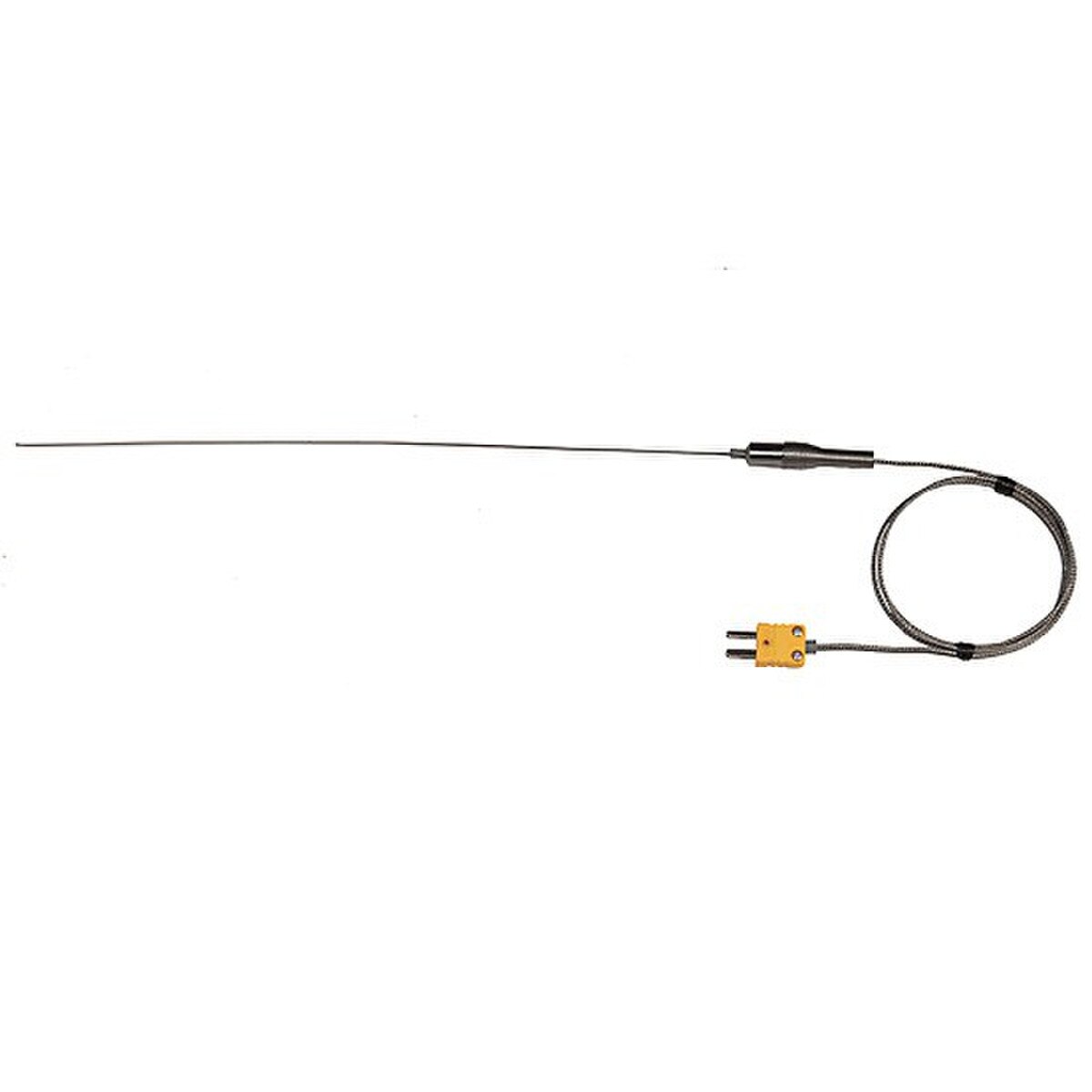

Digi-Sense Type-K Thermocouple Probe, High-Temperature Wire, 12 inch L x 0.04 inch Dia., Ungrounded Junction, 14 Gauge, 3 feet Stainless Steel Armored Fiberglass Cable, Mini ANSI Connector (each)
High-Temperature Thermocouple Probes designed for multiple bends in any environment
High-Temperature Thermocouple Probes designed for multiple bends in any environment
- Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
- Response Time: 0.3 - 1.5 seconds or greater
- Probes are tightly packed with powdered MgO in 12 inch long sheaths
- Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-K |
| Grade: | High-Temperature Wire |
| Material: | Inconel® 600 |
| Temperature Range: | -250 to 1290°F (-150 to 700°C) |
| Temperature Accuracy: | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 12 inches x 0.04 inch diameter |
| Cable Length: | 3 feet |
| Unit Size: | 14 Ga |
| Overall Dimensions: | Sheath: 12 inch length x 0.04 inch diameter; Handle: 1.5 inch length |
| Notes: | Ungrounded Junction |
